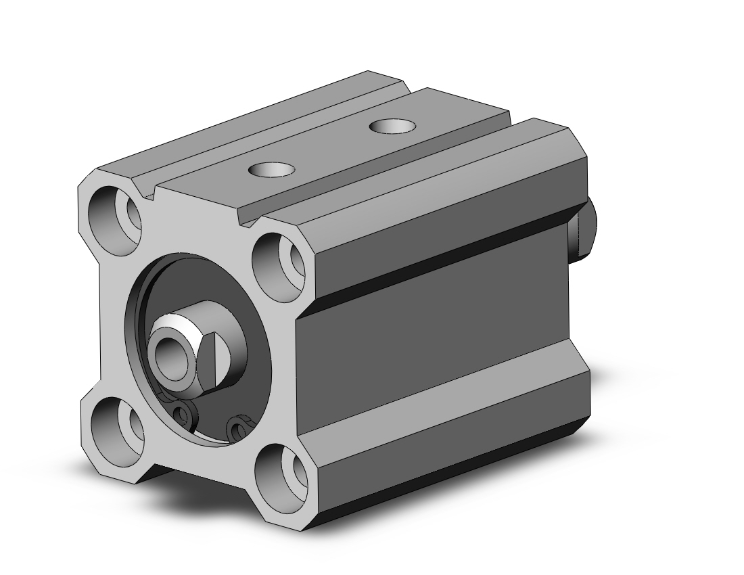

SMC VALVES CQ2WB16-10D Compact Cylinder, 16 mm Size, Double Rod
Get it by Tuesday, Sep 1
€44.75 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Compact Cylinder |
| Bore Dia. | 16 mm |
| Compact Cylinder Type | Standard |
| Cushion Type | Not Available |
| Max. Operating Pressure | 1 MPa |
| Min. Operating Pressure | 0.07 MPa |
| Mounting Type | Through Hole |
| Operating Pressure | 0.07 MPa to 1 MPa |
| Operating Temp. | -10°C to +70°C |
| Overall Length | 53 mm |
| Piston Action | Double Acting |
| Port Size | M5 x 0.8 |
| Pull Force @ 100 Psi | 106N |
| Rod Size/thread | M6 x 1 Female ISO |
| Rod Type | Double Rod |
| Stroke | 10 mm |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 7.62 |
