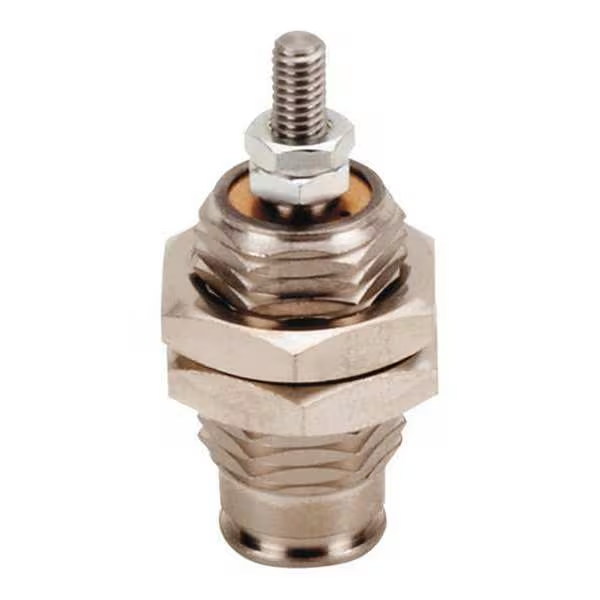

SMC VALVES CJPB4-5 Round Body Cylinder
Get it by Tuesday, Aug 25
€14.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Round Body Cylinder |
| Body Material | Brass |
| Bore Dia. | 4 mm |
| Cylinder Tube Inside Dia. | 6 |
| Material Of Gasket | NBR |
| Max. Operating Pressure | 0.7 MPa |
| Min. Operating Pressure | 0.3 MPa |
| Mounting Type | Panel |
| Operating Pressure | 0.2 MPa to 0.7 MPa |
| Operating Temp. | -10°C to +70°C |
| Operating Temp. Range | -10°F to +70°F |
| Overall Height | 11.5 mm |
| Overall Length | 23.5 mm |
| Piston Action | Single Acting Spring Return |
| Port Gender | Female |
| Port Size | M5 x 0.8 |
| Proof Pressure @ Mpa | 1 |
| Pull Force @ 100 Psi | 1N |
| Push Force @ 100 Psi | 6N |
| Rod End Bracket | Without Thread |
| Rod Gender | Male |
| Rod Operation Method | Single Rods |
| Rod Size | 2 mm |
| Rod Size/thread | 2 Mm Rod, M2 X 0.4 ISO Thread |
| Rod Type | Single Rod |
| Stroke | 10 mm |
| Type Of Mount Support | Panel-Mount Type |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 4.06 |
| Ship length (cm) | 21.59 |
| Ship width (cm) | 4.06 |
