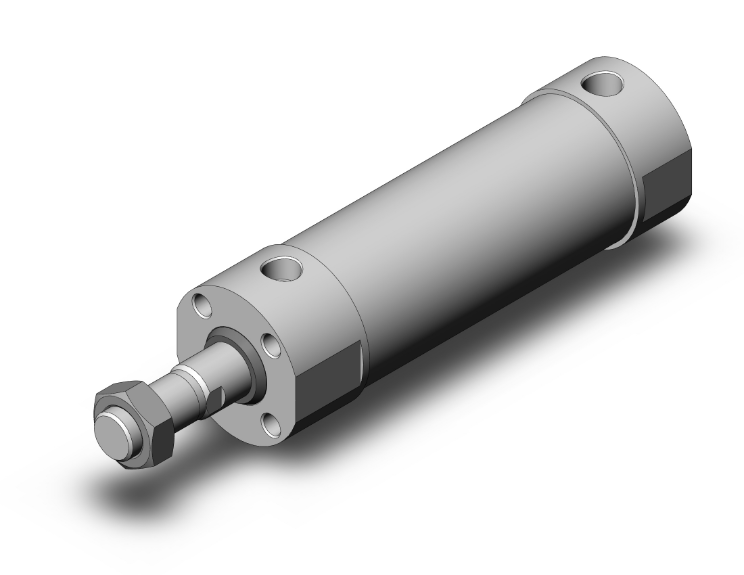

SMC VALVES CG5BN50TNSR-75 Cylinder, 50 mm Size, Double Acting
Get it by Monday, Aug 17
€156.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Body Material | Stainless Steel |
| Bore Dia. | 50 mm |
| Cushion Type | Rubber Bumper |
| Cylinder Size | Standard |
| Min. Operating Pressure | 0.05 MPa |
| Mounting Type | Basic Mount |
| Operating Pressure | 0.05 MPa to 1 MPa |
| Operating Temp. | -10°C to +70°C |
| Overall Length | 242 mm |
| Overall Width | 58 mm |
| Piston Action | Double Acting |
| Port Gender | Female |
| Port Size | 0.25 NPT |
| Port Thread Standard | NPT |
| Rod Gender | Male |
| Rod Size/thread | M18 x 1.5 Male ISO |
| Rod Thread Standard | ISO |
| Rod Type | Single Rod |
| Series | CG5 Series |
| Stroke | 75 mm |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 7.62 |
Product Variants
| Product | Model | Type | Price | |
|---|---|---|---|---|
 |
CDG5EN20SR-50-G5BAL | - | €243.41 | |
 |
CG5EN20SR-50 | - | €76.56 | |
 |
CDG5BA32TNSV-125 | - | €151.99 | |
 |
CDG5EA32TNSR-50 | - | €134.64 | |
 |
CDG5BA32SV-360 | - | €224.40 | |
 |
CDG5BA63TNSV-500 | - | €551.10 | |
|
CG5BA20TNSV-32 | - | €97.74 |
