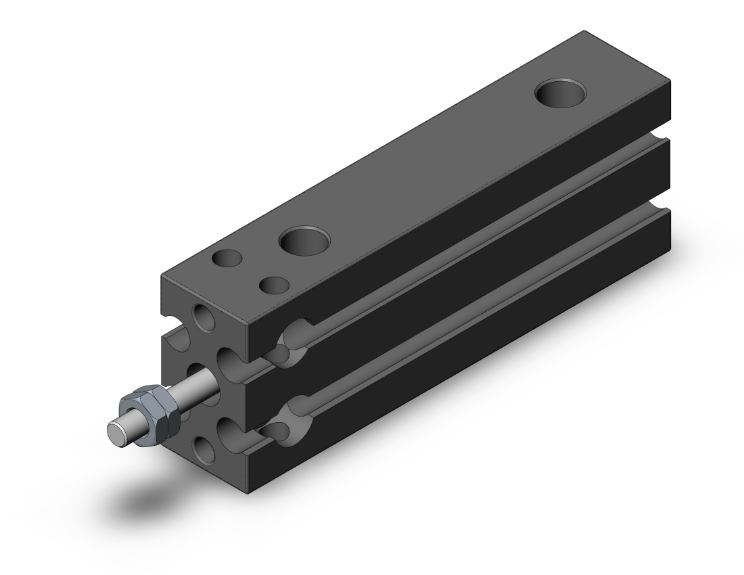

SMC VALVES CDU6-30D Compact Cylinder, 6 mm Size, Double Acting Auto Switcher
Item: AM8ZVGModel: CDU6-30D
7 In Stock
Ships within 2 days via
€40.81 /unit
This product can only be shipped in multiples of 2Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compact Cylinder |
| Auto Switches | M9B |
| Bore Dia. | 6 mm |
| Cushion Type | Rubber Bumper |
| Cylinder Tube Inside Dia. | 6 |
| Included Options | Switch Ready, Magnetized |
| Lead Wire Length | 1m |
| Main Body Shape | Block Shape |
| Max. Operating Pressure | 0.7 MPa |
| Min. Operating Pressure | 0.12 MPa |
| Mounting Type | Through Hole |
| Operating Pressure | 0.12 MPa to 0.7 MPa |
| Operating Temp. | -10°C to +60°C , -10°C to +70°C |
| Overall Height | 13 mm |
| Overall Length | 76 mm |
| Overall Width | 22 mm |
| Port Gender | Female |
| Port Size | M5 x 0.8 |
| Pull Force @ 100 Psi | 14.8N |
| Push Force @ 100 Psi | 19.8N |
| Rod Gender | Male |
| Rod Operation Method | Single Rods |
| Rod Size/thread | M3 x 0.5 Male ISO |
| Rod Type | Single Rod |
| Stroke | 30 mm |
| The No. Of The Switches | 2 |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 7.62 |
