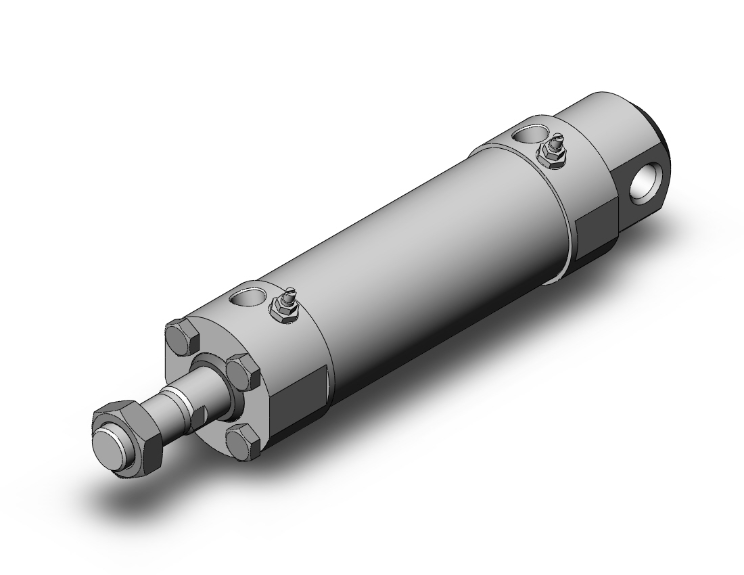

SMC VALVES CDG5EA50SV-75 Cylinder, 50 mm Size, Double Acting Auto Switcher
Get it by Tuesday, Aug 18
€295.02 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Body Material | Stainless Steel |
| Bore Dia. | 50 mm |
| Cushion Type | Air Cushion |
| Cylinder Size | Standard |
| Included Options | Switch Ready, Magnetized |
| Min. Operating Pressure | 0.05 MPa |
| Mounting Type | Clevis Mount |
| Operating Pressure | 0.05 MPa to 1 MPa |
| Operating Temp. | -10°C to +60°C |
| Overall Height | 79.8 mm |
| Overall Length | 299 mm |
| Overall Width | 106.5 mm |
| Piston Action | Double Acting |
| Port Gender | Female |
| Port Size | 0.25 BSPT |
| Port Thread Standard | BSPT |
| Rod Gender | Male |
| Rod Size/thread | M18 x 1.5 Male ISO |
| Rod Thread Standard | ISO |
| Rod Type | Single Rod |
| Series | CG5 Series |
| Stroke | 75 mm |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 7.62 |
