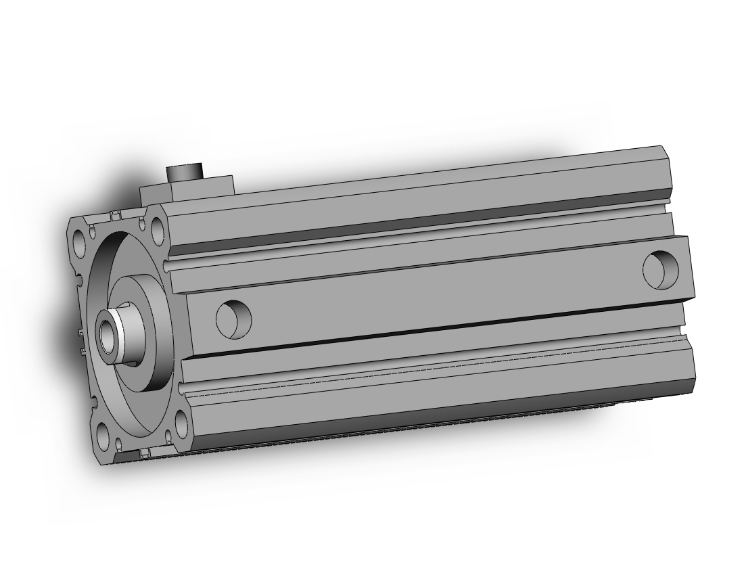

SMC VALVES CBQ2A63-100DC-RN Compact Cylinder, 63 mm Size, Double Acting
Get it by Tuesday, Aug 25
€248.09 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Compact Cylinder |
| Auto Switches | Without Auto Switch |
| Body Option | Male Rod End |
| Cylinder Operation Method | Double Acting |
| Cylinder Tube Inside Dia. | 80 |
| End Locking | Presence |
| Main Body Shape | Block Shape |
| Manual Release Method | Non Lock Type |
| Operating Pressure | 0.05 MPa to 1 MPa |
| Port Thread Type | NPT |
| Rod Operation Method | Single Rods |
| Stroke | 100 mm |
| Support Bracket | Both Ends Tapped |
| Valves | No |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 7.62 |
Product Variants
| Product | Model | Type | Price | |
|---|---|---|---|---|
 |
CDBQ2D63-15DCM-RN | - | €224.33 | |
 |
CDBQ2B40-50DCM-RN | - | €160.78 | |
 |
CDBQ2B63-50DCM-RN | - | €227.97 | |
 |
CDBQ2F32-40DC-HL-J79SDPC | - | €314.10 | |
 |
CDBQ2D63-20DCM-HN-M9BWZ | - | €374.94 | |
 |
CDBQ2A40-75DCM-HN | - | €172.59 | |
 |
CDBQ2D100TN-25DCM-RN | - | €435.53 |
