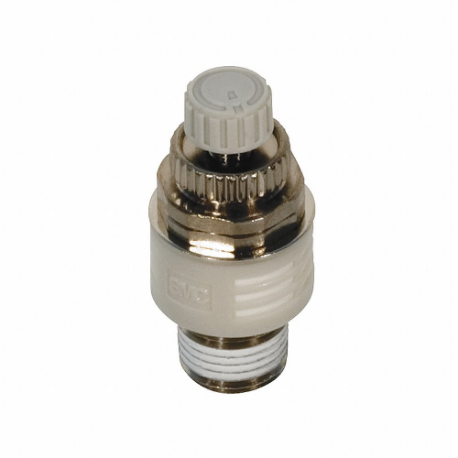

SMC VALVES ASN2-04 Exhaust Port Flow Control, 1/2 Inch R Valve Port Size, 0 To 145 PSI
Item: CU3AKXModel: ASN2-04Cross Ref: 4DGJ1
7 In Stock
Ships within 2 days via
5.00% off
€23.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Exhaust Port Flow Control |
| Adjustment | Thumb Screw |
| Adjustment Method | Thumbwheel |
| Allowable Pressure - Maximum | 218 psi |
| Application | Motoring Air Flow |
| Body Material | Brass |
| Diameter - Maximum | 1 3/16" |
| Gasket Material | Rubber |
| Handle Material | PBT |
| Includes Seal | No |
| Includes Silencer | Silencer Included |
| Manufacturer Series | ASN2 Series |
| Max. Flow Rate | 1500 LPM |
| Maximum Flow Rate | 1500 LPM |
| Needle Material | Brass |
| Operating Pressure - Maximum | 145 psi |
| Operating Temperature - Maximum | 140°F |
| Operating Temperature - Minimum | 23°F |
| Overall Length | 2 1/16" |
| Pressure Range | 0 psi to 145 psi |
| Silencer Material | Pva Sponge |
| Standards | RoHS |
| Temp. Range | +23°F to +140°F |
| Valve Port Connection Type | Unf |
| Valve Port Gender | Male |
| Valve Port Size | 1/2" |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Body Material | Pressure Range | Adjustment | Temp. Range | Price | |
|---|---|---|---|---|---|---|
| ASN2-N02-S | Brass | 0 psi to 145 psi | Thumb Screw | +23°F to +140°F | €12.64 | |
| ASN2-02 | Brass | 0 psi to 145 psi | Thumb Screw | +23°F to +140°F | €11.82 | |
| ASN2-N01-S | Brass | 0 psi to 145 psi | Thumb Screw | +23°F to +140°F | €10.49 | |
| ASN2-01 | Nickel Plated Brass | 0 psi to 145 psi | Thumb Screw | +23°F to +140°F | €9.64 | |
| ASN2-03 | Brass | 0 psi to 145 psi | Thumb Screw | +23°F to +140°F | €16.10 | |
| ASN2-M5 | Brass | 0 psi to 145 psi | Thumb Screw | +23°F to +140°F | €8.01 | |
| ASN2-U10/32 | Brass | 0 psi to 145 psi | Thumb Screw | +23°F to +140°F | €8.16 |
