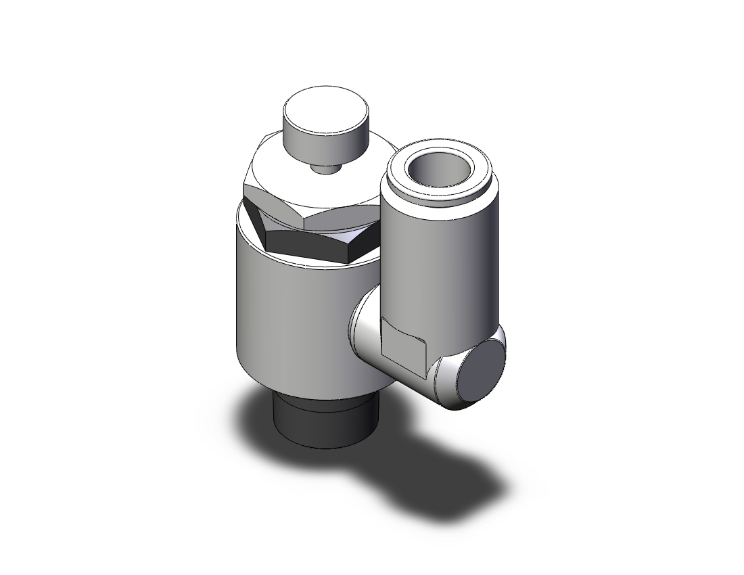

SMC VALVES AS3311F-N02-08S Flow Controller, 1/4 Inch Size, Standard N Port
Get it by Tuesday, Aug 25
€19.47 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flow Controller |
| Body Material | Brass, Pbt |
| Body Size | 0.375 Standard |
| Flow Coefficient Cv Flow Factor Kv | 12 sq. mm |
| Max. Operating Pressure | 1 MPa |
| Metering | Meter In |
| Min. Operating Pressure | 0.1 MPa |
| Operating Medium | Air |
| Operating Pressure | 0.1 MPa to 1 MPa |
| Operating Temp. | -5°C to +60°C |
| Overall Height | 39.7 mm |
| Overall Length | 49.5 mm |
| Overall Width | 23 mm |
| Piping Type | Universal |
| Port Connection Type | Push To Connect |
| Seal Material | Nitrile |
| Thread Standard | NPT |
| Tube Outside Dia. | 8 mm |
| Valve Function | Needle |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Body Size | Connection Dia. | Flow Rate | Operating Pressure | Overall Width | Overall Height | Type | Applicable Tube O.d. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AS1200-M5 | M3, M5 Standard | - | - | - | - | - | Speed Controller | - | €16.75 | |
 |
AS3200-03 | 0.375 Standard | 3/8" | - | - | - | - | Speed Controller | - | €28.77 | |
 |
AS2200-02 | 0.125, 0.5 Standard | 1/4" | - | - | - | - | Speed Controller | - | €20.47 | |
 |
NAS3301F-N02-11S | - | - | - | - | - | - | - | - | €19.67 | |
 |
AS2050F-06 | - | - | - | - | - | - | - | - | €24.71 | |
 |
AS2000-N01 | 0.375 Standard | 3/8" | - | 0.05 MPa to 1 MPa | 16 mm | 54.5 mm | Speed Controller | - | €13.54 | |
 |
AS1201F-M5-06 | M3, M5 Standard | - | - | 0.1 MPa to 1 MPa | 9.6 mm | 22.9 mm | - | - | €12.44 |
