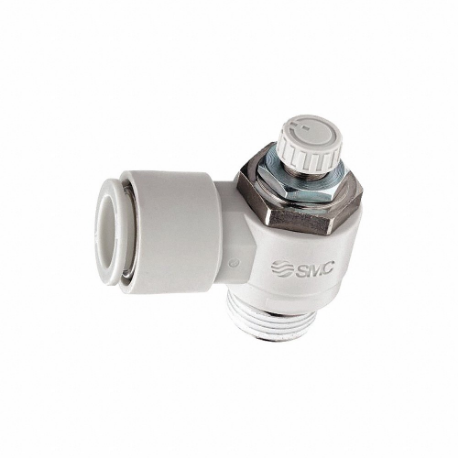

SMC VALVES AS3201F-03-10S Speed Control Valve, Bspt X Tube, 3/8 Inch Port Size, 10 mm Tube Size, Out Flow
Item: CU3AXVModel: AS3201F-03-10SCross Ref: 4DGU7
7 In Stock
Ships within 2 days via
10.00% off
€18.18 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Speed Control Valve |
| Adjustment | Screw |
| Adjustment Type | Screw |
| Air Cylinder Connection | 3/8" BSPT |
| Air Line Connection | 10 mm Push To Connect Tube |
| Body Material | Stainless Steel |
| Body Material Finish | Nickel Plated |
| Connection Type | BSPT x Tube |
| Fitting Style | Elbow |
| Maximum Flow Rate | 32.5 CFM |
| Maximum Operating Pressure | 145 psi |
| Maximum Operating Temperature | 60°C |
| Metering Direction | Meter Out |
| Minimum Operating Pressure | 14.5 psi |
| Minimum Operating Temperature | -5°C |
| Pressure Range | 14.5 psi to 145 psi |
| Seal Material | NBR |
| Standards | RoHS |
| Temp. Range | +23°F to +140°F |
| Valve Body Material | Nickel Plated Brass |
| Valve Body Size | 3/8" |
| Valve Flow | Out |
| Valve Style | Elbow |
| Valve Tube Size | 10 mm |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Adjustment | Valve Body Material | Valve Flow | Valve Style | Connection Type | Valve Tube Size | Valve Port Type | Pressure Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| ASV510F-04-10S | Screw | Nickel Plated Brass | Out | TEE | BSPT x Tube | 10 mm | - | 14.5 psi to 145 psi | €28.27 | |
| ASV510F-04-12S | Screw | Nickel Plated Brass | Out | TEE | BSPT x Tube | 12 mm | - | 14.5 psi to 145 psi | €28.27 | |
| ASV410F-02-10S | Screw | Nickel Plated Brass | Out | TEE | BSPT x Tube | 10 mm | - | 14.5 psi to 145 psi | €25.85 | |
| ASV510F-02-12S | Screw | Nickel Plated Brass | Out | TEE | BSPT x Tube | 12 mm | - | 14.5 psi to 145 psi | €27.43 | |
| ASV310F-02-06S | Screw | Nickel Plated Brass | Out | TEE | BSPT x Tube | 6 mm | - | 14.5 psi to 145 psi | €22.88 | |
| ASV310F-02-08S | Screw | Nickel Plated Brass | Out | TEE | BSPT x Tube | 8 mm | - | 14.5 psi to 145 psi | €23.03 | |
| ASV410F-01-10S | Screw | Nickel Plated Brass | Out | TEE | BSPT x Tube | 10 mm | - | 14.5 psi to 145 psi | €25.67 |
