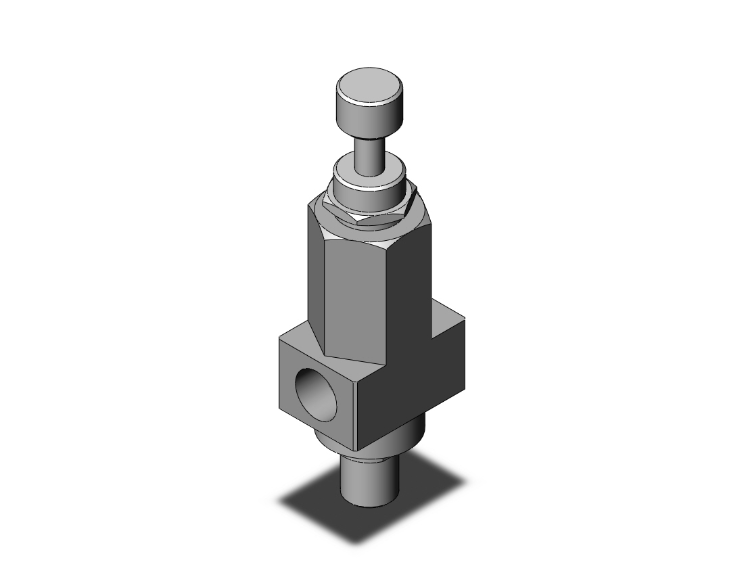

SMC VALVES ARJ310-N01 Regulator, 1/8 Inch Standard
Item: AL9TGZModel: ARJ310-N01
7 In Stock
Ships within 2 days via
€30.15 /unit
This product can only be shipped in multiples of 3Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Regulator |
| Accessory Type | Not Available |
| Control Side/connection Dia. | 0.125 |
| Fluid Compatibility | Air |
| Max. Operating Pressure | 116 psi |
| Max. Operating Temp. | 60°C |
| Max. Set Pressure | 123 psi |
| Min. Set Pressure | 7.3 psi |
| Operating Temp. | -5°C to +60°C |
| Port Gender | Female |
| Proof Pressure | 174 psi |
| Regulator Pressure Boosting Valve | Regulator |
| Regulator Type | Standard |
| Reverse Flow Function | No |
| Set Pressure | 0.2 MPa to 0.7 MPa , 7.3 psi to 123 psi |
| Supply Side Connection Dia. | 0.125 |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 10.16 |
Product Variants
| Product | Model | Set Pressure | Size Of Body | Body Size | Port Size | Proof Pressure | Max. Operating Pressure | Control Side/connection Dia. | Max. Set Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AR20-02BG | - | - | - | - | - | - | - | - | €34.52 | |
|
AR30K-N03H-Z | - | - | - | - | - | - | - | - | €30.29 | |
 |
AW20-N02CH-CZ | - | - | - | - | - | - | - | - | €57.29 | |
 |
AMR6000-10 | - | - | - | - | - | - | - | - | €676.30 | |
 |
ARBQ5000-00-B-1 | - | - | - | - | - | - | - | - | €154.84 | |
|
ARBY5000-00-P-2 | - | - | - | - | - | - | - | - | €119.02 | |
 |
ARJ1020F-M5-06 | 0.05 MPa to 0.2 MPa | - | 10 mm | - | 174 psi | 116 psi | 6 | 101.5 psi | €24.78 |
