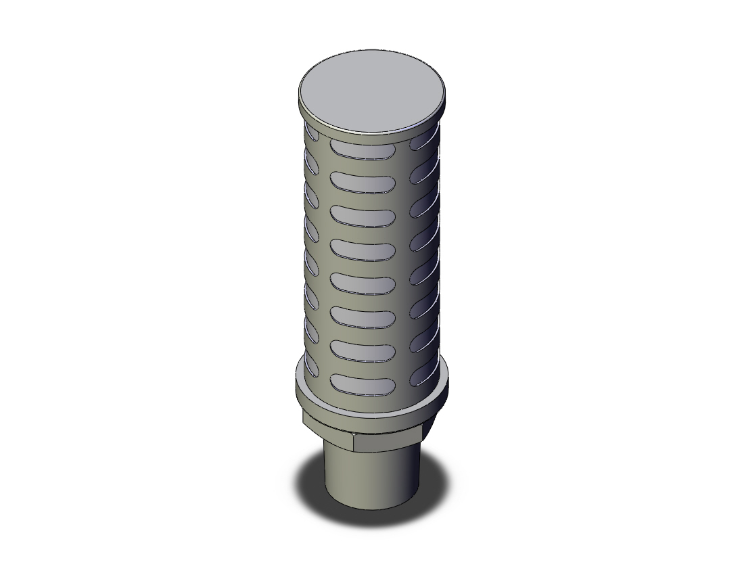

SMC VALVES AN800-N14 Silencer, 1 1/2 Inch Size, Standard N Port
€47.35 /unit
This product can only be shipped in multiples of 2Request a Quote
Payment
Delivery
Product Specifications:
| Item | Silencer |
| Body Size | 900 |
| Effective Sectional Area Class | Up To 1000 Sq. mm |
| Element Material | Sound Absorbing Resin |
| Flow Coefficient | 960 sq. mm |
| Length A | 256 mm |
| Main Body Material 1 | Aluminum |
| Mounting Thread Nominal | 2 |
| Operating Medium | Air |
| Operating Temp. | 41°F to 140°F |
| Outside Dia. | 86 |
| Overall Height | 217 mm |
| Pipe Connection Port Type | NPT |
| Recommended Flow Ratem3/min (anr) | 80 cu. m/min. Or Less |
| Type | Retainer Pin, Stopper Set |
Product Variants
| Product | Model | Overall Height | Flow Coefficient | Element Material | Length A | Mounting Thread Nominal | Body Size | Silencing Effect (db) | One-touch Fitting Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AN110-01 | 38 mm | 5 sq. mm | Copper Type Sintering | 15.5 mm | M5 x 0.8 | - | 18 dBA | - | €5.34 | RFQ
|
 |
AN40-N04 | 68 mm | 35 sq. mm | Sound Absorbing Resin | 45 mm | 1/4" | 20 | - | - | €8.44 | RFQ
|
 |
AN101-01 | 22.5 mm | 5 sq. mm | Copper Type Sintering | 15.5 mm | M5 x 0.8 | - | 18 dBA | - | €3.56 | RFQ
|
 |
AN101-N01 | 22.5 mm | - | - | - | - | - | - | - | €3.56 | RFQ
|
 |
AN120-M5 | 17 mm | 1 sq. mm | Copper Type Sintering | 9 mm | M3 x 0.5 | - | 13 dBA | - | €3.12 | RFQ
|
 |
AN202-02 | 64 mm | 90 sq. mm | Sound Absorbing Resin | 95 mm | 1/2" | 402 | - | - | €8.07 | RFQ
|
 |
AN202-N02 | 64 mm | 90 sq. mm | Sound Absorbing Resin | 95 mm | 1/2" | 402 | - | - | €8.07 | RFQ
|
