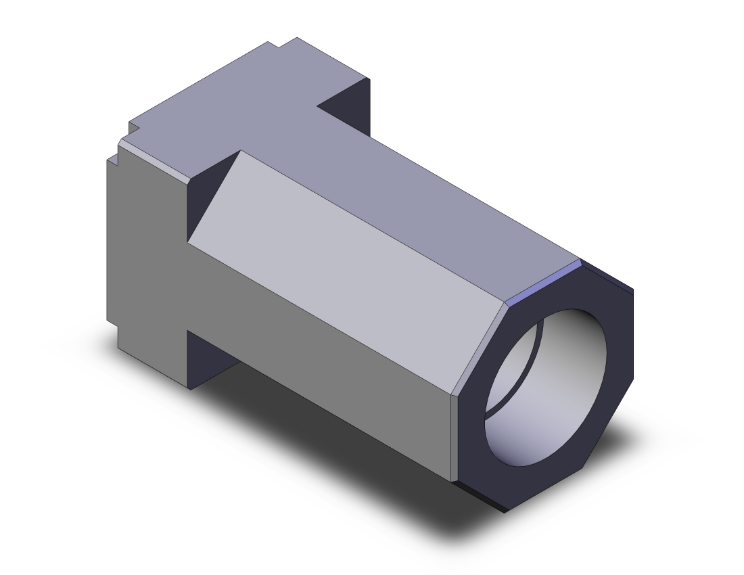

SMC VALVES AK6000-N10 Check Valve
€58.60 /unit
This product can only be shipped in multiples of 2Request a Quote
Payment
Delivery
Product Specifications:
| Item | Check Valve |
| Action | Direct |
| Actuation | Direct Acting Pneumatic |
| Body Material | Aluminum Die Casted |
| Effective Sectional Area (range) | Up To 30 Sq. mm |
| Flow Coefficient Cv Flow Factor Kv | 230 sq. mm |
| Main Body Shape | Straight |
| No. Of Port | 2 |
| Operating Pressure | 0.02 MPa to 1 MPa |
| Operating Temp. | -5°C to +60°C |
| Output Side Port Type A | Female Thread |
| Overall Length | 95 mm |
| Overall Width | 50 mm |
| Piping Type | Inline |
| Port Gender | Female |
| Seal Material | Nitrile Rubber |
| Sonic Conductance | 5.5 |
| Type | Standard |
