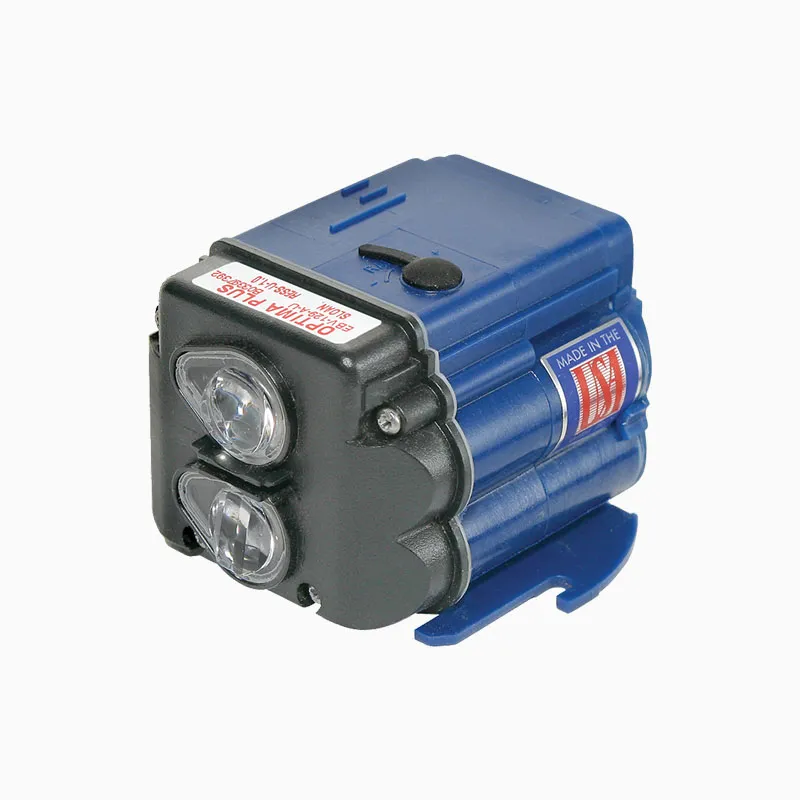

SLOAN 3325450 EBV-129-A-C Electronic Module Toilets

Sloan EBV129A-C electronic module is suitable for detecting the presence and triggers a hands-free flush, reducing the need for physical contact with flush handles or buttons. It is used in commercial, offices and institutional restroom facilities especially those in high-traffic areas where sanitation and water conservation are paramount.

Features:

• It features precise sensor technology to accurately detect user presence, ensuring a reliable and touchless flushing experience.
• This electronic module has durable plastic construction for lightweight and lightweight.
• It is equipped with batteries ensuring continuous operation without complex wiring or power supply adjustments, simplifying installation and maintenance.
• This electronic module is equipped with a rubber plug for a range adjustment screw hole enabling precise range adjustment for sensor sensitivity.

Frequently Asked Questions:

Q. What factors should be considered when choosing a pressure transmitter?

A. Major factors include the desired pressure range, compatibility with the measured media (liquid or gas), environmental conditions and required output signal to ensure it meets the specific application requirements.

Q. How to adjust the flash range of Sloan EBV129A-C electronic module toilets?

A.

• Loosen the two Screws on top of the unit.
• Remove the override button.
• Remove the rubber plug from the top of the electronic sensor module to uncover the potentiometer.
• Check the range by stepping toward the unit until the red light flashes, indicating the sensor's maximum detection limit.
• Adjust the range potentiometer screw located on top of the sensor module a few degrees clockwise to increase the range or a few degrees counterclockwise to decrease the range. Repeat this adjustment until the desired range is achieved.
• When the range adjustment is satisfactory, replace the rubber plug.
• Reinstall the override button and tighten the two screws on top of the unit.

Q. How to replace batteries in this Sloan EBV129A-C electronic module toilets?

A.

• Loosen the two (2) screws on top of the unit.
• Remove the complete cover assembly.
• Lift the sensor module from its plate. Unplug the electrical connector from the battery compartment cover.
• Loosen the retaining screw on the battery compartment cover and remove the battery compartment cover.
• Install four (4) Alkaline AA-Size batteries.
• Install the battery compartment cover and secure it with the retaining screw. Ensure that the battery Compartment Cover is fully compressed against the gasket to provide a seal. Do Not overtighten.
• Plug the electrical connector into the battery compartment cover.
• Reinstall the sensor module onto the plate.
• Reinstall the complete cover assembly onto the plate.
• Tighten the two (2) screws on top of the unit.
