SITOP 6EP33337SB000AX0 Stabilized Power Supply, 120 To 230 V Ac, Single, 24V Dc, 120W, 5, Din Rail
Item: CU2YRMModel: 6EP33337SB000AX0Cross Ref: 56JD97
7 In Stock
Ships within 2 days via
5.00% off
€380.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Power Supply |
| Amps-inrush | 29A |
| Depth | 125 mm |
| Features | Primary/Secondary Isolation, Product Feature Of The Enclosure Housing For Side-By-Side Mounting, Product Function Output Voltage Adjustable, Property Of The Output Short-Circuit Proof, Push-In Terminals, Wide-Range Input |
| Frequency | 47-63 Hz |
| Height | 135 mm |
| Housing Material | Metal |
| Input Voltage | 120-230V AC/120-240V DC |
| Ip Rating | IP20 |
| Max. Input Frequency | 63 Hz |
| Max. Operating Temp. | 158°F |
| Max. Output Voltage | 28V DC |
| Mfr. Series | SITOP PSU6200 |
| Min. Input Frequency | 47 Hz |
| Min. Operating Temp. | -22°F |
| Min. Output Voltage | 24V DC |
| Mounting | Din Rail |
| Nominal Output Voltage | 24V DC |
| Operating Temp. | -25°C to +70°C |
| Output Amps | 5A |
| Output Power-rated | 120 W |
| Output Voltage | 24V DC |
| Overall Depth | 4.92" |
| Overall Height | 5.32" |
| Overall Width | 1.38" |
| Phase | 1 |
| Power | 120 W |
| Power Supply Style | Switching |
| Status Indicator | LED, DC Ok Signal |
| Width | 35 mm |
| Wire Connection Type | Push In |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 13.5 |
| Ship length (cm) | 12.5 |
| Ship width (cm) | 3.5 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Output Amps | Input Voltage | Power | Depth | Output Voltage | Mfr. Series | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

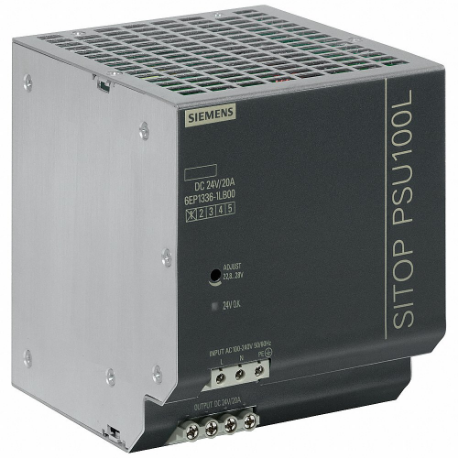

6EP13361LB00 | 125 mm | - | - | 480 W | 125 mm | 24V DC | SITOP PSU100L | - | €614.36 | |
 |

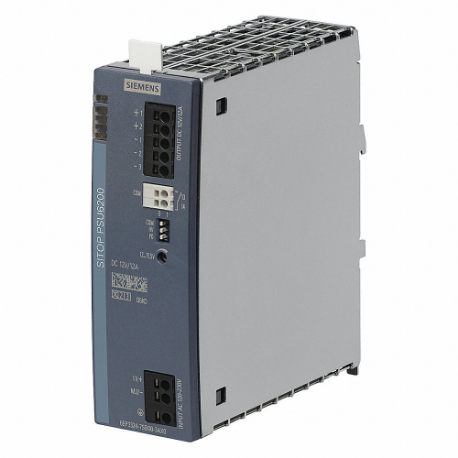

6EP33247SB003AX0 | 135 mm | - | - | 144 W | 125 mm | 12V DC | SITOP PSU6200 | - | €704.48 | |
 |
6EP33217SB000AX0 | 90 mm | 2A | 110-240V DC/120-230V AC | 28.5 W | 53 mm | 12V DC | SITOP PSU6200 | 3.94" | €230.67 | |
 |

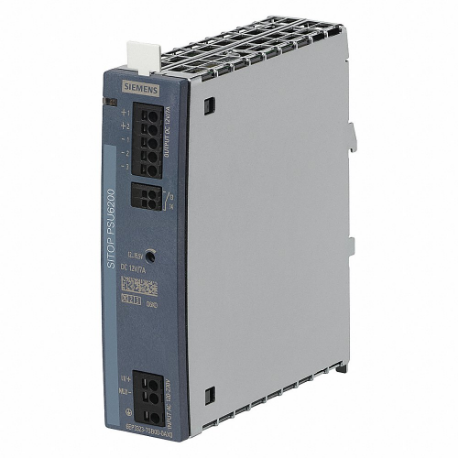

6EP33237SB000AX0 | 135 mm | 7A | 110-240V DC/120-230V AC | 84 W | 125 mm | 12V DC | SITOP PSU6200 | 5.32" | €502.07 | |
 |
6EP33338SB000AY0 | 125 mm | 5A | 120-230V AC | 120 W | 125 mm | 24V DC | SITOP PSU8200 Series | 4.92" | €519.28 | |
 |
6EP33348SB000AY0 | 125 mm | 10A | 120-230V AC | 240 W | 125 mm | 24V DC | SITOP PSU8200 Series | 4.92" | €688.71 | |
 |
6EP33347SB003AX0 | 135 mm | 10A | 110-240V DC/120-230V AC | 240 W | 125 mm | 24V DC | SITOP PSU6200 | 5.32" | €633.17 |
