SIMPLEX L8146B26D41 Push Button Lock Entry Key Override
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€1,062.17 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Mech. Push Button Lockset |
| Ada Compliant | Yes |
| Backset Distance | 2 3/4" |
| Backset Size (in.) | 2 3/4" |
| Case Material | Zinc |
| Direction | Mortis Left |
| Door Thickness - Maximum | 2 1/4" |
| Door Thickness - Minimum | 1 3/8" |
| Finish | Satin Chrome |
| Fire Rating | 3 hrs. |
| Function | Entry With Key Override, Passage |
| Hand Orientation | Left-Handed |
| Includes | Deadbolt, Lockout, Passage, Push Button Access |
| Includes Core | No |
| Includes Hardware | Hardware Included |
| Inside Depth | 1 1/4" |
| Inside Height | 8" |
| Inside Width | 3 1/4" |
| Key Override Options | Best And Equivalents (6 Or 7-Pin Length) Not Included |
| Keypad | 5 Button, Vandal Resistant |
| Latch Length | 3/4" |
| Lock Assembly Type | Mortise |
| Lockset Function | Entrance, Passage |
| Lockset Handle Type | Lever |
| Lockset Type | Mechanical |
| Max. User Codes | 1 |
| Number Of Keypad Buttons | 5 |
| Operation Type | Push Button |
| Outside Depth | 3.812" |
| Outside Depth | 3-13/16" |
| Outside Height | 7 3/8" |
| Outside Width | 3 1/8" |
| Overall Depth | 4 1/8" |
| Overall Height | 5 7/8" |
| Overall Width | 3 1/8" |
| Product Type | Mechanical Push Button Lockset |
| Properties | Vandal Resistant, Weather Resistant |
| Standards | Ul/Ulc Listed |
| User Codes - Maximum | 1 |
| Weather Resistant | Yes |
Shipping Info:
| Ship weight (kg) | 5.45 |
| Ship height (cm) | 20.83 |
| Ship length (cm) | 26.92 |
| Ship width (cm) | 26.42 |
| Country of Origin | US |
Product Details:
- Key Override Options : Best and Equivalents (6 or 7 Pin)
- Electrical/Mechanical : Mechanical
Product Variants
| Product | Model | Outside Width | Inside Height | Latch Length | Inside Width | Backset Size (in.) | Outside Height | Inside Depth | Outside Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EE21B/EE21B26D41 | 3 1/8" | 7 3/8" | 1/2" | 3 1/8" | 2 3/4" | 7 3/8" | 2 3/8" | 3.188" | €1,741.62 | |
 |

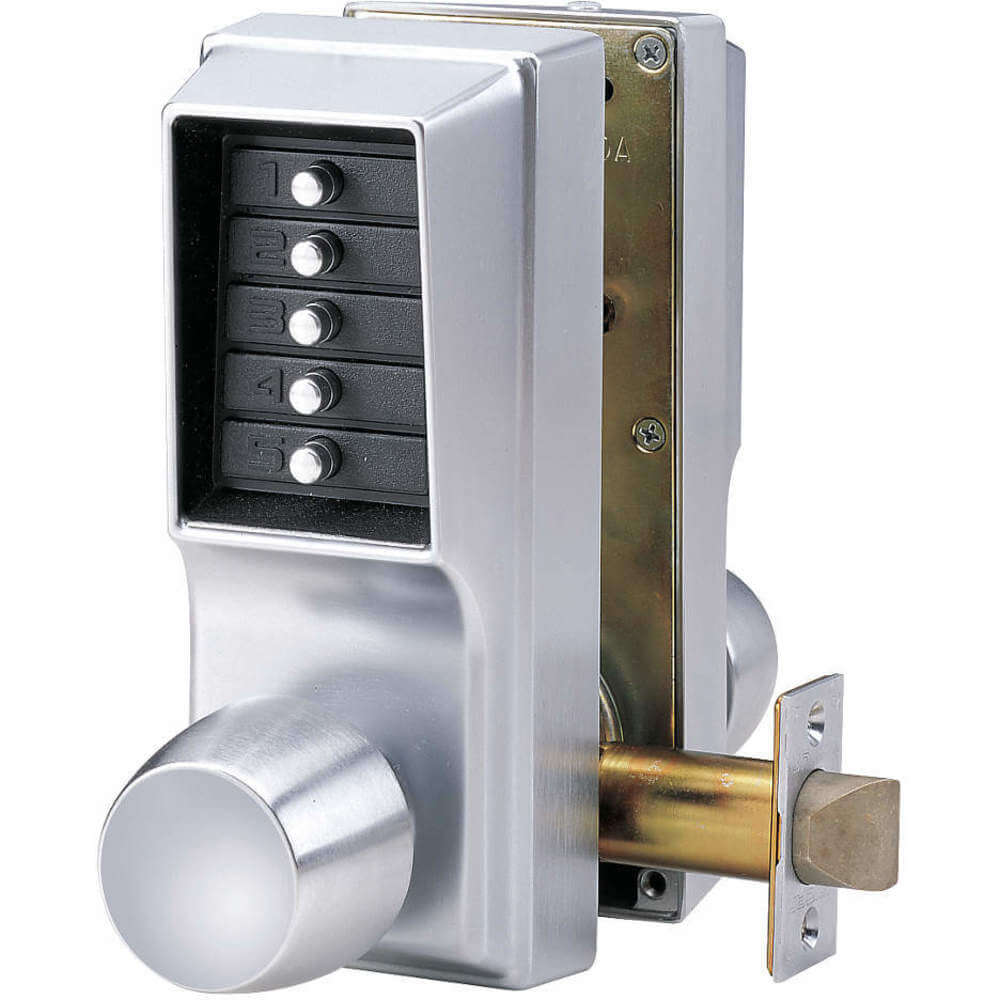

EE11/1126D41 | 3 1/8" | 7 3/8" | 1/2" | 3 1/8" | 2 3/4" | 7 3/8" | 2 3/8" | 3.188" | €1,517.22 | |
 |
RR8148B26D41 | 3 1/8" | 9" | 1" | 3 1/4" | 2 3/4" | 7 3/8" | 2 3/8" | 3.812" | €1,136.43 | |
 |

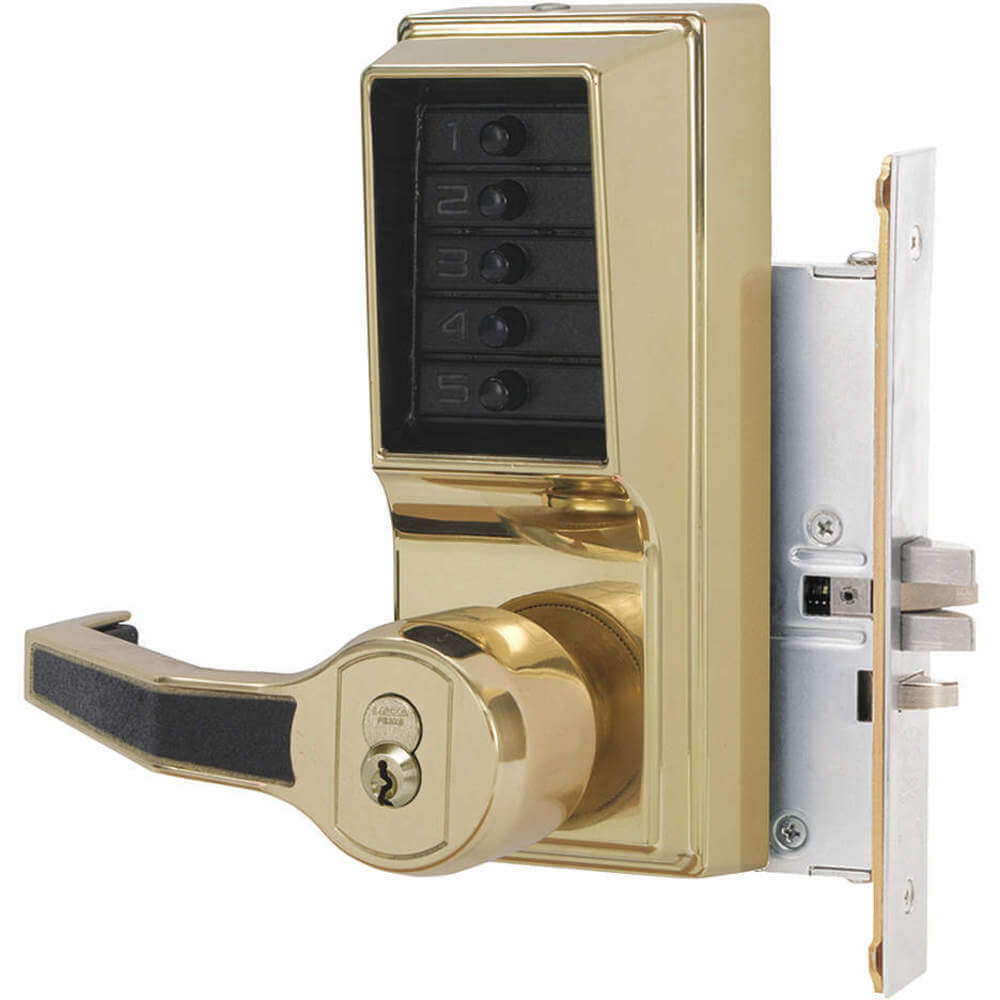

LR8146R0341 | 3 1/8" | 9" | 3/4" | 3 1/4" | 2 3/4" | 7 3/8" | 2 3/8" | - | - | RFQ
|
 |
LR8146B26D41 | 3 1/8" | 9" | 3/4" | 3 1/4" | 2 3/4" | 7 3/8" | 2 3/8" | - | €1,087.34 | |
|
R8146B26D41 | 3 1/8" | 9" | 3/4" | 3 1/4" | 2 3/4" | 7 3/8" | 2 3/8" | 3.812" | €1,092.96 | |
 |

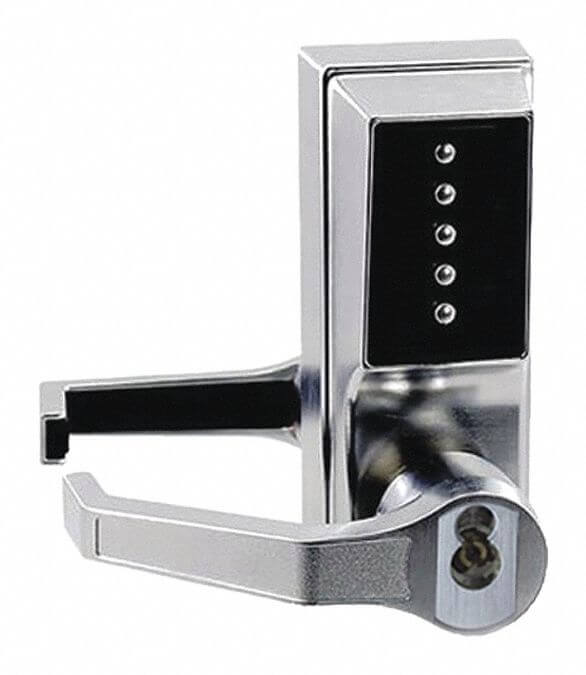

LL1041S26D41 | 3 1/8" | 9" | 1/2" | 3 1/4" | 2 3/4" | 7 3/8" | - | - | €1,058.56 |
