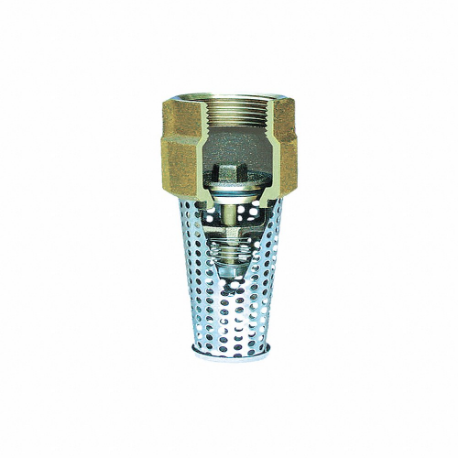

SIMMONS 457SB Foot Valve, Single Flow, Spring, Inline, Bronze Body, Stainless Steel Strainer
Item: CU2YCNModel: 457SBCross Ref: 482A26
7 In Stock
Ships within 2 days via
10.00% off
€189.40 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Foot Valve |
| Application | Pumps |
| Application - Valves | Pumps |
| Body Material | Silicon Bronze |
| Cap To Inlet Center | 1 1/2" |
| Connection Gender - Side 1 | Female |
| Connection Type | FNPT |
| Cracking Pressure | 2 psi |
| Design | Spring |
| Flow Design | Single |
| Foot Valve Design Type | Spring |
| Height - Cap To Inlet Center | 1 1/2" |
| Length | 3 1/2" |
| Max. Pressure (cwp) | 400 psi |
| Max. Steam Pressure | 400 psi WSP |
| Max. Water Pressure | 400 psi |
| Media Temp. Range | 190°F |
| Mounting Orientation | Horizontal/Vertical |
| Mounting Orientation - Valves | Horizontal, Vertical |
| Operating Temperature - Maximum | 190°F |
| Overall Height | 7 1/4" |
| Overall Length | 3 1/2" |
| Overall Width | 3 1/2" |
| Pipe Size, Tube Size | 2" |
| Screen Material | Stainless Steel |
| Seal Material | Buna N |
| Seat Material - Valves | Bronze |
| Spring Material | Stainless Steel |
| Standards | Nsf/Ansi 372, Nsf/Ansi 61 |
| Strainer Material | Stainless Steel |
| Strainer Material - Foot Valves | Stainless Steel |
| Valve Body Design | Inline |
| Width | 3 1/2" |
Shipping Info:
| Ship weight (kg) | 1.34 |
| Ship height (cm) | 18.26 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 8.89 |
| Country of Origin | US |
Product Variants
| Product | Model | Cracking Pressure | Overall Height | Pipe Size, Tube Size | Body Material | Strainer Material | Connection Type | Max. Water Pressure | Seal Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

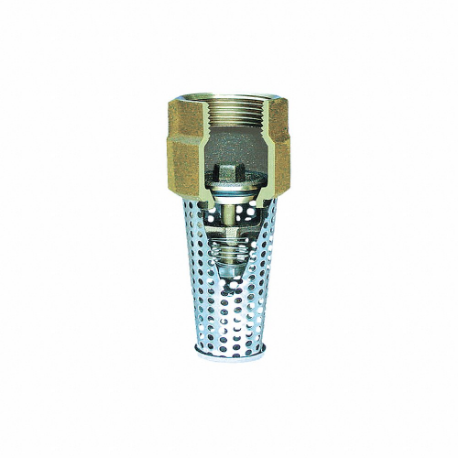

456SB | 1 psi | 6 3/8" | 1 1/2" | Silicon Bronze | Stainless Steel | FNPT | 400 psi | Buna N | €132.55 | |
 |
452SB | 0.5 psi | 3 3/4" | 3/4" | Silicon Bronze | Stainless Steel | FNPT | 400 psi | Buna N | €63.39 | |
 |

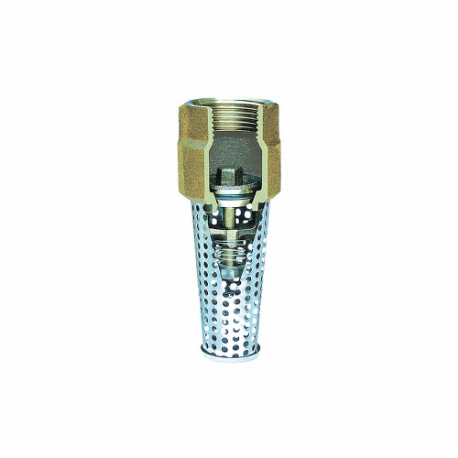

454SB | 0.5 psi | 5" | 1 1/4" | Silicon Bronze | Stainless Steel | FNPT | 400 psi | Buna N | €86.76 | |
 |

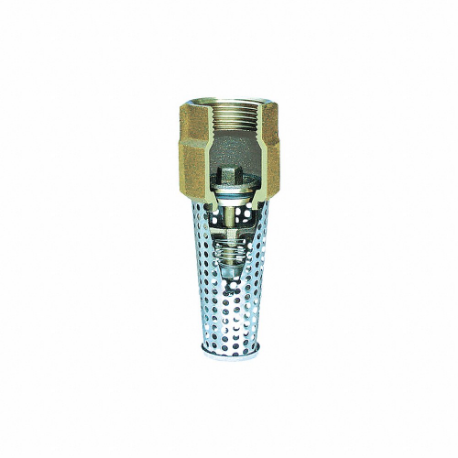

453SB | 0.5 psi | 4 3/4" | - | Silicon Bronze | Stainless Steel | FNPT | 400 psi | Buna N | €68.14 |
