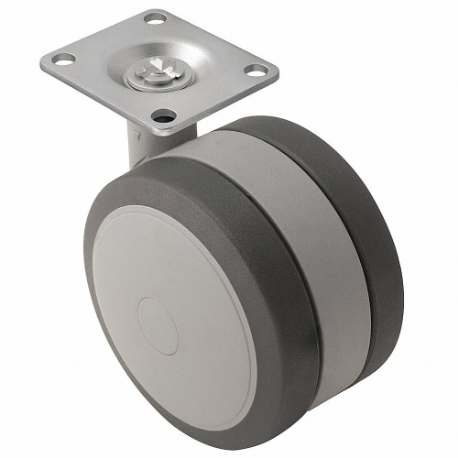

SHEPHERD CASTER PSF50101GR Swivel Plate Caster, 2 Inch Dia, 2 3/8 Inch Height, Swivel Caster
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€12.51 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Plate Caster |
| Application | Store Fixtures, Electronic Equipment, Audio/Visual Equipment, Furniture, Medical Equipment |
| Brake Type | No Brake Included |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Nylon |
| Caster Material | Nylon |
| Caster Mounting Type | Plate |
| Caster Sub-type | Swivel |
| Esd Conductive | No |
| Features | Quiet Mobility, Riveted Axle, Floor Protective |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 1" x 1" |
| Load Rating | 75 lbs. |
| Load Rating Range | 0 lbs. to 299 lbs. |
| Mounting Bolt Dia. | 3/16" |
| Mounting Height | 2 3/8" |
| Mounting Plate Bolt Hole Pattern | D |
| Mounting Plate Size | 1 1/2" x 1 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 1 1/2" X 1 1/2" ( D ) |
| Non-marking | Yes |
| Nsf Listed | No |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 2 |
| Operating Temp. Range | -40°F to +180°F |
| Outside Bolt Hole Spacing | 1" x 1" |
| Swivel Bearing Seal Type | Open |
| Swivel Construction | Swivel |
| Swivel Lock Type | No Lock Included |
| Swivel Radius | 2 3/8" |
| Tread Material, Wheel Material | Thermoplastic Elastomer |
| Tread Shape | Twin Wheel |
| Wheel Bearing Type | Plain |
| Wheel Core Material | Nylon |
| Wheel Core Type | Solid |
| Wheel Diameter | 2" |
| Wheel Type | Tread On Core |
| Wheel/tread Color | Gray |
| Wheel/tread Hardness | 70-75A |
| Wheel/tread Hardness Rating | Soft |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Caster Sub-type | Mounting Plate Bolt Hole Pattern | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Bearing Type | Load Rating | Mounting Height | Mounting Plate Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

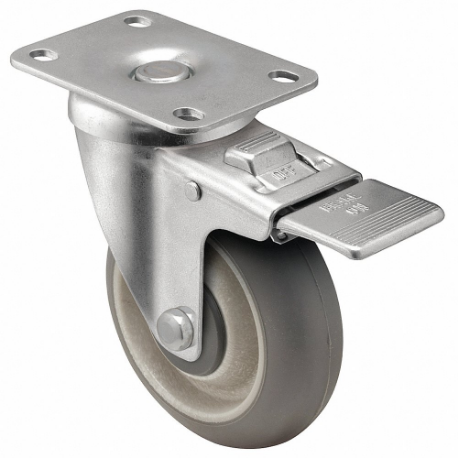

PGT40120ZN-DMT32(GG) | Swivel | C | 1 3/4" x 2 3/4" | 1 3/4" x 3" | Precision Ball | 250 lbs. | 5 1/4" | 2 5/8" x 3 3/4" | €61.87 | |
|
PGT50120ZN-DMT32(GG) | Swivel | C | 1 3/4" x 2 3/4" | 1.75" x 3" | Precision Ball | 300 lbs. | 6 1/4" | 2 5/8" x 3 3/4" | €61.87 | |
 |

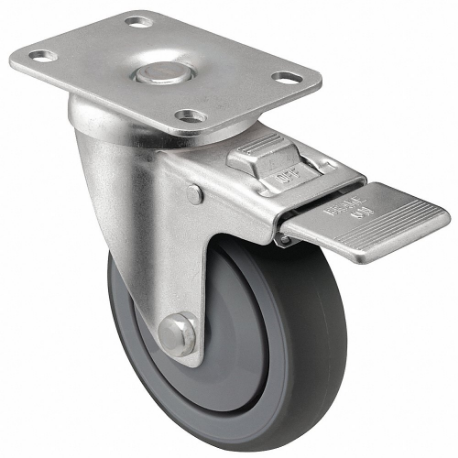

PGT30120ZN-TPR33(GG) | Swivel | C | 1 3/4" x 2 3/4" | 1 3/4" x 3" | Precision Ball | 210 lbs. | 4 1/4" | 2 5/8" x 3 3/4" | €52.83 | |
 |

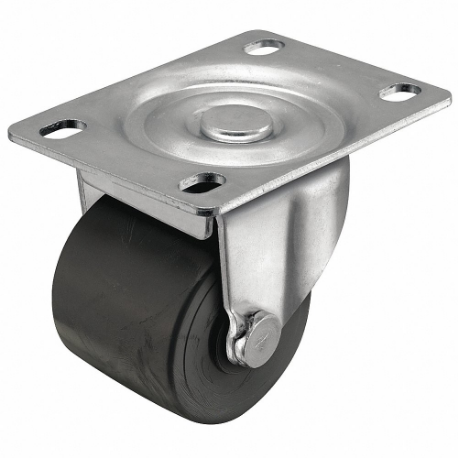

C0014120TZ-POL01(KK) | Swivel | C | 1 3/4" x 2 3/4" | 1 3/4" x 3" | Plain | 150 lbs. | 2 3/16" | 2 5/8" x 3 3/4" | €14.44 | |
 |
PTW40101BK-B | Swivel | D | 1" x 1" | 1" x 1" | Plain | 40 lbs. | 2 1/4" | 1 1/2" x 1 1/2" | €4.77 | |
 |

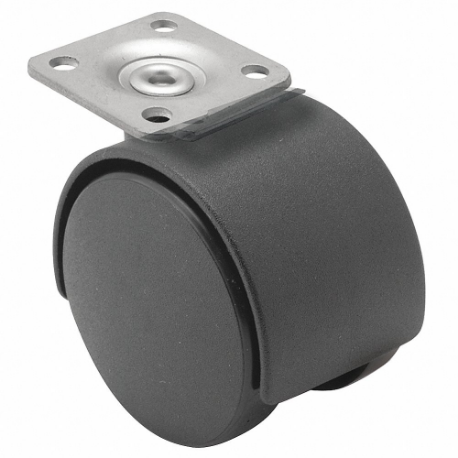

PTW40101BK | Swivel | D | 1" x 1" | 1" x 1" | Plain | 40 lbs. | 2 1/4" | 1 1/2" x 1 1/2" | €4.07 | |
|
PTW60101BK-B | Swivel | D | 1" x 1" | 1" x 1" | Plain | 100 lbs. | 3" | 1 1/2" x 1 1/2" | €6.77 |
