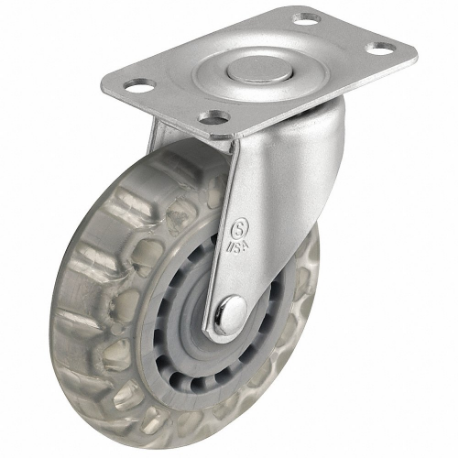

SHEPHERD CASTER PRE30120ZN-VPR01(CG) Sanitary Plate Caster
Get it by Monday, Dec 22
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€15.11 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Application | Store Fixtures, Carts, Institutional Equipment, Food Serive Equipment, Furniuture, Janitorial , Office Equipment, Racks And Storage Equipment, Medical Equipment |
| Bolt Hole Pattern | C |
| Brake Type | No Brake Included |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Material | Steel |
| Caster Mounting Type | Plate |
| Caster Sub-type | Swivel |
| Esd Conductive | No |
| Features | Corrosion Resistant, Chemical Resistant |
| For Axle Dia. | 1/4" |
| For Surface Type | Carpet, Concrete, Linoleum, Tile, Wood |
| Frame Color | Silver |
| Frame Finish | Zinc |
| Hub Length | 31/32" |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 1 3/4" x 2 3/4" |
| Load Rating | 120 lbs. |
| Load Rating Range | 0 lbs. to 299 lbs. |
| Mounting Bolt Dia. | 5/16" |
| Mounting Height | 3 1/2" |
| Mounting Plate Bolt Hole Pattern | C |
| Mounting Plate Size | 2 5/8" x 3 3/4" |
| Mounting Plate Size & Bolt Hole Pattern | 2 5/8" X 3 3/4" ( C ) |
| Non-marking | Yes |
| Nsf Listed | No |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 1.75" x 3" |
| Swivel Bearing Seal Type | Open |
| Swivel Construction | Swivel |
| Swivel Lock Type | No Lock Included |
| Swivel Radius | 2 1/2" |
| Tread Shape | Standard |
| Wheel Bearing Type | Plain |
| Wheel Core Material | Polypropylene |
| Wheel Core Type | Spokes |
| Wheel Diameter | 3" |
| Wheel Type | Tread On Core |
| Wheel Width | 13/16" |
| Wheel/tread Color | Clear, Gray |
| Wheel/tread Hardness | 85-90A |
| Wheel/tread Hardness Rating | Firm |
| Wheel/tread Material | Polyurethane |
Shipping Info:
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Wheel Width | Load Rating | Mounting Height | Caster Sub-type | Caster Brake Type | Mounting Plate Bolt Hole Pattern | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PRE30120ZN-VPR01(CG)B | 13/16" | 120 lbs. | 3 1/2" | Swivel | Side Pedal Brake | C | 1 3/4" x 2 3/4" | 1.75" x 3" | €19.89 | |
 |
PRI30120ZN-TPU | 13/16" | 120 lbs. | 3 1/2" | Rigid | No Brake Included | C | 1 3/4" x 2 3/4" | 1.75" x 3" | €14.87 | |
|
PRI50120ZN-TPU | 15/16" | 150 lbs. | 5 7/8" | Rigid | No Brake Included | C | 1 3/4" x 2 3/4" | 1.75" x 3" | €20.68 | |
 |
PGT50120ZN-POD01(KK) | 1 1/4" | 300 lbs. | 6 1/4" | Swivel | Total Lock Brake | C | 1 3/4" x 2 3/4" | 1.75" x 3" | - | RFQ
|
 |
PRE20108ZN-3E | 13/16" | 100 lbs. | 2 5/8" | Swivel | No Brake Included | D | 31/32" x 2 1/8" | 0.969" x 2.125" | €7.91 | |
 |
PRE30120ZN-TPU | 13/16" | 125 lbs. | 3 1/2" | Swivel | No Brake Included | C | 1 3/4" x 2 3/4" | 1.75" x 3" | €16.37 | |
 |
PRI30120ZN-MNT | 13/16" | 120 lbs. | 3 1/2" | Rigid | No Brake Included | C | 1 3/4" x 2 3/4" | 1.75" x 3" | €21.60 |
