SHARPE VALVES SVOP54DB6RV030 Oil Patch Ball Valve Fnpt 3 In
Get it by Tuesday, Sep 1
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
13.00% off
€284.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Oil Patch Ball Valve |
| 3-a Certified | Not Rated |
| Ball Material | Stainless Steel |
| Ball Port Style | Standard Port |
| Ball Valve Product Group | Manual |
| Body Material | Ductile Iron |
| Body Style | Inline |
| Connection Gender Side 2 | Female |
| Connection Gender-side 1 | Female |
| Connection Size-side 1 | 3" |
| Connection Size-side 2 | 3" |
| Connection Type | FNPT x FNPT |
| Connection Type-side 1 | NPT |
| Connection Type-side 2 | NPT |
| For Media | Air, Non-Potable Water, Oil, Steam |
| Grade | Grade 420 |
| Handle | Locking Lever |
| Handle Color | Yellow |
| Handle Length | 10" |
| Handle Material | Ductile Iron |
| Handle Type | Lever Locking |
| Max. Pressure | 2000 psi WOG |
| Max. Pressure (cwp) | 2000 psi |
| Max. Pressure-combustible Gas | Not Rated |
| Media Temp. | 0°F to 450°F |
| Nominal Valve Size | 3" |
| Overall Length | 7.44" |
| Pipe Size | 3" |
| Port | Standard |
| Port Type | Standard |
| Seal Material | FKM |
| Seat Material | PTFE |
| Stem Grade | Grade 420 |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Resistant |
| Temp. | 0°F to +450°F |
| Vacuum Service Rating | 29 in. hg |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
Shipping Info:
| Ship weight (kg) | 8.98 |
| Ship height (cm) | 22.61 |
| Ship length (cm) | 35.81 |
| Ship width (cm) | 21.08 |
| HS code | 8481803070 |
| Country of Origin | CN |
Product Variants
| Product | Model | Max. Pressure | Nominal Valve Size | Max. Pressure (cwp) | Connection Size-side 2 | Connection Size-side 1 | Handle Length | Ball Material | Seat Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SVOP54DA6RV040 | 1000 psi WOG | 4" | 1000 psi | 4" | 4" | 13 1/2" | Stainless Steel | PTFE | €694.70 | |
|

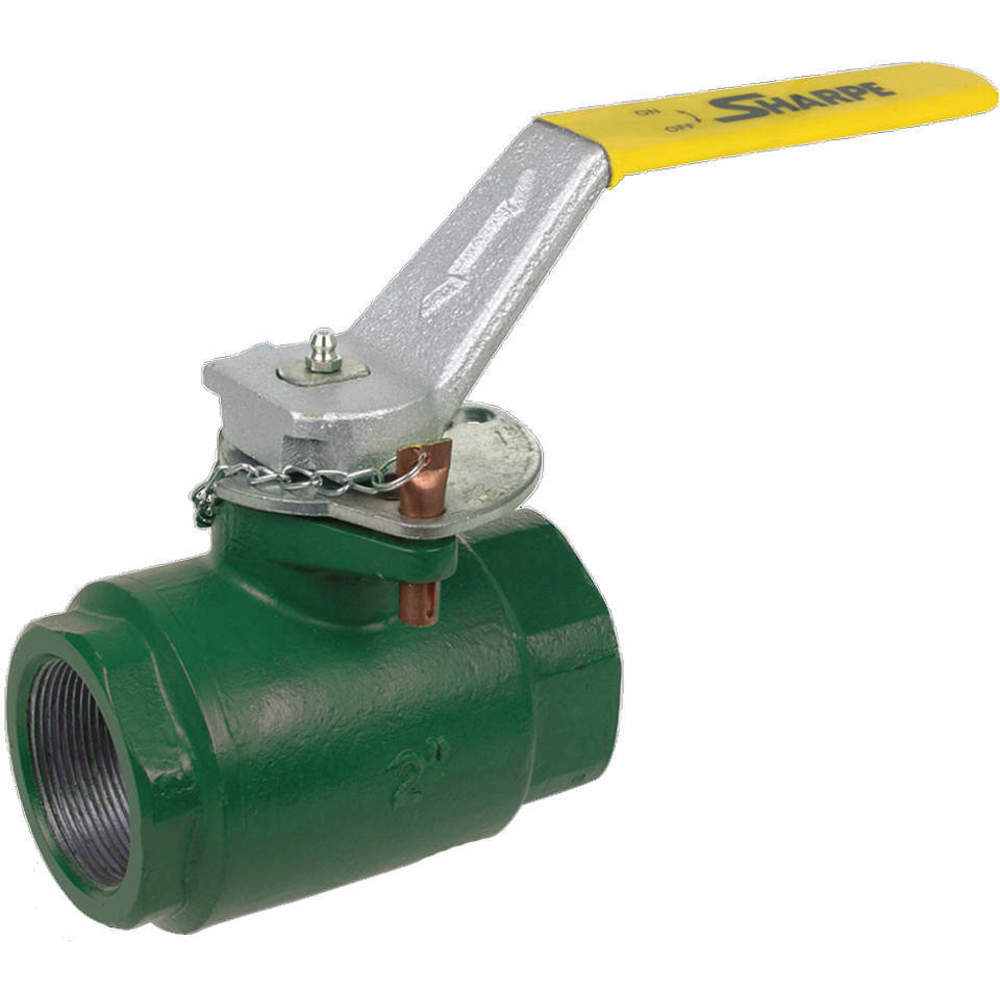

SVOP54DB6RV020 | 2000 psi WOG | 2" | 2000 psi | 2" | 2" | 8.54" | Stainless Steel | PTFE | €197.84 |
