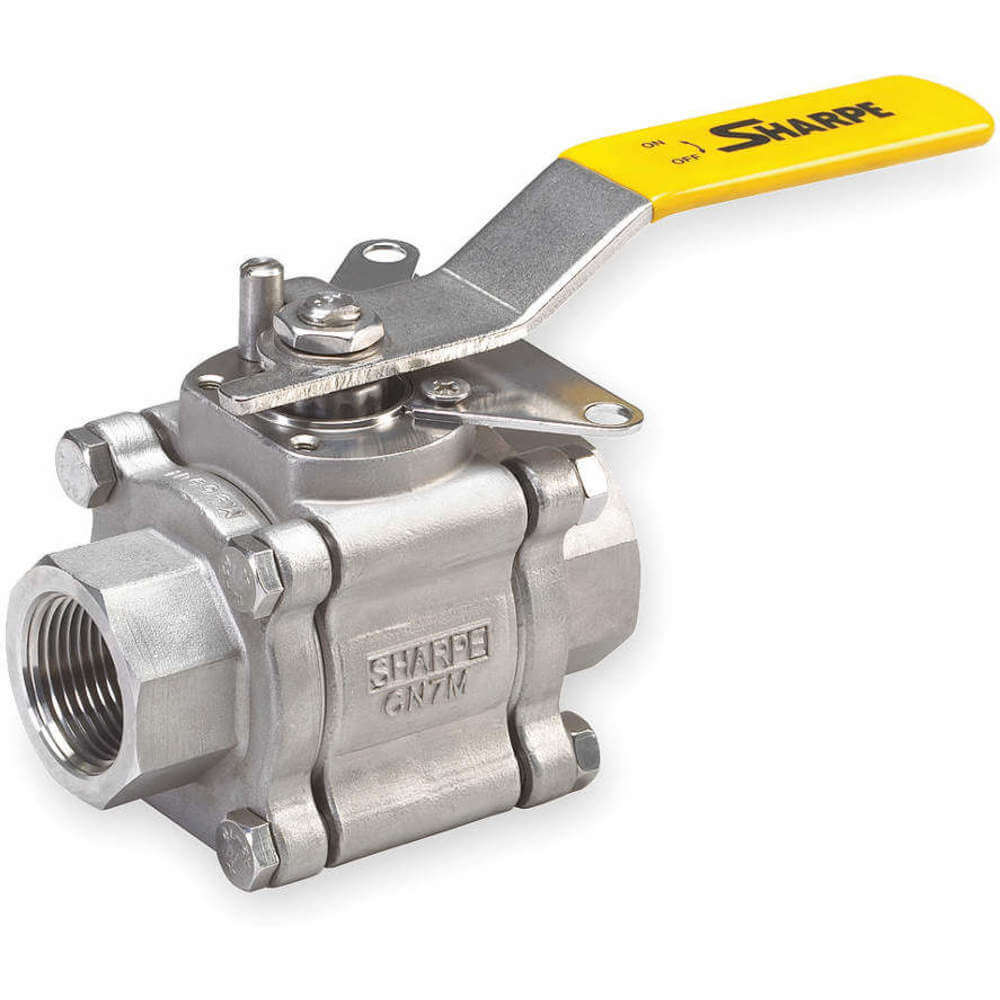

SHARPE VALVES SV9922MTTE*010 Alloy 20 Stainless Steel Ball Valve Fnpt 1 Inch
Item: AB2XZNModel: SV9922MTTE*010Cross Ref: 1PPU3
7 In Stock
Ships within 2 days via
10.00% off
€1,029.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Material | Stainless Steel |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | Stainless Steel |
| Body Style | Inline |
| Coefficient Of Volume | 46 |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1" |
| Connection Size - Side 2 | 1" |
| Connection Type | FNPT x FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| For Media | Air, Corrosive Chemicals, Non-Potable Water, Steam, Sulfuric Acid |
| Grade | Grade 20 |
| Handle | Locking Lever |
| Handle - Locking | Locking |
| Handle Color | Yellow |
| Handle Length | 5.79" |
| Handle Material | 300 Stainless Steel, Pvc |
| Handle Type | Lever |
| Included Mounting | Iso 5211 Actuator Mounting Pad |
| Max. Media Temperature | 500°F |
| Max. Pressure | 1200 psi WOG |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 1200 psi |
| Max. Pressure (steam) | 350 psi |
| Max. Steam Pressure | 125 psi WSP |
| Media Temp. Range | 0°F to 500°F |
| Min. Media Temperature | 0°F |
| Nominal Valve Size | 1" |
| Number Of Pieces | 3 |
| Overall Length | 4.25" |
| Pipe Size | 1" |
| Port | Full |
| Pressure For Water | 1200 psi WOG |
| Seal Material | PTFE |
| Seat Material | Polymer |
| Stem Grade | Alloy 20 , Stainless Steel |
| Stem Type | Blowout Resistant |
| Temp. Range | 0°F to +500°F |
| Vacuum Service Rating | 29 in. hg |
| Valve Body Style | Straight |
| Valve Construction | Three-Piece |
| Valve Series | 99 Series |
Shipping Info:
| Ship weight (kg) | 2.45 |
| Ship height (cm) | 10.67 |
| Ship length (cm) | 21.59 |
| Ship width (cm) | 8.64 |
| HS code | 8481803070 |
| Country of Origin | TW |
Product Variants
| Product | Model | Coefficient Of Volume | Overall Length | Pipe Size | Stem Grade | Body Material | Connection Type | Max. Pressure | Max. Steam Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SV9922MTTE*006 | 32 | 3.72" | 3/4" | Stainless Steel | Stainless Steel | FNPT x FNPT | 1200 psi WOG | 125 psi WSP | €844.59 |
