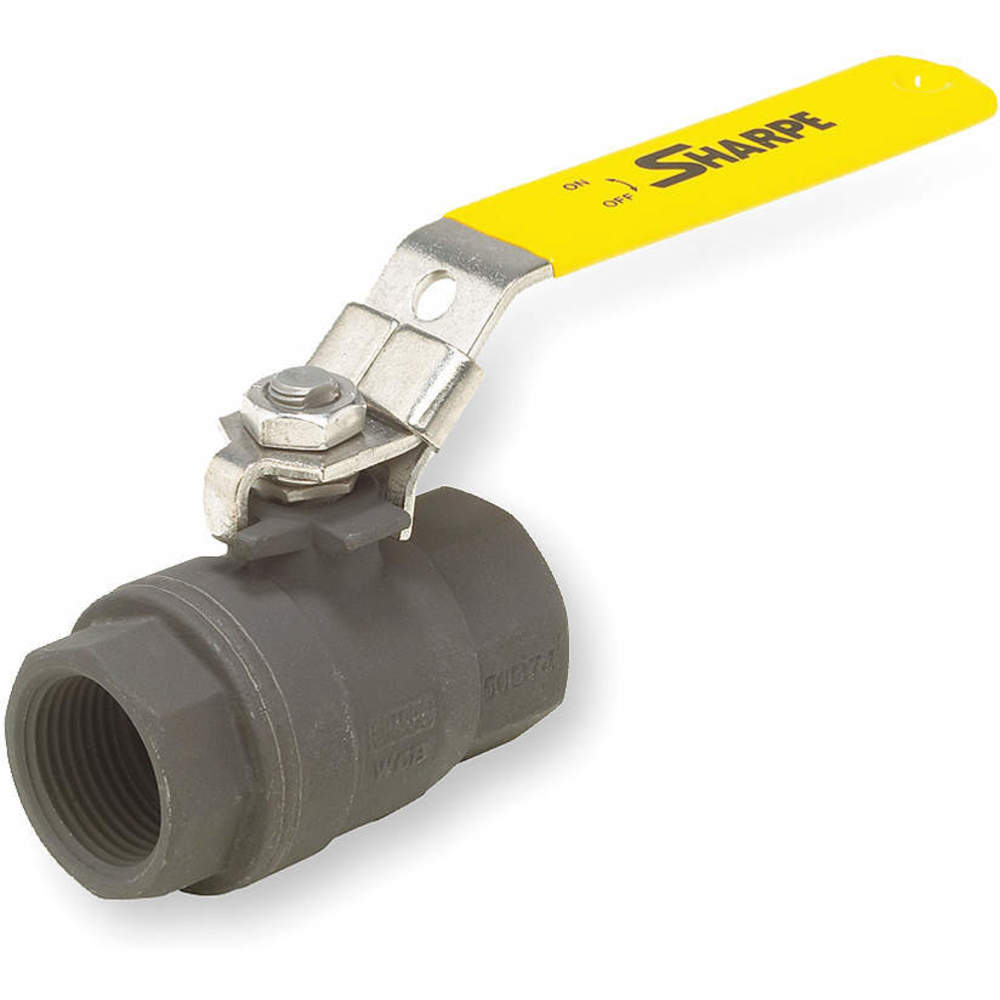

SHARPE VALVES SV50C74010 Carbon Steel Ball Valve Inline Fnpt 1 In
Item: AD2CBFModel: SV50C74010Cross Ref: 3MRD2
7 In Stock
Ships within 2 days via
10.00% off
€310.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Material | Stainless Steel |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | Carbon Steel |
| Body Style | Inline |
| Coefficient Of Volume | 68 |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1" |
| Connection Size - Side 2 | 1" |
| Connection Type | FNPT x FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| For Media | Air, Non-Potable Water |
| Grade | Grade 316 |
| Handle | Locking Lever |
| Handle Color | Yellow |
| Handle Finish | Zinc Plated |
| Handle Height | 1.64" |
| Handle Length | 6.89" |
| Handle Material | Stainless Steel |
| Handle Type | Lever Locking |
| Included Mounting | Iso 5211 Actuator Mounting Pad |
| Max. Pressure | 3000 psi WOG |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 3000 psi |
| Media Temp Range | 0°F to 200°F |
| Nominal Valve Size | 1" |
| Number Of Pieces | 2 |
| Overall Length | 4.02" |
| Pipe Size | 1" |
| Port | Full |
| Pressure For Water | 3000 psi WOG |
| Seal Material | PTFE |
| Seat Material | Delrin, PEEK |
| Stem Grade | Grade 316 |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Resistant |
| Temp. Range | 0°F to +200°F |
| Vacuum Service Rating | 29 in. hg |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | 50C |
Shipping Info:
| Ship weight (kg) | 1.69 |
| Ship height (cm) | 5.59 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 12.7 |
| HS code | 8481803070 |
| Country of Origin | TW |
Product Variants
| Product | Model | Max. Pressure | Seat Material | Handle Material | Overall Length | Coefficient Of Volume | Pipe Size | Port | Temp. Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

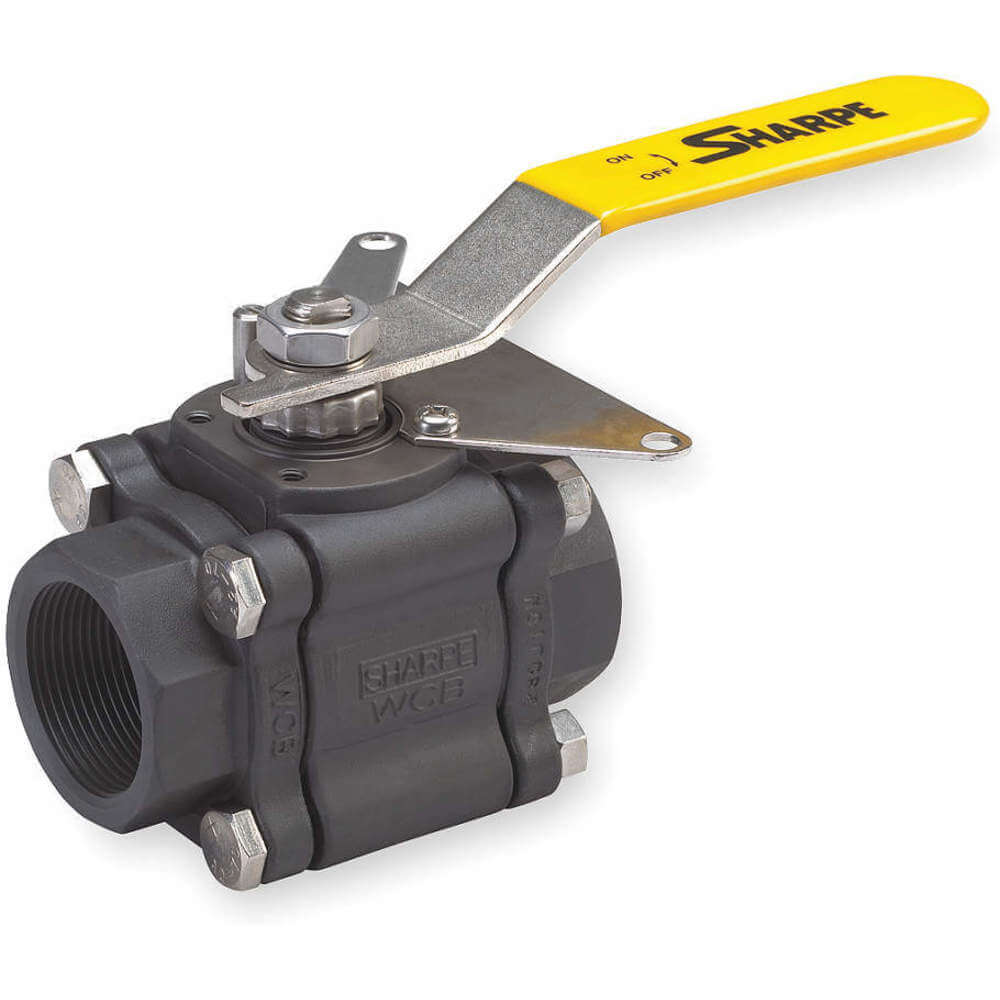

SV8446MTTE*010 | 1480 psi WOG | Polymer | 300 Stainless Steel, Pvc | 3.72" | 32 | 1" | Standard | 0°F to +500°F | €292.61 | |
 |

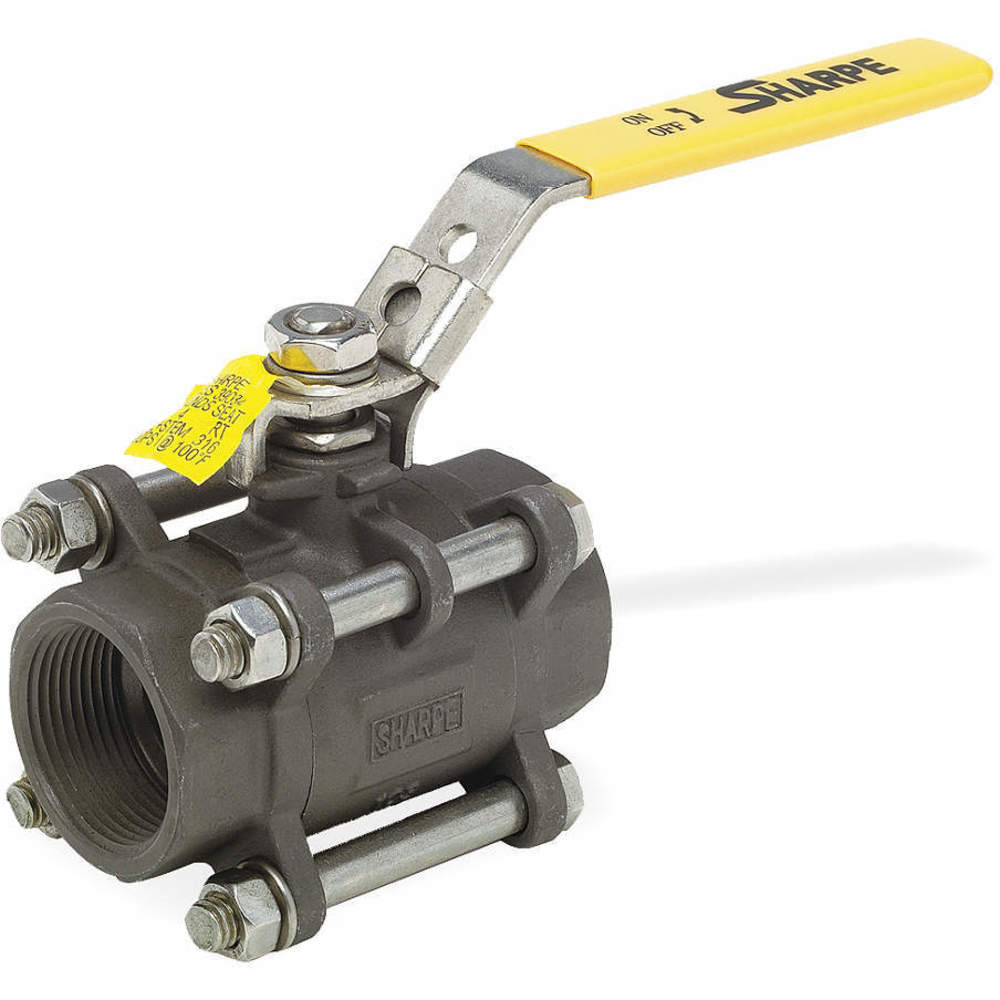

SV39034TE004 | 1000 psi WOG | Polymer | Grade 300 Stainless Steel | 2.46" | 28 | 1/2" | Full | 0°F to +450°F | €87.26 | |
|
SV39034TE006 | 1000 psi WOG | Polymer | Grade 300 Stainless Steel | 2.87" | - | 3/4" | Full | 0°F to +450°F | €126.29 | |
|
SV39034TE010 | 1000 psi WOG | Polymer | Grade 300 Stainless Steel | 3.32" | - | 1" | Full | 0°F to +450°F | €176.61 | |
|
SV39034TE020 | 1000 psi WOG | Polymer | Grade 300 Stainless Steel | 5.23" | - | 2" | Full | 0°F to +450°F | €401.09 | |
|
SV50C74003 | 3000 psi WOG | Delrin, PEEK | Stainless Steel | 2.52" | - | 3/8" | Full | 0°F to +200°F | €150.17 |
