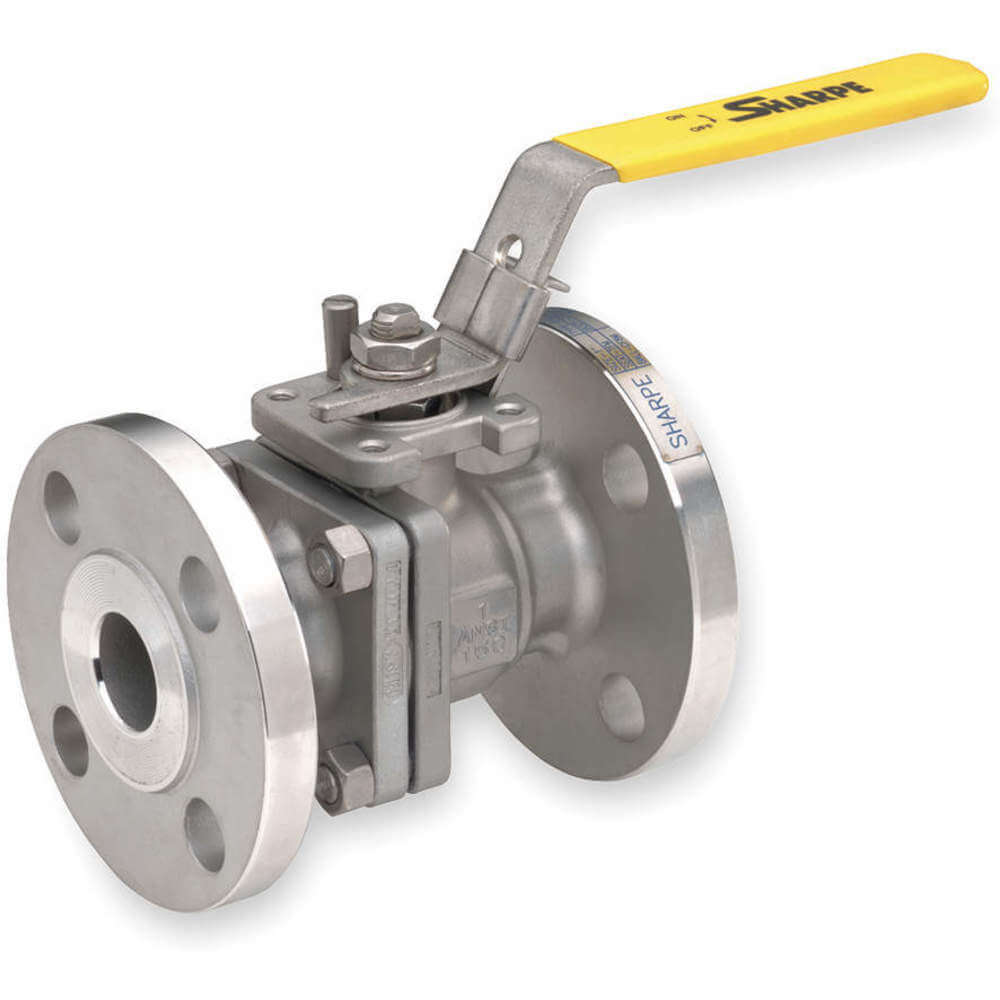

SHARPE VALVES SV50116M020 Stainless Steel Ball Valve Flanged 2 In
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€630.16 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ansi Flange Class | Class 150 |
| Ball Material | Stainless Steel |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | 316 Stainless Steel |
| Body Style | Inline |
| Coefficient Of Volume (cv) | 480 |
| Connection Size - Side 1 | 2" |
| Connection Size - Side 2 | 2" |
| Connection Type | Flanged x Flanged |
| Connection Type - Side 1 | Flange |
| Connection Type - Side 2 | Flange |
| For Media | Air, Corrosive Chemicals, Non-Potable Water, Steam |
| Grade | Grade 316 |
| Handle | Locking Lever |
| Handle - Locking | Locking |
| Handle Color | Yellow |
| Handle Length | 9.03" |
| Handle Material | 300 Stainless Steel, Pvc |
| Handle Type | Lever |
| Included Mounting | Iso 5211 Actuator Mounting Pad |
| Max. Media Temperature | 450°F |
| Max. Pressure | 275 psi WOG |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 275 psi |
| Max. Pressure (steam) | 190 psi |
| Max. Steam Pressure | 125 psi WSP |
| Media Temp. Range | 0°F to 450°F |
| Min. Media Temperature | 0°F |
| Nominal Valve Size | 2" |
| Number Of Pieces | 2 |
| Overall Length | 7" |
| Pipe Size | 2" |
| Port | Full |
| Pressure For Water | 275 psi WOG |
| Seal Material | PTFE |
| Seat Material | Polymer |
| Stem Grade | Grade 316 |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Resistant |
| Temp. Range | 0°F to +500°F |
| Vacuum Service Rating | 29 in. hg |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | 50 |
Shipping Info:
| Ship weight (kg) | 9.07 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 33.02 |
| Ship width (cm) | 20.32 |
| HS code | 8481803070 |
| Country of Origin | TW |
Product Variants
| Model | Handle Material | Overall Length | Pipe Size | Body Material | Connection Type | Max. Pressure | Max. Steam Pressure | Ball Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SV50116M014 | 300 Stainless Steel, Pvc | 6.5" | 1 1/2" | 316 Stainless Steel | Flanged x Flanged | 275 psi WOG | 125 psi WSP | Stainless Steel | €532.86 | |

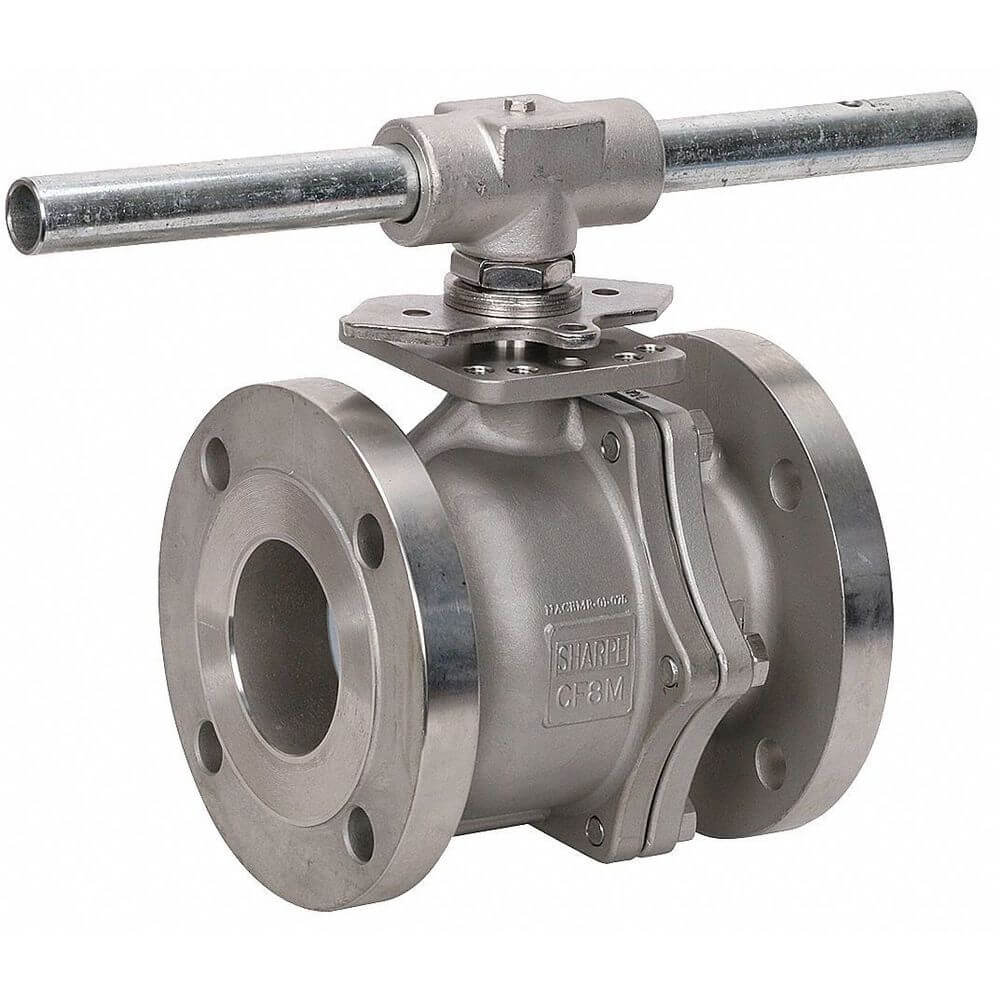

| SV50116M030 | Galvanized Steel | 8" | 3" | 316 Stainless Steel | Flanged x Flanged | 275 psi WOG | 125 psi WSP | Stainless Steel | €1,497.58 | |
| SV50116M040 | Galvanized Steel | 9" | 4" | 316 Stainless Steel | Flanged x Flanged | 275 psi WOG | 125 psi WSP | Stainless Steel | €2,219.48 |
