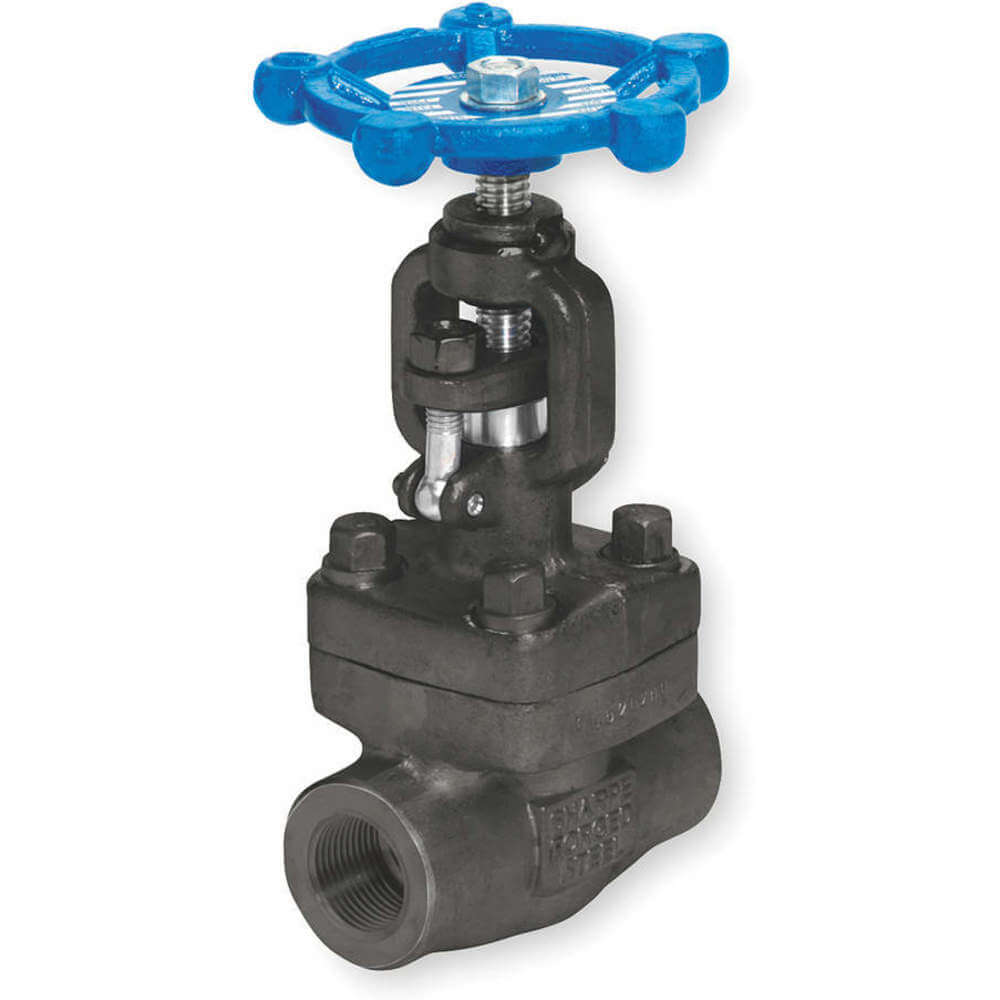

SHARPE VALVES SV44834TE014 Globe Valve Class 800 1-1/2 Inch Fnpt
Get it by Friday, Dec 19
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€365.72 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Globe Valve |
| Body Material | Carbon Steel |
| Bonnet Material | Carbon Steel |
| Bonnet Style | Bolted |
| Class | Class 800 |
| Connection Size - Side 1 | 1 1/2" |
| Connection Size - Side 2 | 1 1/2" |
| Connection Type | FNPT x FNPT |
| Disc Material | 410 Stainless Steel |
| Flow Coefficient | 14 |
| For Media | Steam |
| Globe Valve Body Type | Z-Body |
| Handle Height | 10.31" |
| Handle Material | Carbon Steel |
| Handle Type | Wheel |
| Inlet To Outlet Length | 5.984" |
| Max. Fluid Temp. | 1000°F |
| Max. Pressure (cwp) | 1975 psi |
| Max. Steam Pressure | 720 psi |
| Max. Water Pressure | 1975 psi |
| Media Temperature Range | -20°F to +1000°F |
| Overall Length | 5.984375" |
| Pipe Size | 1 1/2" |
| Seal Material | Graphite |
| Seat Material | Stellite |
| Stem | Non Rising |
| Stem Grade | Grade 410 |
| Stem Material | Stainless Steel |
| Stem Type | Non Rising |
| Top Of Handle To Inlet Center | 10.312" |
| Valve Series | 4483 Series |
Shipping Info:
| Ship weight (kg) | 7.79 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 15.24 |
| HS code | 8481803055 |
| Country of Origin | CN |
Product Variants
| Model | Pipe Size | Inlet To Outlet Length | Top Of Handle To Inlet Center | Body Material | Seal Material | Seat Material | Connection Type | Max. Water Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SV44834TE002 | - | 3.109" | 6.531" | Carbon Steel | Graphite | Stellite | FNPT x FNPT | 1975 psi | €183.54 | |
| SV44834TE003 | 3/8" | 3.109" | 6.531" | Carbon Steel | Graphite | Stellite | FNPT x FNPT | 1975 psi | €183.54 | |
| SV44834TE004 | 1/2" | 3.109" | - | Carbon Steel | Graphite | Stellite | FNPT x FNPT | 1975 psi | €183.54 | |
| SV44834TE006 | 3/4" | 3.578" | 6.891" | Carbon Steel | Graphite | Stellite | FNPT x FNPT | 1975 psi | €200.45 | |
| SV44834TE010 | 1" | 3.938" | 8.109" | Carbon Steel | Graphite | Stellite | FNPT x FNPT | 1975 psi | €261.67 | |
| SV44834TE012 | 1 1/4" | 4.719" | 8.984" | Carbon Steel | Graphite | Stellite | FNPT x FNPT | 1975 psi | €428.55 | |
| SV44834TE020 | 2" | 6.766" | 11.812" | Carbon Steel | Graphite | Stellite | FNPT x FNPT | 1975 psi | €497.75 |
