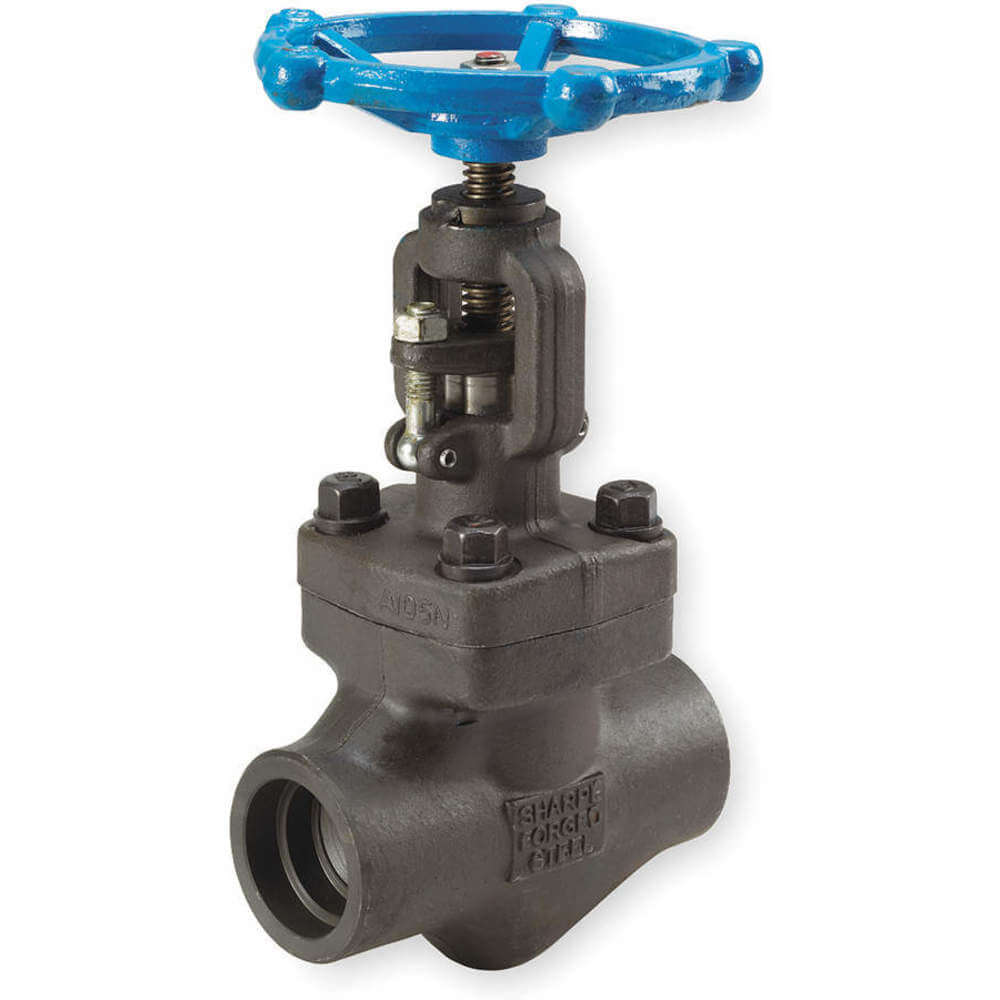

SHARPE VALVES SV44834SW003 Globe Valve Class 800 3/8 Inch
Item: AB2YCFModel: SV44834SW003Cross Ref: 1PRL7
7 In Stock
Ships within 2 days via
13.00% off
€124.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Globe Valve |
| Body Material | Carbon Steel |
| Bonnet Material | Carbon Steel |
| Bonnet Style | Bolted |
| Class | Class 800 |
| Connection Size-side 1 | 3/8" |
| Connection Size-side 2 | 3/8" |
| Connection Type | Socket x Socket |
| Disc Material | 410 Stainless Steel |
| Flow Coefficient | 3 |
| For Media | Steam |
| Globe Valve Body Type | Z-Body |
| Handle Height | 6.53" |
| Handle Material | Carbon Steel |
| Handle Type | Wheel |
| Inlet To Outlet Length | 3.109" |
| Max. Fluid Temp. | 1000°F |
| Max. Pressure (cwp) | 1975 psi |
| Max. Steam Pressure | 720 psi |
| Max. Water Pressure | 1975 psi |
| Media Temp. | -20°F to +1000°F |
| Overall Length | 3.109375" |
| Pipe Size | 3/8" |
| Seal Material | Graphite |
| Seat Material | Stellite |
| Stem | Non Rising |
| Stem Grade | Grade 410 |
| Stem Material | Stainless Steel |
| Stem Type | Non Rising |
| Top Of Handle To Inlet Center | 6.531" |
| Valve Series | 4483 Series |
Shipping Info:
| Ship weight (kg) | 2.23 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 19.05 |
| Ship width (cm) | 8.89 |
| HS code | 8481803055 |
| Country of Origin | CN |
Product Variants
| Model | Top Of Handle To Inlet Center | Inlet To Outlet Length | Connection Size-side 1 | Connection Size-side 2 | Handle Height | Flow Coefficient | Flow Coefficient Cv | Seat Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SV44834SW002 | 6.531" | 3.109" | 1/4" | 1/4" | 6.53" | 2 | - | Stellite | €152.14 | |
| SV44834SW004 | 6.531" | 3.109" | 1/2" | 1/2" | 6.53" | 3 | - | Stellite | €145.56 | |
| SV44834SW006 | 6.891" | 3.578" | 3/4" | 3/4" | 6.89" | 4 | - | Stellite | €163.31 | |
| SV44834SW010 | 8.109" | 3.938" | 1" | 1" | 8.11" | - | 6 | Stellite | €204.96 | |
| SV44834SW012 | 8.984" | 4.719" | 1 1/4" | 1 1/4" | 10.31" | 14 | - | Stellite | €349.12 | |
| SV44834SW014 | 10.312" | 5.984" | 1 1/2" | 1 1/2" | 10.31" | 14 | - | Stellite | €332.20 | |
| SV44834SW020 | 11.812" | 6.766" | 2" | 2" | 11.81" | - | 33 | Stellite | €425.27 |
