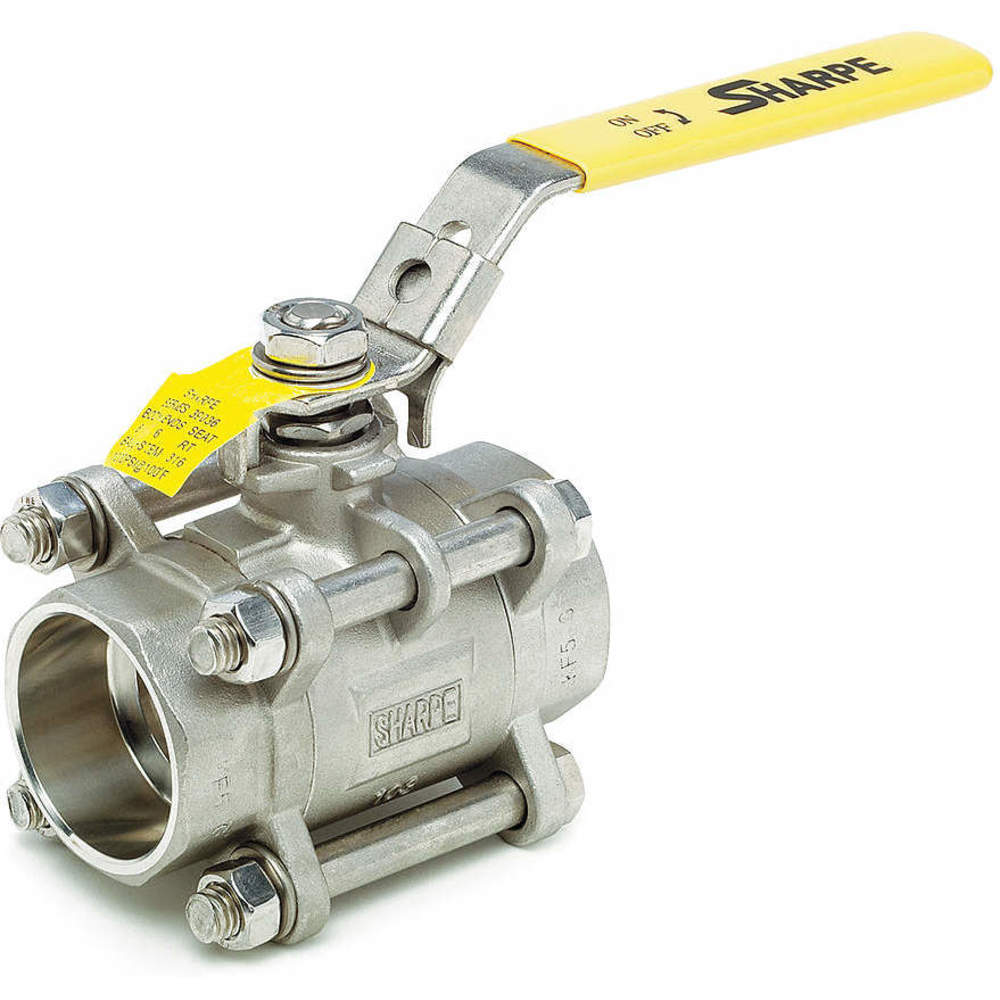

SHARPE VALVES SV39036SW010 Stainless Steel Ball Valve Socket 1 In
Item: AC8MMEModel: SV39036SW010Cross Ref: 3CFW5
7 In Stock
Ships within 2 days via
13.00% off
€113.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Certified | Not Rated |
| Ball Material | Stainless Steel |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | 316 Stainless Steel |
| Body Style | Inline |
| Coefficient Of Volume(cv) | 70 |
| Connection Gender Side 2 | Female |
| Connection Gender-side 1 | Female |
| Connection Size-side 1 | 1" |
| Connection Size-side 2 | 1" |
| Connection Type | Socket x Socket |
| Connection Type-side 1 | Socket |
| Connection Type-side 2 | Socket |
| For Media | Air, Corrosive Chemicals, Non-Potable Water |
| Grade | Grade 316 |
| Handle | Locking Lever |
| Handle Color | Yellow |
| Handle Height | 2.94" |
| Handle Length | 6.03" |
| Handle Material | Grade 300 Stainless Steel |
| Handle-locking | Locking |
| Max. Media Temp. | 450°F |
| Max. Pressure | 1000 psi WOG |
| Max. Pressure (cwp) | 1000 psi |
| Max. Pressure-combustible Gas | Not Rated |
| Media Temp. | 0°F to 450°F |
| Min. Media Temp. | 0°F |
| No. Of Pieces | 3 |
| Nominal Valve Size | 1" |
| Overall Length | 3.32" |
| Pipe Size | 1" |
| Port | Full |
| Pressure For Water | 1000 psi WOG |
| Seal Material | PTFE |
| Seat Material | Polymer |
| Stem Grade | Grade 316 |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Resistant |
| Temp. | 0°F to +450°F |
| Vacuum Service Rating | 29 in. hg |
| Valve Body Style | Straight |
| Valve Construction | Three-Piece |
| Valve Series | 3903 Series |
Shipping Info:
| Ship weight (kg) | 0.82 |
| Ship height (cm) | 5.59 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 11.94 |
| HS code | 8481803070 |
| Country of Origin | TW |
Product Variants
| Model | Nominal Valve Size | Connection Size-side 2 | Connection Size-side 1 | Handle Height | Handle Length | Coefficient Of Volume(cv) | Ball Material | Max. Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SV39036SW002 | 1/4" | 1/4" | 1/4" | 1.85" | 4.02" | 20 | Stainless Steel | 1000 psi WOG | €74.21 | |
| SV39036SW003 | 3/8" | 3/8" | 3/8" | 1.85" | 4.02" | 25 | Stainless Steel | 1000 psi WOG | €62.23 | |
| SV39036SW004 | 1/2" | 1/2" | 1/2" | 2.38" | 5.07" | - | Stainless Steel | 1000 psi WOG | €60.21 | |
| SV39036SW006 | 3/4" | 3/4" | 3/4" | 2 1/2" | 5.07" | 50 | Stainless Steel | 1000 psi WOG | €93.28 | |
| SV39036SW012 | 1 1/4" | 1 1/4" | 1 1/4" | 3.3" | 6.03" | 112 | Stainless Steel | 1000 psi WOG | €189.41 | |
| SV39036SW014 | 1 1/2" | 1 1/2" | 1 1/2" | 3.63" | 7.33" | 170 | Stainless Steel | 1000 psi WOG | €233.51 | |
| SV39036SW020 | 2" | 2" | 2" | 3.86" | 7.33" | 395 | Stainless Steel | 1000 psi WOG | €342.31 |
