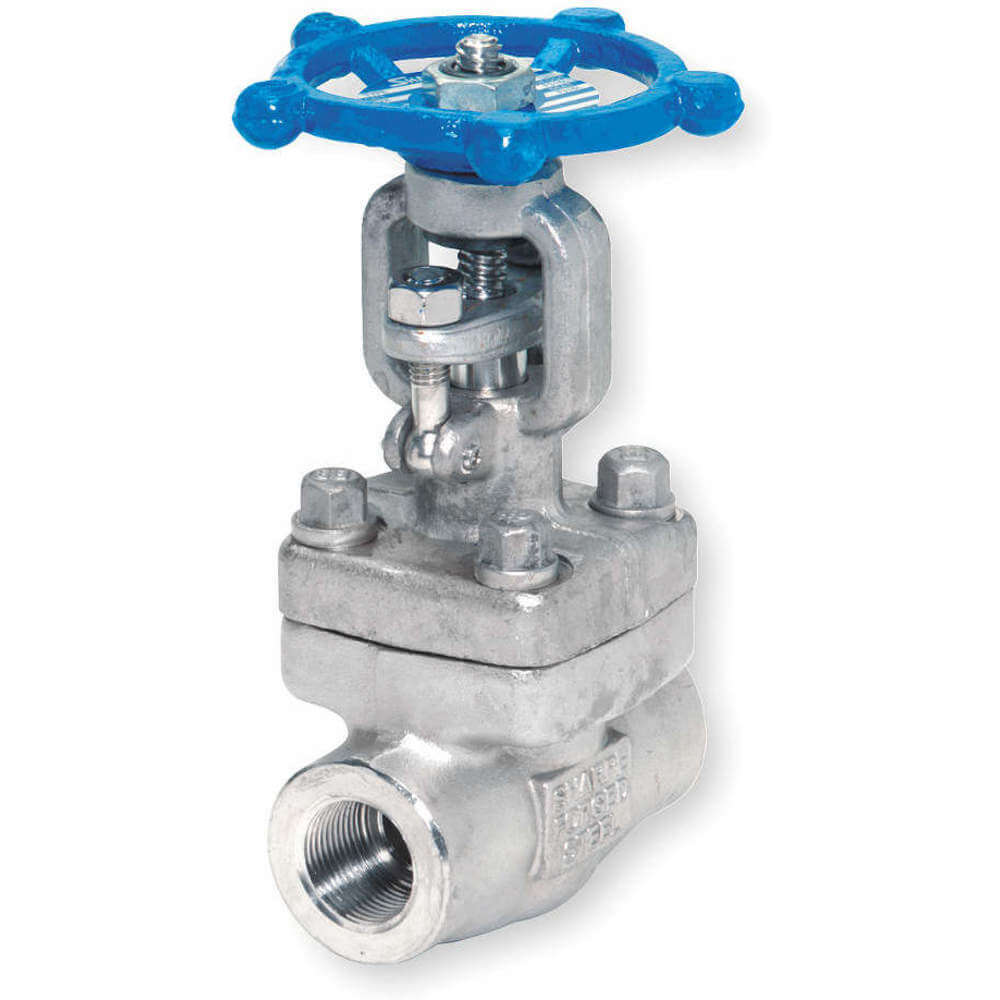

SHARPE VALVES SV34836TE010 Gate Valve Class 800 1 Inch Fnpt
Item: AB2YBKModel: SV34836TE010Cross Ref: 1PRJ6
7 In Stock
Ships within 2 days via
10.00% off
€1,012.49 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gate Valve |
| Body Material | Stainless Steel |
| Bonnet Material | 316L Stainless Steel |
| Bonnet Style | Bolted |
| Class | Class 800 |
| Coefficient Of Volume | 30 |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1" |
| Connection Size - Side 2 | 1" |
| Connection Type | FNPT x FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| For Media | Steam, Water |
| Grade | Grade 316L |
| Handle Height | 1.33" |
| Handle Material | Carbon Steel |
| Handle Type | Wheel |
| Inlet To Outlet Length | 4.328" |
| Max. Fluid Temp. | 850°F |
| Max. Pressure (cwp) | 1120 psi |
| Max. Steam Pressure | 1225 psi |
| Max. Water Pressure | 1600 psi |
| Media Temperature Range | -20°F to +400°F |
| Nominal Valve Size | 1" |
| Operating Temperature - Maximum | 400°F |
| Operating Temperature - Minimum | -20°F |
| Overall Length | 7.2" |
| Pipe Size | 1" |
| Seal Material | Graphite |
| Seat Material | Stainless Steel |
| Standards | Api 598, Api 602, Nace Mr0175 |
| Stem Grade | Grade 410 |
| Stem Material | 410 Stainless Steel |
| Stem Type | Rising |
| Top Of Handle To Inlet Center | 6 3/8" |
| Valve Series | 3483 Series |
| Valve Stem Type | Rising |
| Wedge Material | 316 Stainless Steel |
| Wedge Style | Solid |
Shipping Info:
| Ship weight (kg) | 4.12 |
| Ship height (cm) | 9.65 |
| Ship length (cm) | 21.08 |
| Ship width (cm) | 9.65 |
| HS code | 8481803055 |
| Country of Origin | CN |
Product Variants
| Model | Pipe Size | Top Of Handle To Inlet Center | Inlet To Outlet Length | Coefficient Of Volume | Body Material | Seal Material | Seat Material | Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SV34836TE004 | 1/2" | 5 1/8" | 3.156" | 7 | Stainless Steel | Graphite | Stainless Steel | FNPT x FNPT | €709.32 | |
| SV34836TE006 | 3/4" | 5.391" | 3.547" | 14 | Stainless Steel | Graphite | Stainless Steel | FNPT x FNPT | €760.01 | |
| SV34836TE012 | 1 1/4" | 7.031" | 5" | - | Stainless Steel | Graphite | Stainless Steel | FNPT x FNPT | €1,445.24 | |
| SV34836TE014 | 1 1/2" | 8 5/8" | 5" | 100 | Stainless Steel | Graphite | Stainless Steel | FNPT x FNPT | €1,818.72 | |
| SV34836TE020 | 2" | 9.062" | 5 1/8" | - | Stainless Steel | Graphite | Stainless Steel | FNPT x FNPT | €2,794.36 |
