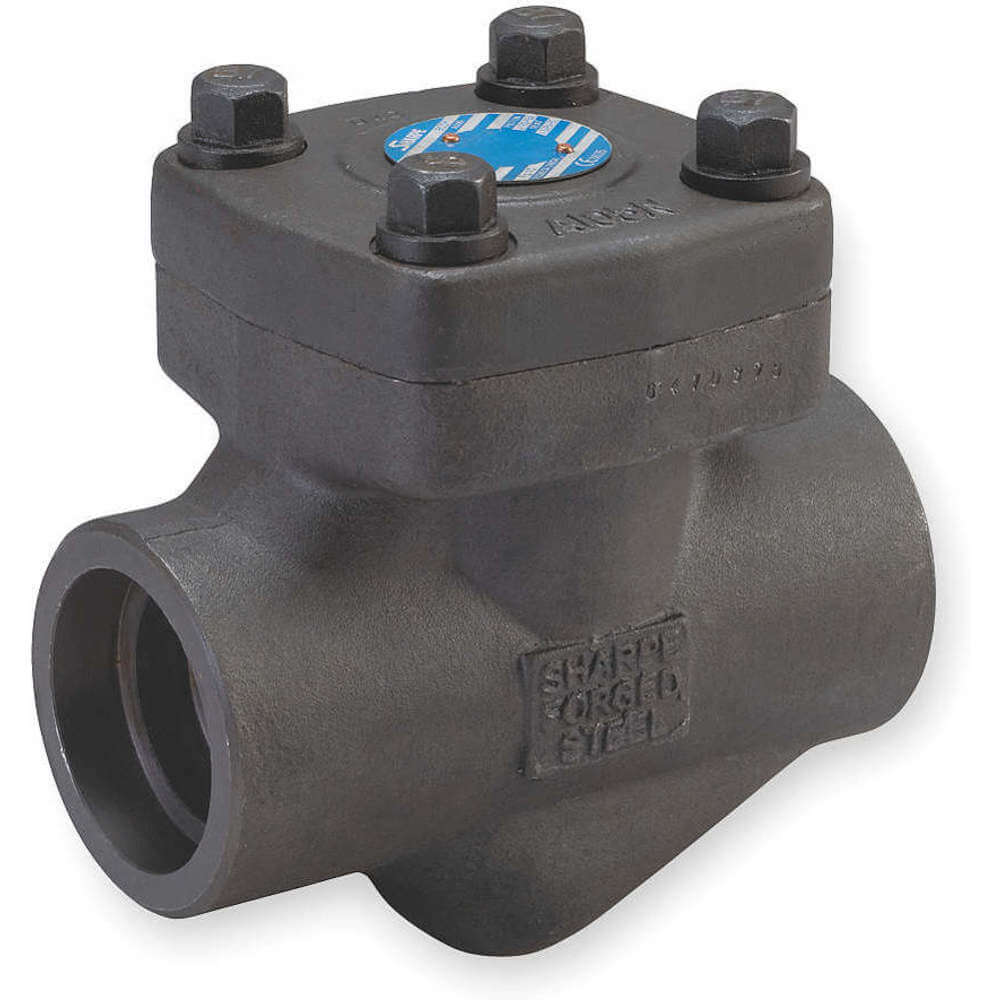

SHARPE VALVES SV24834SW006 Piston Check Valve Forged Carbon Steel
Item: AB2XYPModel: SV24834SW006Cross Ref: 1PPL9
7 In Stock
Ships within 2 days via
10.00% off
€180.37 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Piston Check Valve |
| 3-a Compliance | Not Rated |
| Body Material | Carbon Steel |
| Cap To Inlet Center | 2.094" |
| Cap To Inlet Center | 2-3/32" |
| Check Mechanism | Piston |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 3/4" |
| Connection Size - Side 2 | 3/4" |
| Connection Type | Socket x Socket |
| Connection Type - Side 1 | Socket |
| Connection Type - Side 2 | Socket |
| Cracking Pressure | 8 psi |
| Flow Coefficient | 3 |
| Flow Rate | 10 GPM |
| For Media | Steam, Water |
| Grade | Grade 316 |
| Height - Cap To Inlet Center | 2 1/8" |
| Includes Counterweight | No Counterweight |
| Length | 3 3/5" |
| Material | Forged Carbon Steel |
| Max. Pressure (cwp) | 1975 psi |
| Max. Pressure (steam) | Not Rated |
| Max. Temp. | 1000°F |
| Media Temperature Range | -20°F to +100°F |
| Mounting Orientation | Horizontal |
| Mounting Position | Horizontal |
| Operating Temperature - Maximum | 100°F |
| Operating Temperature - Minimum | -20°F |
| Overall Length | 3.58" |
| Pipe Size | 3/4" |
| Piston Material | Stainless Steel |
| Piston Material Grade | Grade 316 |
| Seal Material | 304 Stainless Steel, Graphite |
| Seat Material | Stellite |
| Silent Check | Standard |
| Size | 3/4" |
| Spring Material | Stainless Steel |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Inline |
| Valve Series | 2483 Series |
| Valve Ways | 2-Way |
Shipping Info:
| Ship weight (kg) | 1.5 |
| Ship height (cm) | 7.11 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 9.65 |
| HS code | 8481302090 |
| Country of Origin | CN |
Product Variants
| Model | Connection Type | Body Material | Pipe Size | Max. Temp. | Cracking Pressure | Cap To Inlet Center | Flow Rate | Mounting Position | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SV24834TE004 | FNPT x FNPT | 316L Stainless Steel | 1/2" | 100°F | 8 psi | 1.891" | 5.9 GPM | Horizontal | €177.38 | |
| SV24834TE006 | FNPT x FNPT | Carbon Steel | 3/4" | 1000°F | 8 psi | 2.094" | 10 GPM | Horizontal | €200.42 | |
| SV24834TE010 | FNPT x FNPT | 316L Stainless Steel | 1" | 1000°F | 10 psi | 2.484" | 16 GPM | Horizontal | €269.42 | |
| SV24834TE012 | FNPT x FNPT | 316L Stainless Steel | 1 1/4" | 1000°F | 24 psi | 2.797" | 28 GPM | Horizontal | €479.71 | |
| SV24834TE014 | FNPT x FNPT | 316L Stainless Steel | 1 1/2" | 1000°F | 24 psi | 3.391" | 38 GPM | Horizontal | €448.49 | |
| SV24834TE020 | FNPT | - | - | 1000°F | 43 psi | 3.906" | - | Horizontal | €537.59 | |
| SV24834SW004 | Socket x Socket | Carbon Steel | 1/2" | 1000°F | 8 psi | 1.891" | 5.9 GPM | Horizontal | €177.38 |
