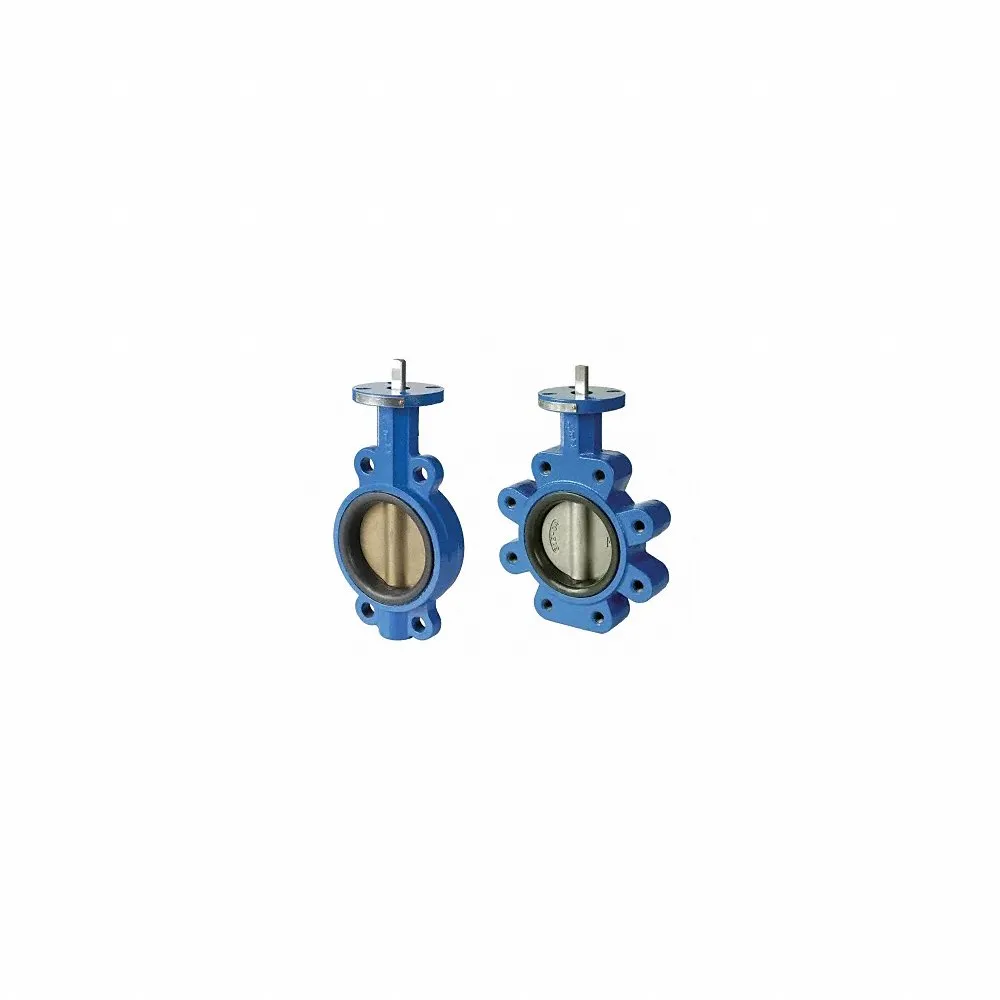

SHARPE VALVES 5322094880 Butterfly Valves, ABZ 396/397, Wafer Style, Ductile Iron, 3 Inch Pipe Size
Item: CU2NHDModel: 5322094880Cross Ref: 802F02
7 In Stock
Ships within 2 days via
13.00% off
€108.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Butterfly Valve |
| 3-a Certified | Not Rated |
| Body Material | Ductile Iron |
| Bolt Circle Dia. | 3 1/4" |
| Bolt Holes | 4 |
| Connection Type | Wafer |
| Disc Finish | Nickel Plated |
| Disc Material | Ductile Iron |
| Flow Coefficient | 487 |
| Flow Coefficient Cv | 487 |
| For Media | Water |
| Handle Type | Bare Stem |
| Included Disc Position Indicator | No Disc Position Indicator |
| Liner Material | EPDM |
| Max. Pressure (cwp) | 250 psi |
| Max. Water Pressure | 250 psi |
| No. Of Bolt Holes | 4 |
| Pipe Size | 3" |
| Stem Material | 416 Stainless Steel |
| Style | Wafer |
| Vacuum Service Rating | Not Rated |
| Valve Series | 396 Series, 397 Series |
Shipping Info:
| Ship weight (kg) | 4.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Disc Material | Liner Material | Bolt Circle Dia. | Style | Max. Water Pressure | Handle Type | Stem Material | Max. Pressure (cwp) | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 5352013260 | Stainless Steel | RPFTE | 1.126" | Wafer | 200 psi | Gear Operated Handwheel | Stainless Steel | 200 psi | €2,719.81 | |
| 5352013400 | Stainless Steel | RPFTE | 1.126" | Wafer | 200 psi | Gear Operated Handwheel | Stainless Steel | 200 psi | €3,481.52 | |
| 5352011360 | - | RTFE | 0.626" | Wafer | 200 psi | Lever | - | - | €715.12 | |
| 5352011500 | Stainless Steel | RPFTE | 0.748" | Wafer | 200 psi | Lever | Stainless Steel | 200 psi | €836.28 | |
| 5352011760 | Stainless Steel | RPFTE | 0.748" | Wafer | 200 psi | Lever | Stainless Steel | 200 psi | €1,139.61 | |
| 5351043403 | Stainless Steel | RPFTE | 1.126" | Lug | 200 psi | Gear Operated Handwheel | Stainless Steel | 200 psi | €5,411.67 | |
| 5351043423 | Stainless Steel | RPFTE | 1.126" | Lug | 200 psi | Gear Operated Handwheel | Stainless Steel | 200 psi | €7,161.32 |
