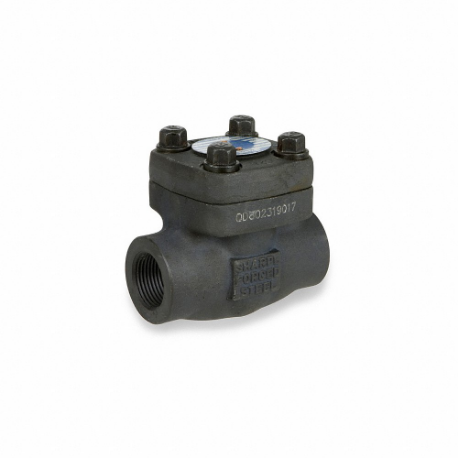

SHARPE VALVES 4371001350 Check Valve, Single Flow, Piston, Steel, 1/4 Inch Pipe/Tube Size, Threaded x Socket Weld | CU2NPF 802DW1

SHARPE VALVES 4371001350 Check Valve, Single Flow, Piston, Steel, 1/4 Inch Pipe/Tube Size, Threaded x Socket Weld

Item: CU2NPFModel: 4371001350Cross Ref: 802DW1
7 In Stock

Ships within 2 days via

€151.26
10.00% off
€136.13 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Check Valve
3-a Compliance Not Rated
Application Corrosives, Flammable, Process Piping, Toxic
Body Material Carbon Steel
Cap To Inlet Center 2 2/5"
Check Mechanism Piston
Connection Gender - Side 1 Female
Connection Gender - Side 2 Female
Connection Size - Side 1 1/4"
Connection Size - Side 2 1/4"
Connection Type FNPSM x FNPSM
Connection Type - Side 1 NPSM
Connection Type - Side 2 Npsm
Flow Coefficient (cv) 1.5
Flow Design Single
For Media Corrosive Chemicals
Height - Cap To Inlet Center 2 3/8"
Includes Counterweight No Counterweight
Length 3.109"
Max. Pressure (cwp) 1975 psi
Max. Temp. 100°F
Max. Water Pressure 1975 psi
Mechanism And Body Design Piston
Media Temperature Range -20°F to +100°F
Mounting Orientation Horizontal/Vertical
Operating Temperature - Maximum 100°F
Operating Temperature - Minimum -20°F
Overall Length 3.11"
Pipe Size, Tube Size 1/4"
Piston Material Stainless Steel
Piston Material Grade Grade 316
Seal Material 304 Stainless Steel, Graphite
Seat Material Metal
Silent Check Standard
Spring Material Stainless Steel
Spring Material Grade Grade 316
Vacuum Service Rating Not Rated
Valve Body Style Inline
Valve Series 2483 Series
Valve Ways 2-Way

Shipping Info:

Ship weight (kg) 1.4
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelConnection TypeBody MaterialPipe SizeMechanism And Body DesignSeat MaterialMounting OrientationPipe Size, Tube SizeMax. Water PressurePrice
SHARPE VALVES 4353013520 Check Valve, Single Flow, Inline Swing, Carbon Steel, 1 Inch Pipe/Tube Size, Threaded | CU2NJK 802DK8 4353013520FNPSM x FNPSMCarbon Steel-Inline SwingRubberHorizontal/Vertical1"1440 psi€208.50
SHARPE VALVES 4353013700 Check Valve, Single Flow, Inline Swing, Carbon Steel, 1 Inch Pipe/Tube Size, Threaded | CU2NJL 802DL7 4353013700FNPSM x FNPSMCarbon Steel-Inline SwingRubberHorizontal/Vertical1"-€210.09
SHARPE VALVES 4353013540 Check Valve, Single Flow, Inline Swing, Carbon Steel, 1 Inch Pipe/Tube Size, Threaded | CU2NJM 802DK9 4353013540FNPSM x FNPSMCarbon Steel-Inline SwingRubberHorizontal/Vertical1"2160 psi€208.50
SHARPE VALVES 4353013580 Check Valve, Single Flow, Inline Swing, Carbon Steel, 1 Inch Pipe/Tube Size, Threaded | CU2NJN 802DL1 4353013580FNPSM x FNPSMCarbon Steel-Inline SwingRubberHorizontal/Vertical1"720 psi€208.50
SHARPE VALVES 4353013620 Check Valve, Single Flow, Inline Swing, Carbon Steel, 2 Inch Pipe/Tube Size, Threaded | CU2NJP 802DL3 4353013620FNPSM x FNPSMCarbon Steel-Inline SwingRubberHorizontal/Vertical2"2160 psi€403.02
SHARPE VALVES 4345001000 Check Valve, Single Flow, Inline Swing, Carbon Steel, 2 Inch Pipe/Tube Size, Threaded | CU2NJQ 802DE3 4345001000FNPSM x FNPSMCarbon Steel-Inline SwingRubberHorizontal/Vertical2"3000 psi€213.88
SHARPE VALVES 4353013640 Check Valve, Single Flow, Inline Swing, Carbon Steel, 2 Inch Pipe/Tube Size, Threaded | CU2NJR 802DL4 4353013640FNPSM x FNPSMCarbon Steel-Inline SwingRubberHorizontal/Vertical2"720 psi€403.02
