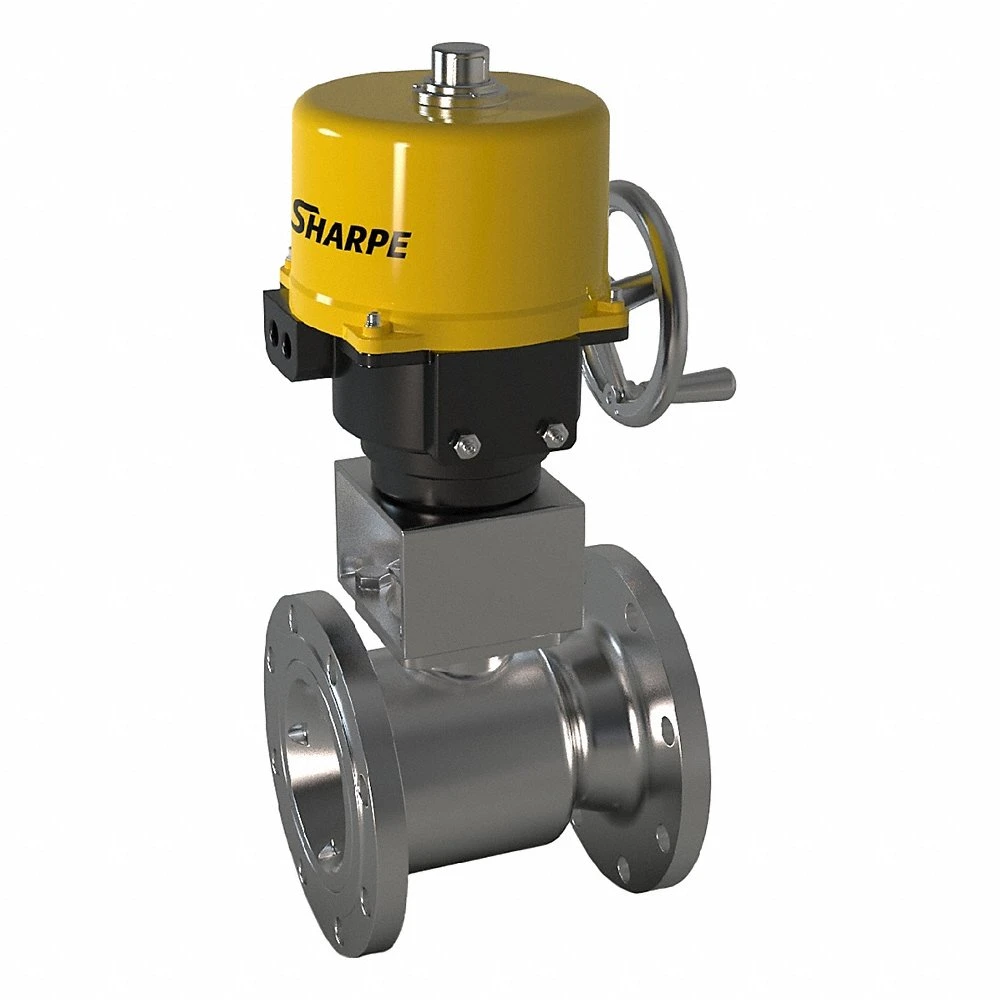

SHARPE VALVES 4350034780 Electrically Actuated Two-Way Ball Valve, 6 Inch, CF8M Stainless Steel, 120V, One-Piece
Get it by Tuesday, Sep 1
13.00% off
€12,030.09 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pneumatic |
| Actuator Cycle Time-90 Degrees | 16 sec. |
| Actuator Feature | Automatic Reset, Internally Fused, Manual Override, Position Indicator, Thermal Overload Protection |
| Ball Material | Stainless Steel |
| Ball Material Grade | Grade 316 |
| Ball Port Style | Standard Port |
| Body Material | Stainless Steel |
| Body Material Grade | Grade CF8M |
| Coefficient Of Volume(cv) | 1020 |
| Connection Type | Flange x Flange |
| Fail Safe Position | Fail Last |
| For Media | Steam, Water |
| Ip Rating | IP67 |
| Max. Operating Pressure | 275 psi |
| Max. Operating Pressure Differential | 275 psi |
| Max. Pressure Steam | 150 psi |
| Media Temp. | -50°F to +450°F |
| Nema Enclosure Rating | NEMA 4X |
| Nominal Valve Size | 6" |
| Seal Material | PTFE |
| Seat Material | RPTFE |
| Stem Material | Stainless Steel |
| Stem Material Grade | Grade 316 |
| Valve Body Style | Straight |
| Valve Construction | One-Piece |
| Valve Ways | 2 |
Shipping Info:
| Ship weight (kg) | 55.44 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 73.66 |
| Ship width (cm) | 25.4 |
| Country of Origin | TW |
