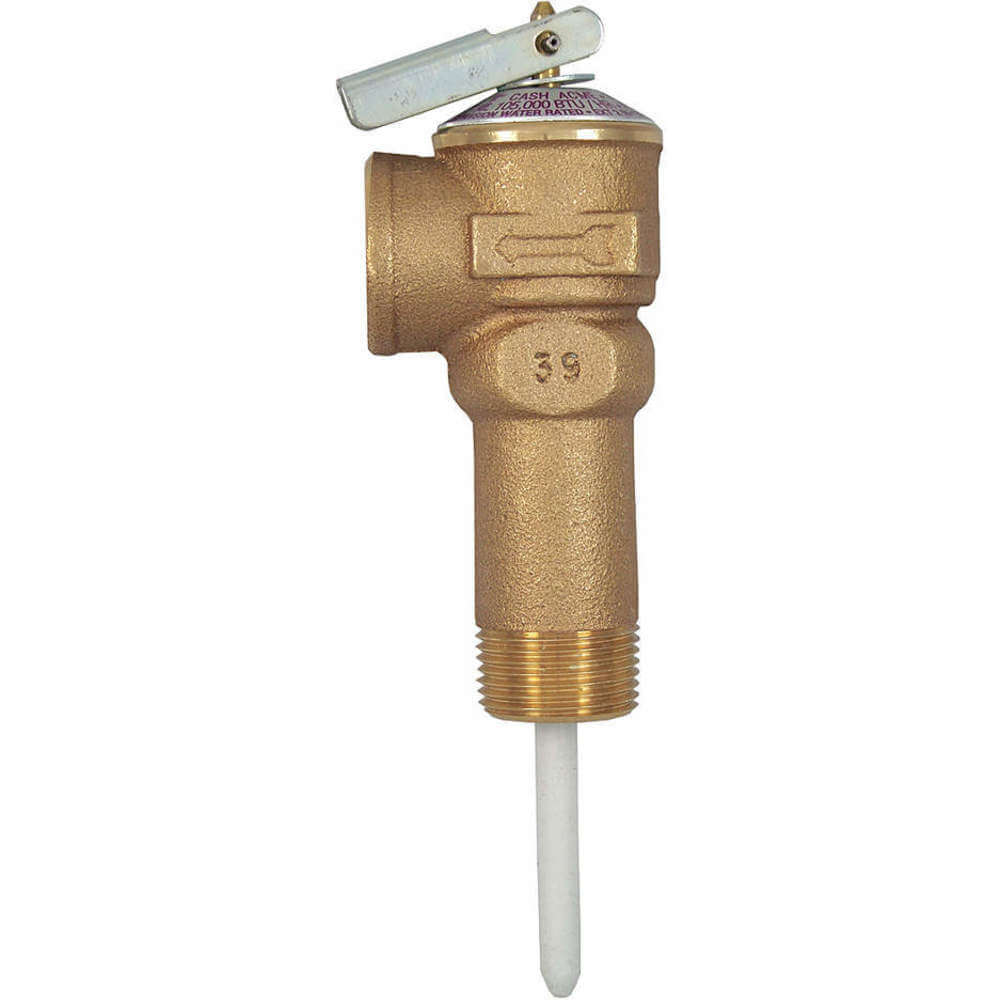

SHARKBITE 19783-0150 Temperature/Pressure Relief Valve 6-1/2 Inch Height x 1-15/32 Inch Width
Item: AH3FCVModel: 19783-0150Cross Ref: 31LC69
7 In Stock
Ships within 2 days via
10.00% off
€36.77 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Temperature and Pressure Relief Valve |
| Application | Water Heaters |
| Asme Section Code | Section Iv |
| Auto Re-seating | Yes |
| Body Height | 6 13/32" |
| Body Material | Cast Bronze |
| Body Width | 1 15/32" |
| Connection Type | MNPT x FNPT |
| Discharge Capacity | 500000 btuH |
| Factory Set Pressure | 150 psi |
| For Media | Water |
| Inlet Connection Size | 3/4" |
| Inlet Size | 3/4" |
| Inlet Type | MNPT |
| Max. Operating Temperature | 210°F |
| Max. Temp. | 210°F |
| Outlet Connection Size | 3/4" |
| Outlet Type | FNPT |
| Shank Length | 2.312" |
| Thermostat Length | 1 7/8" |
| Thermostat Length | 1-7/8" |
Shipping Info:
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 5.33 |
| Ship width (cm) | 4.06 |
| Country of Origin | US |
Product Details:
- Auto Re-Seating : Yes
Product Variants
| Product | Model | Body Height | Thermostat Length | Shank Length | Factory Set Pressure | Connection Type | Body Material | Max. Temp. | Discharge Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
16372-0150 | 11 5/16" | 7 7/8" | 1.187" | 150 psi | MNPT x FNPT | Cast Bronze | 210°F | 500000 btuH | €51.27 |
