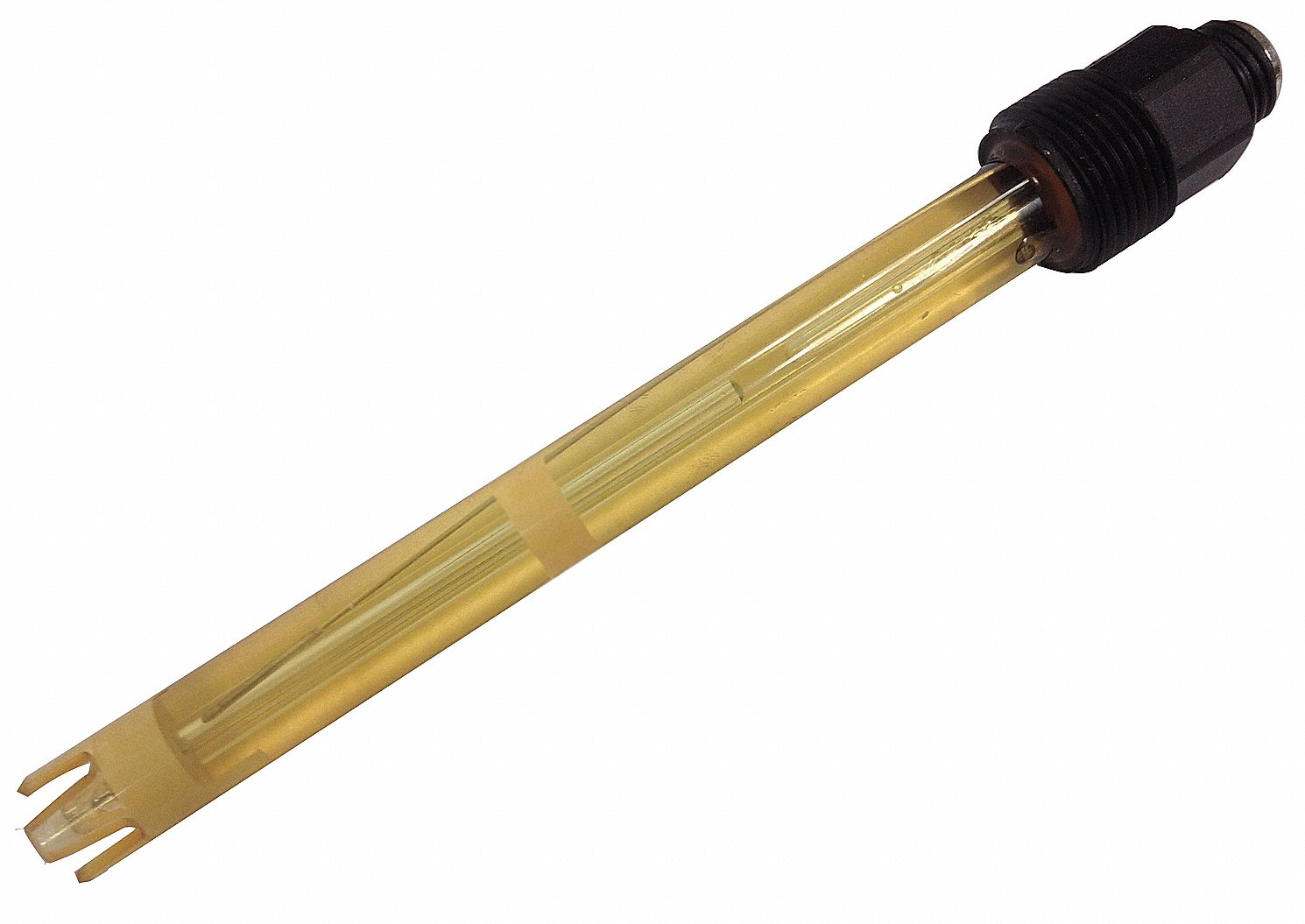

SENSOREX S224CD Ph Electrode 0 14 Ph, 0 Deg To 80 Deg C, Epoxy, Din13.5, Round, 12 mm Dia
Item: CU2MBFModel: S224CDCross Ref: 16Y965
7 In Stock
Ships within 2 days via
10.00% off
€218.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | PH Electrode |
| Amplifier | PHAMP-1 |
| Body Material | Epoxy |
| Connection Type | DIN |
| Connector | DIN13.5 |
| Diameter | 12 mm |
| Electrolyte | Sealed |
| Junction | Double |
| Length | 150 mm |
| Manufacturer Warranty Length | 1 yr. |
| Material | Epoxy |
| Measurement Range | 0 pH to 14 pH |
| Operating Temp. Range | 0°C to +80°C |
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | 32°F |
| Overall Length | 150 mm |
| Ph Range | 0 pH to 14 pH |
| Product Type | PH Electrode |
| Recommended Use | Industrial, Laboratory Applications |
| Reference | AG/AGCL |
| Shelf Life | 12 Months |
| Testing Parameter | PH |
| Tip Shape | Round |
| Type | PH Electrode |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 15.01 |
| Ship length (cm) | 1.19 |
| Ship width (cm) | 1.19 |
Product Variants
| Product | Model | Material | Junction | Tip Shape | Diameter | Body Material | Amplifier | Shelf Life | Cable Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S651CD | Plastic | Double | Flat | 22.86 mm | CPVC | Can Be Used With PHAMP-1 | 6 Months | - | €403.65 | |
 |
S450CD/BNC | Epoxy | Double | Flat | 15 mm | Epoxy | Can Be Used With PHAMP-1 | 6 Months | 30" | €274.53 | |
 |
S200CD/BNC | Epoxy | Double | Round | 12 mm | Epoxy | Can Be Used With PHAMP-1 | 12 Months | 30" | €196.67 | |
 |
S175CD/BNC | Glass | Double | Spear | 12 mm | Glass | Can Be Used With PHAMP-1 | 12 Months | 30" | €275.35 | |
 |
S656CD | Plastic | Double | Flat | 22.86 mm | CPVC | Can Be Used With PHAMP-1 | 6 Months | - | €397.58 | |
 |
S100C/BNC | Epoxy | Single | Round | 9.5 mm | Epoxy | Can Be Used With PHAMP-1 | 12 Months | 30" | €165.73 | |
 |
S1010CD | Epoxy | Double | Round | 12 mm | Epoxy | Can Be Used With PHAMP-1 | 12 Months | 30" | €515.52 |
