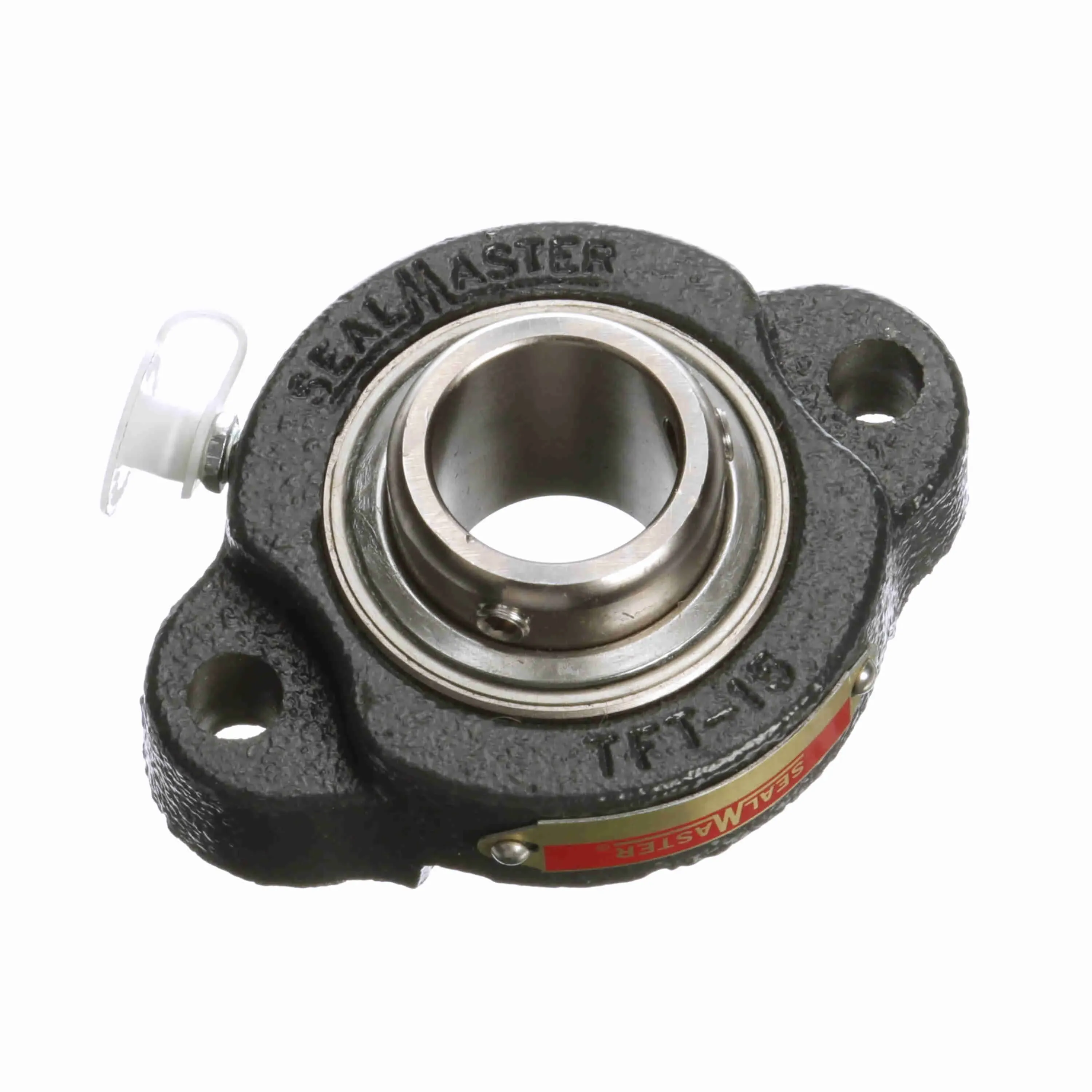

SEALMASTER TFT-PN16 704347 Flange-Mount Ball Bearing Unit, 1 Inch Bore
Get it by Tuesday, Sep 1
€225.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 3/8" |
| Bolt Spacing | 3" |
| Bore Dia. | 1" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 2801 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.69" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Two Bolt |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | PN-16 |
| Inside Ring Outside Dia. | 1 3/8" |
| Ip Rating | IP69K |
| Length Through Bore | 1 3/8" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 2700 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | Corrosion Resistant |
| Outer Ring Land Profile | Standard |
| Overall Height | 1.438" |
| Overall Length | 3 3/4" |
| Overall Width | 2 3/4" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Multi-Lip Contact Seal |
| Setscrew Torque | 45 lbs.-in. |
| Shaft Locking Type | Concentric |
| Size Code | 2-015 |
| Static Load Rating | 1651 lbs. |
| Vibration Frequency Fundamental Train | 0.0068 cPS |
| Vibration Frequency Inner Ring Defect | 0.0985 cPS |
| Vibration Frequency Outer Ring Defect | 0.0682 cPS |
| Vibration Frequency Roller Spin | 0.0442 cPS |
Shipping Info:
| Ship weight (kg) | 0.63 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 10.01 |
| Country of Origin | US |
Product Variants
| Product | Model | Seal Type | Bore Dia. | Overall Height | Housing Type | Rolling Element | Bearing Insert Finish | Foot Height | Length Through Bore | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TFT-19TC-1 | Single Lip Contact Seal | 1 3/16" | 1.67" | Flange, Two Bolt | Ball Bearing | Black Oxide | 0.81" | 1.61" | €199.17 | |
 |
TFT-15TC-1 ARZ | Single Lip Contact Seal | 15/16" | 1.498" | Flange, Two Bolt | Ball Bearing | Black Oxide | 0.69" | 1 12/25" | €193.07 | |
 |
TFT-16TC-1 | Single Lip Contact Seal | 1" | 1.498" | Flange, Two Bolt | Ball Bearing | Black Oxide | 0.69" | 1 12/25" | €185.68 | |
 |
TFT-15TC-2 ARZ | - | - | - | - | - | - | - | - | €275.93 | |
|
TFT-16TC-1 CR | Contact Seal | - | - | Two Bolt Flange | Ball | - | - | - | €246.64 | RFQ
|
 |
TFT-18TC-1 | Single Lip Contact Seal | 1 1/8" | 1.67" | Flange, Two Bolt | Ball Bearing | Black Oxide | 0.81" | 1.61" | €200.26 | |
 |
TFT-20TC-2 | Contact Seal | 1 1/4" | 1.762" | - | - | - | - | - | €242.87 |
