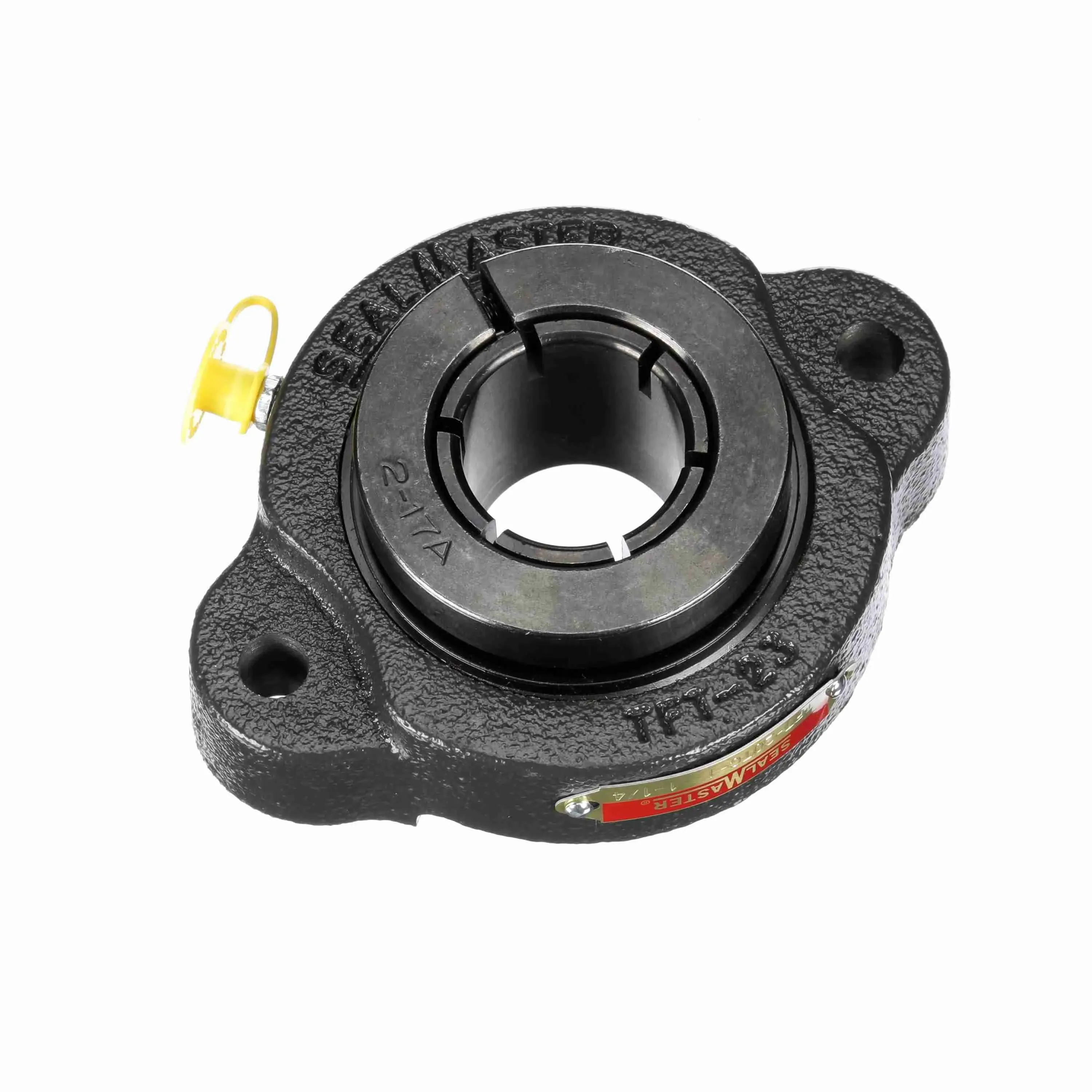

SEALMASTER TFT-20TC-1 700952 Flange Bearing, 2 Bolt, 1.25 Inch Dia, Skwezloc Locking, Cast Iron Housing, Contact Seal
Get it by Tuesday, Sep 1
€233.66 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 3/8" |
| Bolt Spacing | 3 15/16" |
| Bore Dia. | 1 1/4" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 5782 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 22/25" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Two Bolt |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 2-14TC |
| Inside Ring Outside Dia. | 1.859" |
| Length Through Bore | 1.81" |
| Locking Collar Outside Dia. | 2 14/25" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 4650 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 1.81" |
| Overall Length | 4 22/25" |
| Overall Width | 3.69" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact Seal |
| Shaft Locking Type | Concentric |
| Size Code | 2-17 |
| Static Load Rating | 3493 lbs. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0905 cPS |
| Vibration Frequency Outer Ring Defect | 0.0595 cPS |
| Vibration Frequency Roller Spin | 0.0386 cPS |
Shipping Info:
| Ship weight (kg) | 1.3 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 12.7 |
| Country of Origin | US |
Product Variants
| Product | Model | Seal Type | Bore Dia. | Overall Height | Housing Type | Rolling Element | Bearing Insert Finish | Foot Height | Length Through Bore | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TFT-19TC-1 | Single Lip Contact Seal | 1 3/16" | 1.67" | Flange, Two Bolt | Ball Bearing | Black Oxide | 0.81" | 1.61" | €199.17 | |
 |
TFT-15TC-1 ARZ | Single Lip Contact Seal | 15/16" | 1.498" | Flange, Two Bolt | Ball Bearing | Black Oxide | 0.69" | 1 12/25" | €193.07 | |
 |
TFT-16TC-1 | Single Lip Contact Seal | 1" | 1.498" | Flange, Two Bolt | Ball Bearing | Black Oxide | 0.69" | 1 12/25" | €185.68 | |
 |
TFT-15TC-2 ARZ | - | - | - | - | - | - | - | - | €275.93 | |
|
TFT-16TC-1 CR | Contact Seal | - | - | Two Bolt Flange | Ball | - | - | - | €246.64 | RFQ
|
 |
TFT-18TC-1 | Single Lip Contact Seal | 1 1/8" | 1.67" | Flange, Two Bolt | Ball Bearing | Black Oxide | 0.81" | 1.61" | €200.26 | |
 |
TFT-20TC-2 | Contact Seal | 1 1/4" | 1.762" | - | - | - | - | - | €242.87 |
