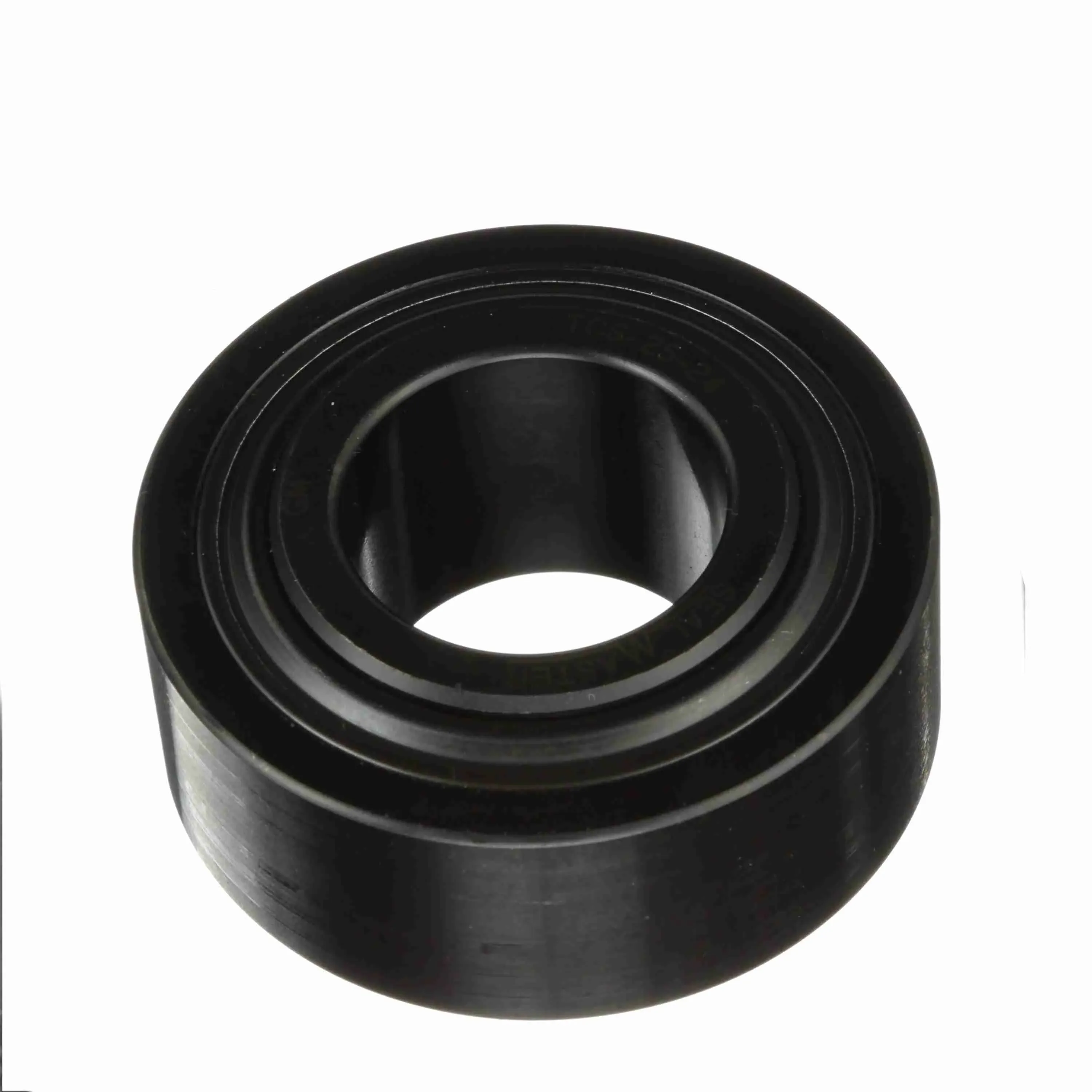

SEALMASTER TCS-25-24 701124 Ball Bearing, Black Oxided, No Locking Lock, 1.5 Inch
Get it by Tuesday, Dec 23
€188.48 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bore Dia. | 1 1/2" |
| Bore Shape | Straight |
| Cage Material | Molded Nylon |
| Centerline To Front Face | 0.717" |
| Duty/series | Standard Series |
| Dynamic Radial Load Capacity | 7340 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | No |
| Housing Type | Insert Only |
| Htc | 8482.10.5052 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 1.437" |
| Inner Race Profile | Wide Inner Ring |
| Inner Ring Outside Diameter | 2.06" |
| Insert Material | Steel |
| Insert Material Finish | Black Oxide |
| Insert Material Grade | 52100 |
| Internal Clearance | Standard |
| Locking Type | No Locking |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 400 RPM |
| Measure Units | Inch |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Race Od | 3.149" |
| Outer Race Profile | Cylindrical |
| Outer Race Width | 1.188" |
| Outer Ring Land Profile | Standard |
| Overall Width | 1.437" |
| Platform | Gold Line Ball Bearing |
| Precision Rating | Abec 1 |
| Radial Static Load Capacity | 4467 lbs. |
| Radius | 1/25" |
| Retainer Type | Land Riding Retainer |
| Rolling Element | Ball Bearing |
| Series | Tcs |
| Type Of Seal | Triple Lip Contact Seal |
Shipping Info:
| Ship weight (kg) | 0.75 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 9.22 |
| Ship width (cm) | 9.22 |
| Country of Origin | MX |
