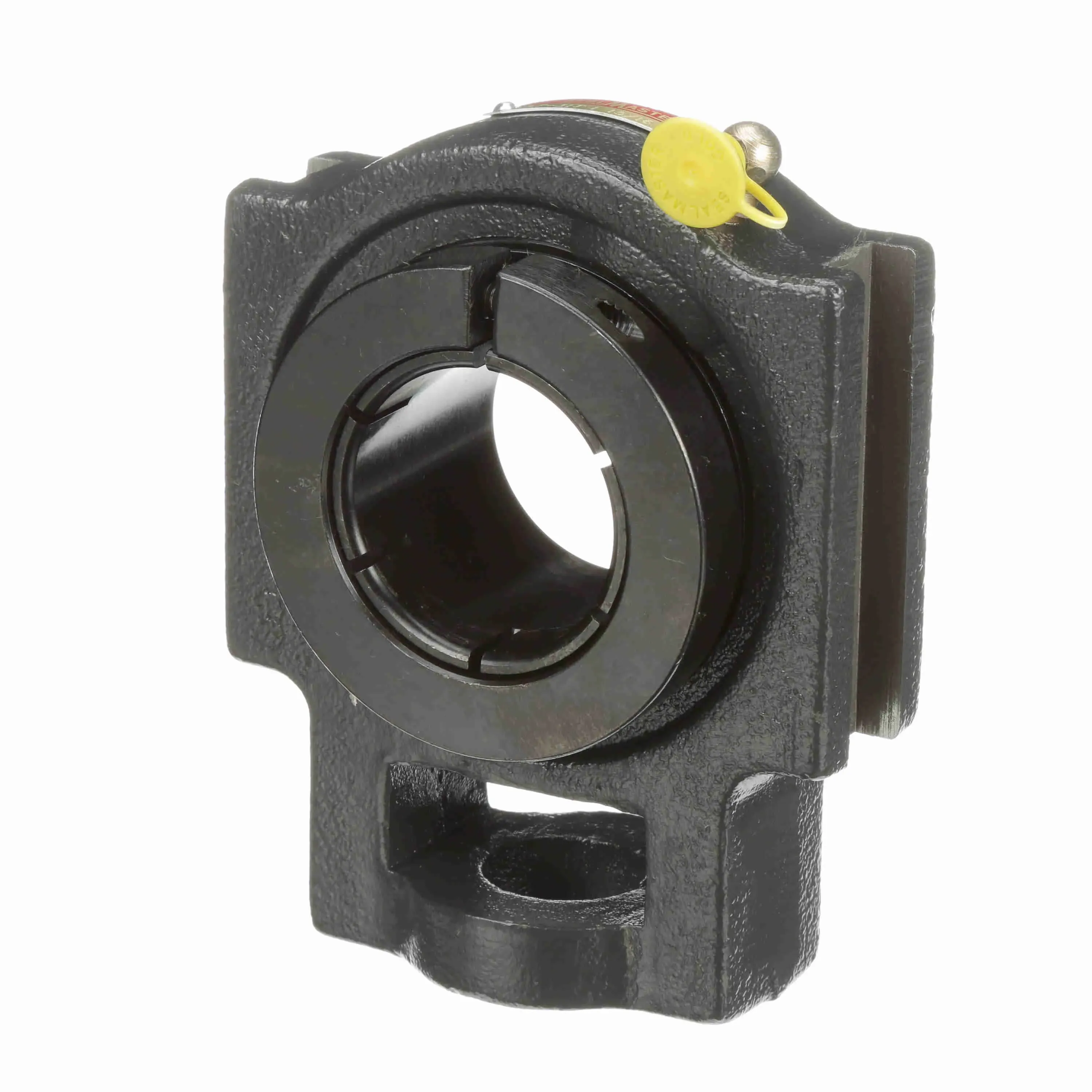

SEALMASTER ST-22TC 705911 Take Up Bearing, 1-3/8 Inch Bore, 17/32 Inch Slot Width, 3.5 Inch Slot to Slot Distance
Item: BE4RDUModel: ST-22TCCross Ref: 705911
7 In Stock
Ships within 2 days via
€570.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Take Up Bearing |
| Duty Series | Standard |
| Fixed Vs. Expansion | Fixed |
| Grease Type | Goldplex-HP |
| Housing Base | Solid |
| Housing Material | Cast Iron |
| Housing Type | Take Up |
| Htc | 8483.20.4040 |
| Locking Device | Skwezloc Concentric |
| Max. Operating Temperature | 250°F |
| Product Type | Sealmaster Gold-Standard |
| Retainer Type | Metal Land Riding |
| Rolling Element | Ball |
| Seal Flinger | No |
| Seal Type | Contact Seal |
| Shaft Size | 1 3/8" |
Shipping Info:
| Ship weight (kg) | 1.94 |
| Ship height (cm) | 5.23 |
| Ship length (cm) | 11.13 |
| Ship width (cm) | 17.3 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Overall Length | Overall Width | Overall Height | Seal Type | Max. Speed | Dynamic Load Capacity | Slot Spacing | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ST-39C | 2 7/16" | 7.63" | 2 14/25" | 5 3/4" | Single Lip Contact Seal | 2550 RPM | 11789 lbs. | 5 1/8" | €510.52 | |
 |
ST-10C | - | - | - | - | Contact Seal | - | - | - | €951.79 | |
 |
ST-32R HT | - | - | - | - | Standard Felt Seal | - | - | - | €2,357.95 | |
 |
ST-208 | 40 mm | 5.69" | 2.13" | 4 1/2" | Felt Labyrinth Seal | 4150 RPM | 7340 lbs. | 4" | €401.45 | |
|
ST-39 HI | - | - | - | - | Standard Felt Seal | - | - | - | €1,781.60 | |
 |
ST-17 | - | - | - | - | Standard Felt Seal | - | - | - | €329.67 | |
 |
ST-20RC | 1 1/4" | 4 11/25" | 1 3/4" | 4" | Single Lip Contact Seal | 5450 RPM | 4381 lbs. | 3 1/2" | €300.84 |
