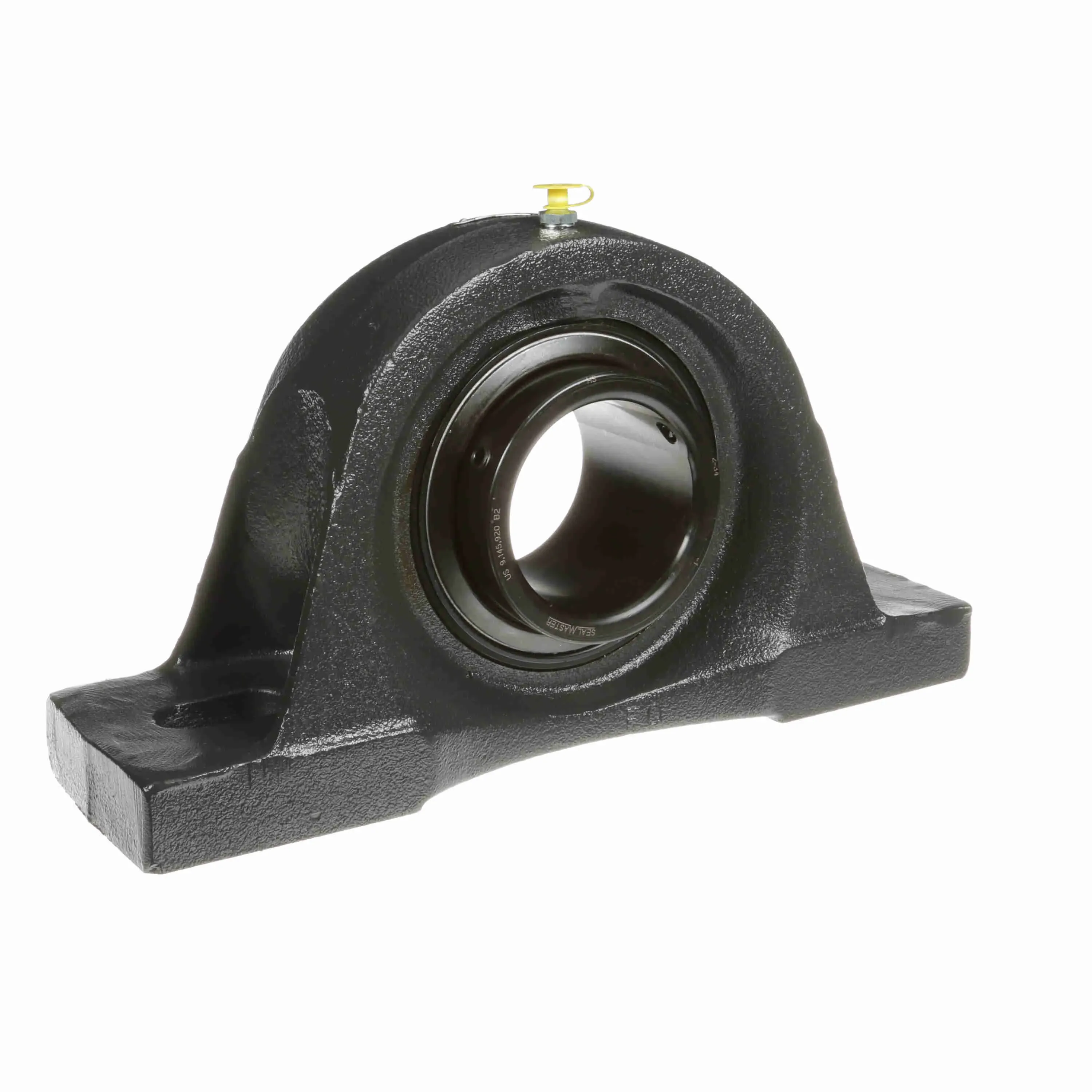

SEALMASTER SP-52 700631 Pillow Block Ball Bearing Unit, 2-Bolt Base, 3-1/4 Inch Bore
Get it by Monday, Dec 22
€2,931.94 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Base Length | 15" |
| Base To Center Height | 4" |
| Base Width | 4 1/4" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bearing Type | Standard Duty |
| Bolt Size | 7/8" |
| Bolt Spacing Min | 9.63" |
| Bore Dia. | 3 1/4" |
| Bore Shape | Straight |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 2.031" |
| Duty Series | Standard |
| Dynamic Load Capacity | 18681 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1 1/4" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/4" |
| Grease Fitting Thread Type | NPT |
| Grease Type | Goldplex-HP |
| Height | 4.88" |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Dia. | 4.156" |
| Inner Ring Outside Diameter | 4.156" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert | 2-34 |
| Length | 9.88" |
| Length Through Bore | 3.248" |
| Locking Device | Setscrew |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Speed | 2125 RPM |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 8.06" |
| Overall Length | 15" |
| Overall Width | 4 1/4" |
| Product Line | Sealmaster Gold Standard |
| Radial Clearance | Standard |
| Retainer Type | Metal Land Riding |
| Seal Flinger | Yes |
| Setscrew Torque | 350 lbs.-in. to 450 lbs.-in. |
| Shaft Locking Type | Set Screw |
| Shaft Size | 3 1/4" |
| Size Code | 2-37 |
| Static Load Rating | 14496 lbs. |
| Width | 17 1/4" |
Shipping Info:
| Ship weight (kg) | 20.01 |
| Ship height (cm) | 43.82 |
| Ship length (cm) | 25.1 |
| Ship width (cm) | 12.4 |
| Country of Origin | US |
Product Variants
| Product | Model | Shaft Locking Type | Bore Dia. | Overall Length | Overall Width | Overall Height | Seal Type | Insert | Max. Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SP-25C | - | - | - | - | - | Contact Seal | - | - | €1,737.20 | |
|
SP-24C | Set Screw | 1 1/2" | 8 1/2" | 2.38" | 4 14/25" | Single Lip Contact Seal | 2-18C | 4150 RPM | €353.35 | |
|
SP-47C | Set Screw | 2 15/16" | 13" | 3.38" | 7.19" | - | 2-215C | 2100 RPM | €1,246.01 | |
 |
SP-31 CXU | - | - | - | - | - | - | - | - | €486.17 | |
 |
SP-23 CSK | - | - | - | - | - | Standard Felt Seal | - | - | €455.12 | |
 |
SP-14C | - | - | - | - | - | - | - | - | €266.55 | |
 |
SP-31 | Set Screw | 1 15/16" | 10 1/2" | 2 1/2" | 5.31" | Felt Labyrinth Seal | 2-115 | 3550 RPM | €463.00 |
