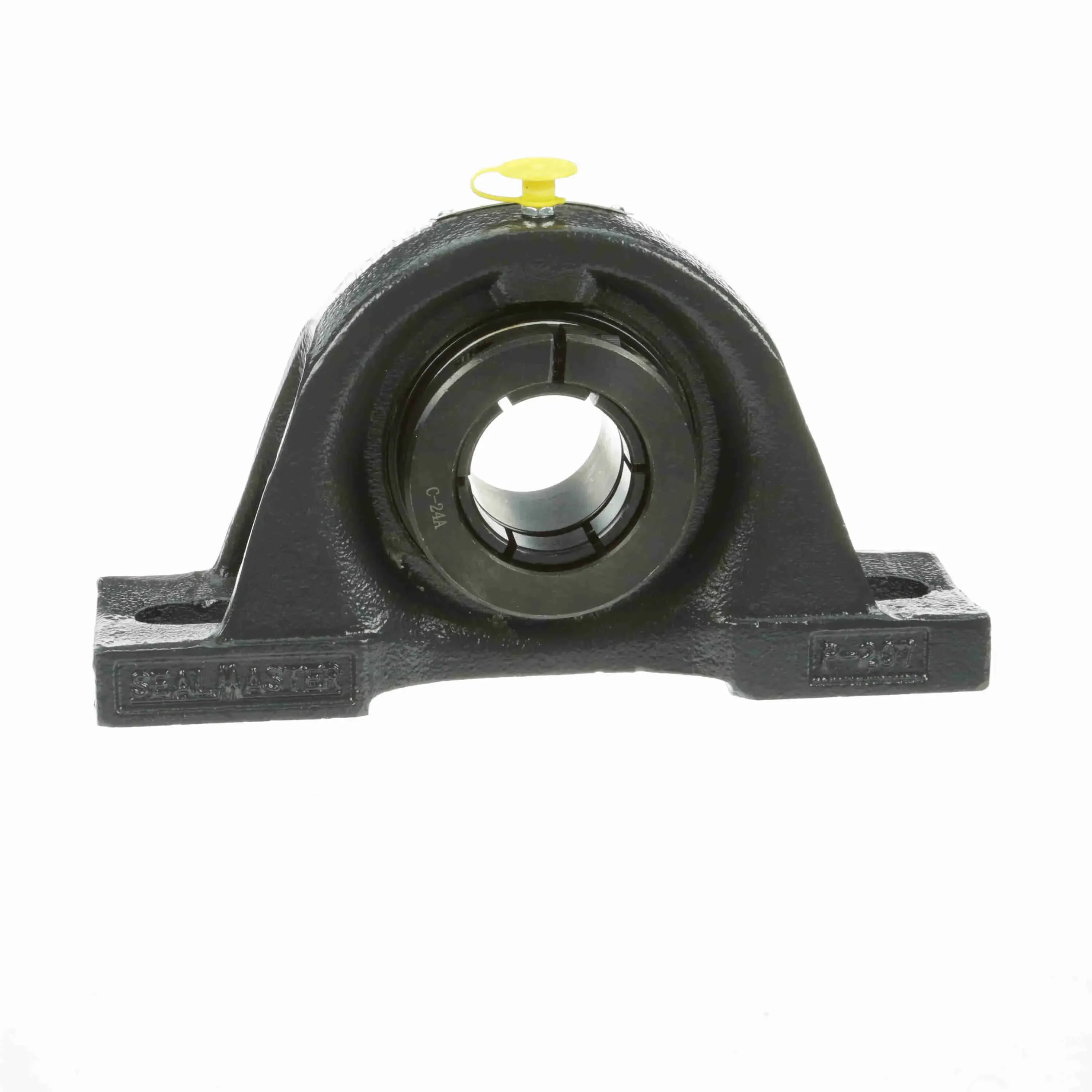

SEALMASTER SP-24T 705519 Pillow Block Ball Bearing Unit, 2-Bolt Base, 1-1/2 Inch Bore
Get it by Wednesday, Feb 25
€360.76 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Base Length | 8 1/2" |
| Base To Center Height | 2 5/16" |
| Base Width | 2.38" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 5/8" |
| Bolt Spacing | 6 1/2" |
| Bolt Spacing Max | 7.13" |
| Bolt Spacing Min | 5 22/25" |
| Bore Dia. | 1 1/2" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.31" |
| Dynamic Load Capacity | 7340 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 3/4" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.07" |
| Insert | 2-18T |
| Length Through Bore | 2" |
| Locking Collar Outside Diameter | 2 3/4" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 5850 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 4 14/25" |
| Overall Length | 8 1/2" |
| Overall Width | 2.38" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Shaft Locking Type | Concentric |
| Size Code | 2-19 |
| Static Load Rating | 4467 lbs. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0909 cPS |
| Vibration Frequency Outer Ring Defect | 0.0591 cPS |
| Vibration Frequency Roller Spin | 0.0376 cPS |
Shipping Info:
| Ship weight (kg) | 3.62 |
| Ship height (cm) | 13.18 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 6.05 |
| Country of Origin | US |
Product Variants
| Product | Model | Shaft Locking Type | Bore Dia. | Overall Length | Overall Width | Overall Height | Seal Type | Insert | Max. Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SP-13 | - | - | - | - | - | Standard Felt Seal | - | - | €334.55 | |
 |
SP-14 | Set Screw | 7/8" | 7" | 2" | 3.31" | Felt Labyrinth Seal | 2-014 | 6350 RPM | €266.55 | |
 |
SP-14C | - | - | - | - | - | - | - | - | €266.55 | |
 |
SP-14C CR | - | - | - | - | - | Contact Seal | - | - | €314.77 | |
 |
SP-15 | - | - | - | - | - | - | - | - | €266.55 | |
 |
SP-15C | - | - | - | - | - | - | - | - | €266.55 | |
 |
SP-15T | - | - | - | - | - | - | - | - | €251.84 |
