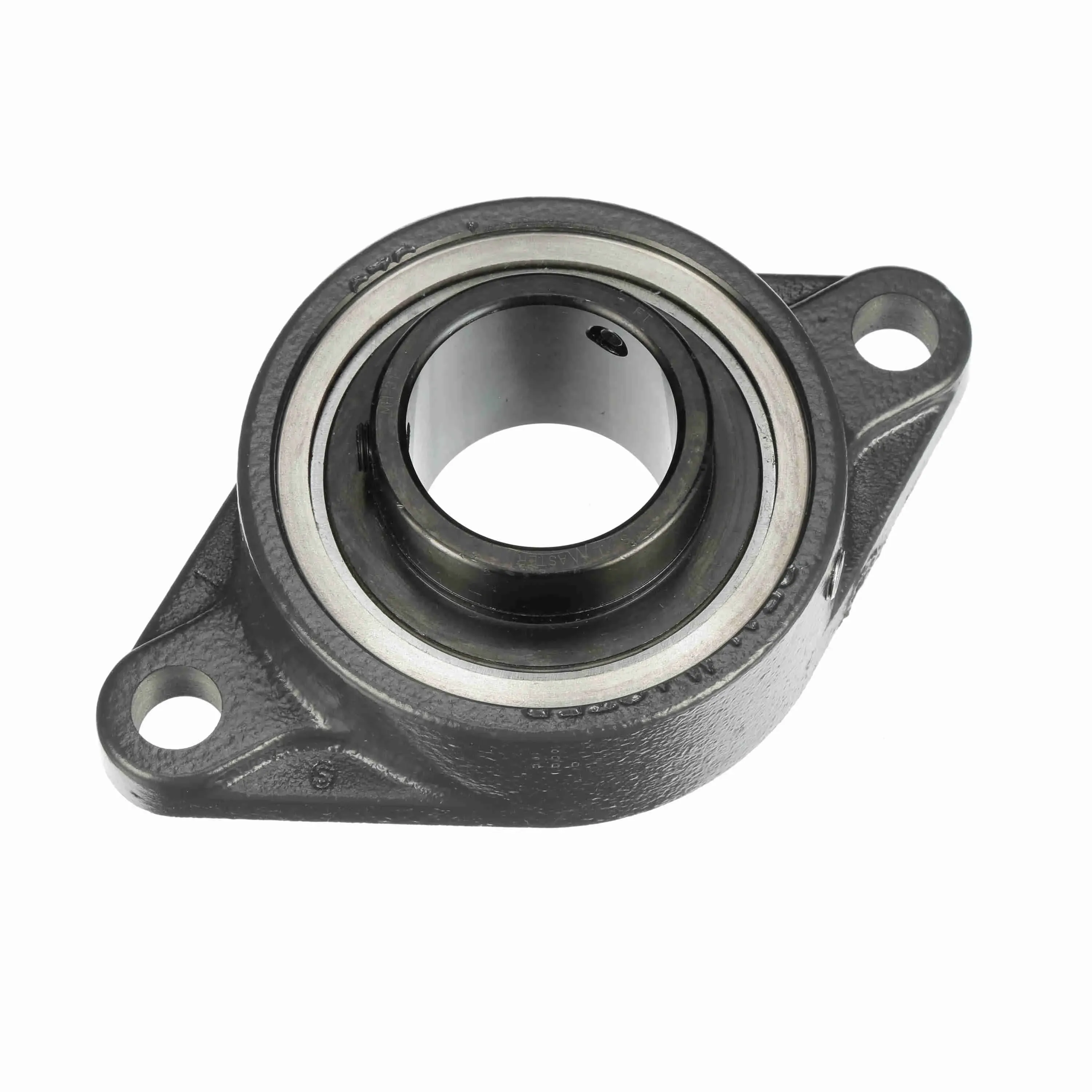

SEALMASTER SFTMH-31 711635 Mounted Cast Iron Two Bolt Flange Ball Bearing
Get it by Wednesday, Dec 24
€212.61 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 5/8" |
| Bolt Spacing | 6 3/16" |
| Bore Dia. | 1 15/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 7889 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 14/25" |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Two Bolt |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.469" |
| Insert | MH-31 |
| Length Through Bore | 2.031" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 3000 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 2.156" |
| Overall Height To End Cap | 2.98" |
| Overall Length | 7 11/25" |
| Overall Width | 4 14/25" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact Seal |
| Shaft Locking Type | Set Screw |
| Size Code | 2-115 |
| Static Load Rating | 5216 lbs. |
Shipping Info:
| Ship weight (kg) | 2.1 |
| Ship height (cm) | 5.84 |
| Ship length (cm) | 12.45 |
| Ship width (cm) | 19.81 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Housing Material | Price | |
|---|---|---|---|---|---|
 |
SFTMH-32T | - | - | €1,151.85 | |
 |
SFTMH-20 | - | - | €429.84 | |
 |
SFTMH-27T | 1 11/16" | Cast Iron | €208.38 | |
 |
SFTMH-24 | - | - | €770.30 | |
 |
SFTMH-23 | 1 7/16" | Cast Iron | €146.40 | |
 |
SFTMH-31T CSK | 1 15/16" | Cast Iron | €234.69 | |
 |
SFTMH-23T CSK | 1 7/16" | Cast Iron | €166.72 |
