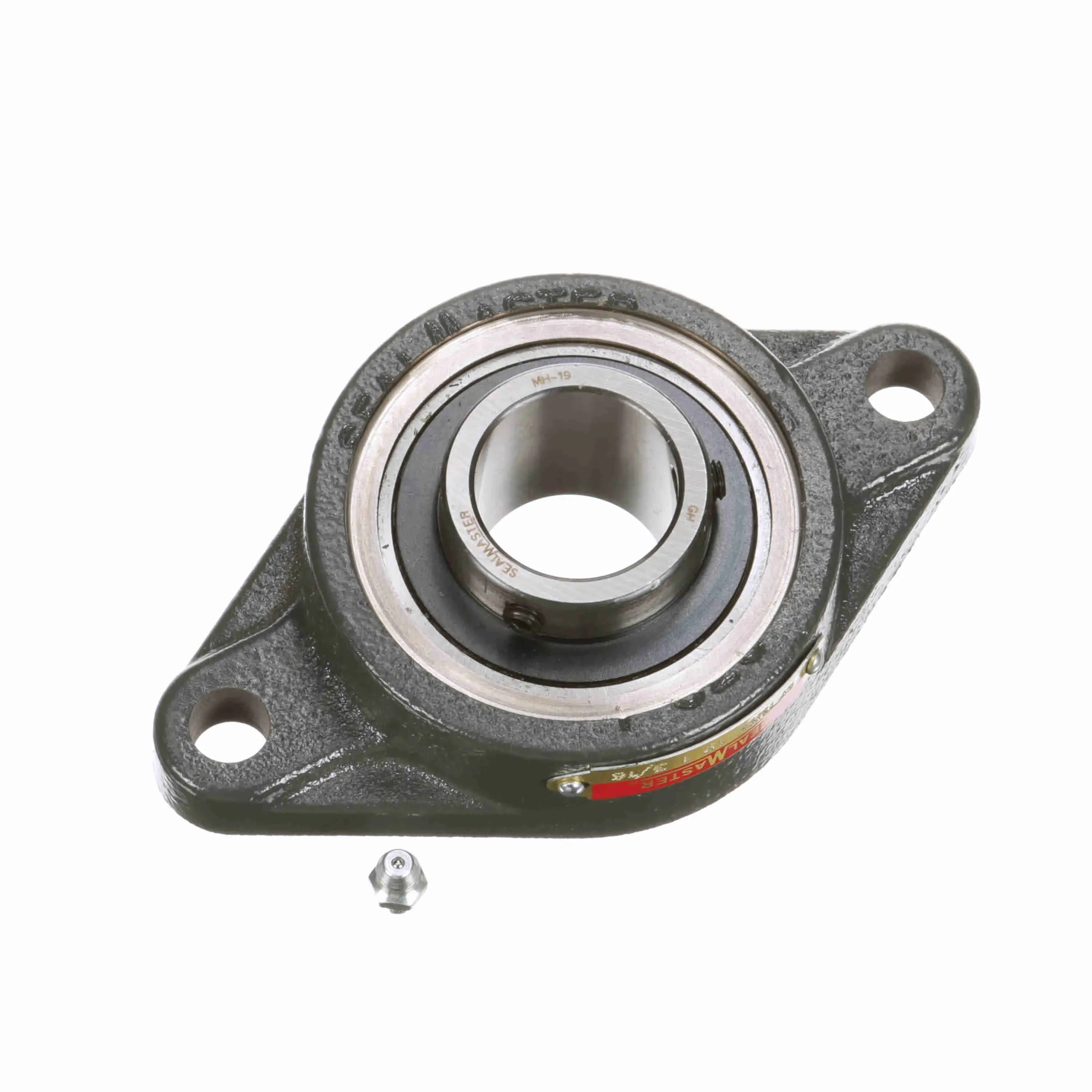

SEALMASTER SFTMH-19 711623 Mounted Cast Iron Two Bolt Flange Ball Bearing
Get it by Tuesday, Sep 1
€121.85 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 7/16" |
| Bolt Spacing | 4.596" |
| Bore Dia. | 1 3/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 4390 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.53" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Two Bolt |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | MH-19 |
| Inside Ring Outside Dia. | 1.586" |
| Length Through Bore | 1.567" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 4500 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 1.563" |
| Overall Height To End Cap | 2.42" |
| Overall Length | 5 14/25" |
| Overall Width | 3 1/4" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact Seal |
| Setscrew Torque | 85 lbs.-in. |
| Shaft Locking Type | Set Screw |
| Size Code | 206 |
| Static Load Rating | 2567 lbs. |
| Vibration Frequency Fundamental Train | 0.0067 cPS |
| Vibration Frequency Inner Ring Defect | 0.0905 cPS |
| Vibration Frequency Outer Ring Defect | 0.0595 cPS |
| Vibration Frequency Roller Spin | 0.0385 cPS |
Shipping Info:
| Ship weight (kg) | 0.92 |
| Ship height (cm) | 9.4 |
| Ship length (cm) | 15.49 |
| Ship width (cm) | 4.32 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Seal Type | Length Through Bore | Lubrication Type | Bolt Size | Overall Height | Foot Height | Grease Fitting Thread Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SFTMH-32T | 2" | Contact Seal | 3 5/32" | Relubricatable | - | - | - | - | €1,151.85 | |
 |
SFTMH-20 | - | - | - | - | - | - | - | - | €429.84 | |
 |
SFTMH-27T | 1 11/16" | Single Lip Contact Seal | 2" | Lithium Complex NLGI 2 Grease | 9/16" | 2.109" | 14/25" | 1/4"-28 | €208.38 | |
 |
SFTMH-24 | - | - | - | - | - | - | - | - | €770.30 | |
 |
SFTMH-31T CSK | 1 15/16" | Single Lip Contact Seal | 2.17" | Lithium Complex NLGI 2 Grease | 5/8" | 2.219" | 14/25" | 1/8" | €234.69 | |
 |
SFTMH-23T CSK | 1 7/16" | Single Lip Contact Seal | 1.81" | Lithium Complex NLGI 2 Grease | 1/2" | 1.81" | 14/25" | 1/4"-28 | €166.72 | |
 |
SFTMH-208T | 40 mm | - | - | - | - | - | - | - | €294.69 |
