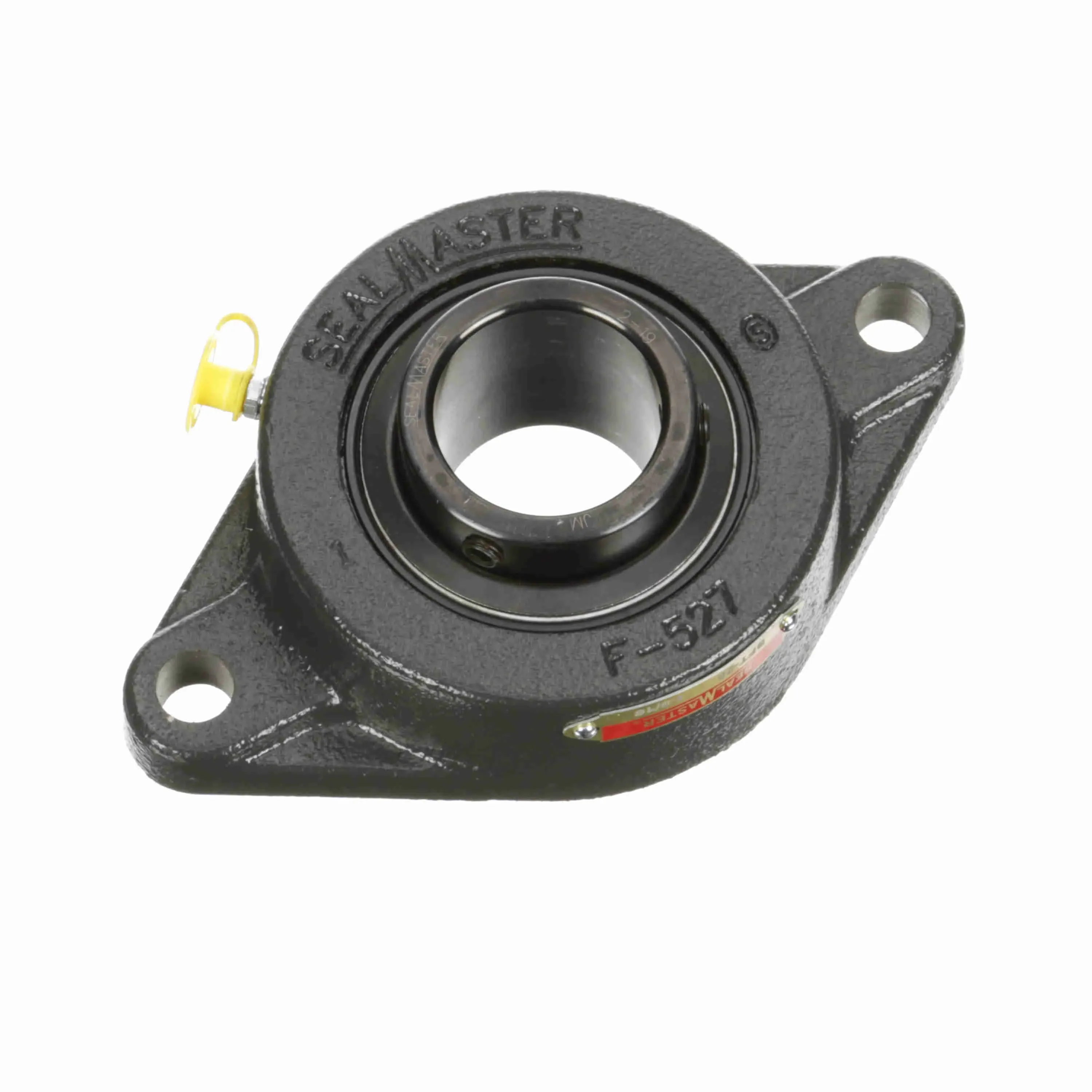

SEALMASTER SFT-25 700553 Flange Bearing, 2 Bolt, 1-9/16 Inch Bore, Cast Iron, Set Screws, 6-7/8 Inch Length
Item: BF9FHWModel: SFT-25Cross Ref: 44A564 / 700553
7 In Stock
Ships within 2 days via
10.00% off
€733.79 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Ability To Relubricate | Yes |
| Back Side To Center Width | 0.828" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bearing Material Grade | Grade 52100 |
| Bolt Size | 1/2" |
| Bolt Spacing | 5.6363" |
| Bore Dia. | 1 9/16" |
| Bore Diameter | 1 9/16" |
| Bore Shape | Straight |
| Bore Type | Cylindrical |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Closure | Double Sealed |
| Dynamic Load Capacity | 7340 lbs. |
| End Cap | No |
| Expansion Type | Fixed |
| Features | Available With High Temperature Bearings, Wide Inner Ring Bearing |
| Fixed Vs. Expansion | Fixed |
| Flange Thickness | 9/16" |
| Foot Height | 14/25" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Two Bolt |
| Htc | 8483.20.4040 |
| Included Bearing | UC208-25 |
| Includes | Set Screw |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.063" |
| Insert | 2-19 |
| Length Through Bore | 1.938" |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 4150 RPM |
| Maximum Speed | 4150 RPM |
| Maximum Temperature | 220°F |
| Minimum Temperature | -20°F |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Mount Hole Center-to-center Height | 5 21/32" |
| Mount Hole Center-to-center Length | 5 21/32" |
| Mount Hole Size | 33/64" |
| Mounting Bolt Size | 7/16" |
| Number Of Mount Holes | 2 |
| Outer Ring Land Profile | Standard |
| Overall Height | 2.016" |
| Overall Length | 6 3/4" |
| Overall Width | 4.13" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Rolling Element Rows | 1 |
| Seal Material | Felt |
| Seal Type | Felt Labyrinth Seal |
| Self Lubricating Bearing | No |
| Shaft Locking Type | Set Screw |
| Size Code | 2-19 |
| Static Load Rating | 4467 lbs. |
| Static Radial Load Capacity | 4467 lbf. |
Shipping Info:
| Ship weight (kg) | 1.91 |
| Ship height (cm) | 5.23 |
| Ship length (cm) | 11.13 |
| Ship width (cm) | 17.3 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Housing Material | Number Of Mounting Holes | Price | |
|---|---|---|---|---|---|---|
 |
SFT-16 LT | - | Cast Iron | - | €177.69 | |
 |
SFT-14T | 7/8" | Cast Iron | - | €167.27 | |
 |
SFT-208C | - | - | - | €296.80 | |
 |
SFT-210C | - | - | - | €394.97 | |
 |
SFT-12C | 3/4" | Cast Iron | - | €112.50 | |
 |
SFT-208TMC CTY | - | - | - | €237.90 | |
|
SFT-25 BEV DRY | - | - | - | €268.53 |
