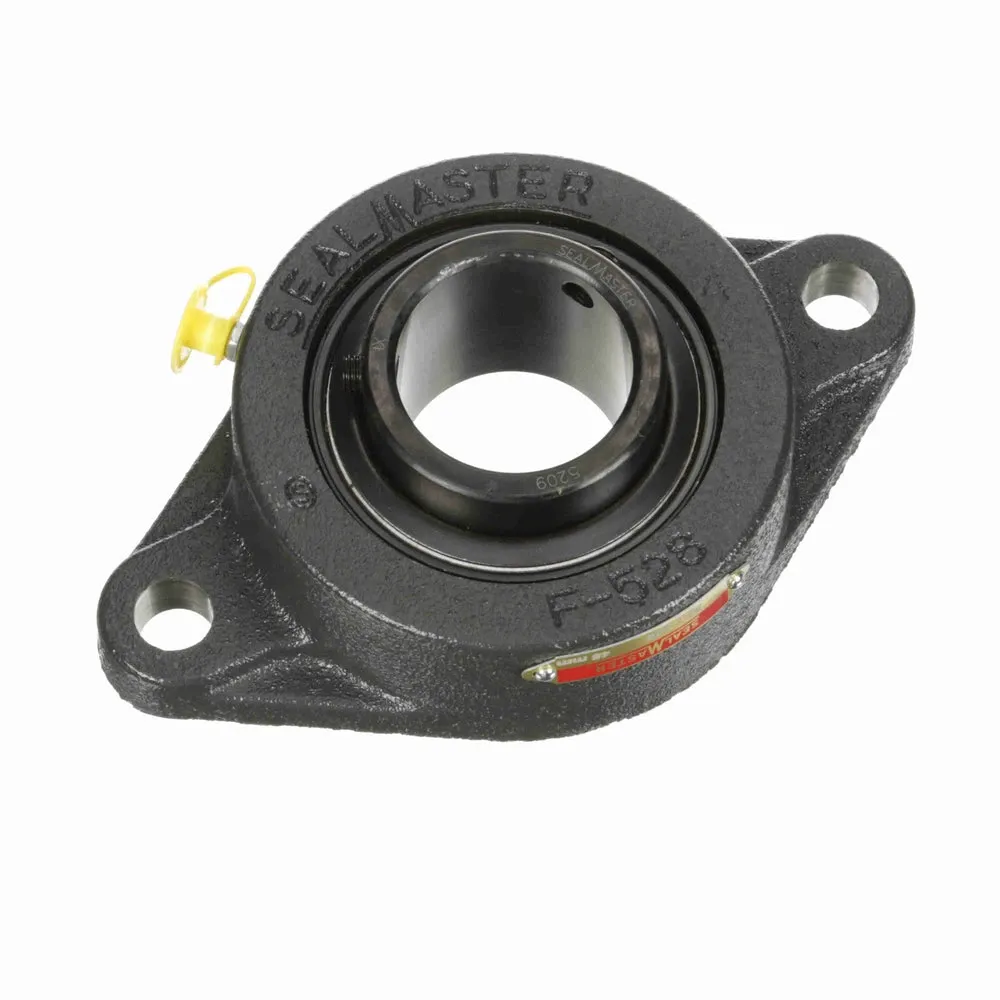

SEALMASTER SFT-209C Flange-Mount Ball Bearing Unit, 45 Mm Bore
Item: BE3LQAModel: SFT-209C
7 In Stock
Ships within 2 days via
€1,467.21 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Duty Series | Standard |
| Finish | Black Oxide |
| Fixed Vs. Expansion | Fixed |
| Grade | Grade 52100 |
| Grease Type | Goldplex-HP |
| Housing Base | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two Bolt Flange |
| Inner Race Heat Treat Method | Zone Hardened |
| Locking Device | Setscrew |
| Max. Operating Temp. | 220°F |
| No. Links/ft. | 0 |
| Product Type | Sealmaster Gold-Standard |
| Retainer Type | Metal Land Riding |
| Rolling Element | Ball |
| Seal Flinger | No |
| Seal Type | Contact Seal |
| Shaft Size | 45 mm |
Shipping Info:
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 11.76 |
| Ship width (cm) | 5.87 |
Product Variants
| Product | Model | Bore Dia. | Max. Operating Temp. | Housing Type | Rolling Element | Overall Width | Overall Height | Bearing Insert Material | Dynamic Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SFT-16 LT | - | 220°F | Two Bolt Flange | Ball | - | - | - | - | €177.69 | |
 |
SFT-14T | 7/8" | 220°F | Flange, Two Bolt | Ball Bearing | 2 3/4" | 1.498" | Steel | 2801 lbs. | €167.27 | |
 |
SFT-12C | 3/4" | 220°F | Flange, Two Bolt | Ball Bearing | 2.38" | 1.281" | Steel | 2611 lbs. | €112.50 | |
 |
SFT-31 BEV CRY | - | - | - | - | - | - | - | - | €235.97 | |
 |
SFT-20 | 1 1/4" | 220°F | Flange, Two Bolt | Ball Bearing | 3 3/4" | 1 3/4" | Steel | 5782 lbs. | €449.06 | |
 |
SFT-8 | 1/2" | 220°F | - | - | 2.31" | 1.281" | Steel | 2611 lbs. | €345.08 | |
 |
SFT-207 DRT | - | 220°F | Two Bolt Flange | Ball | - | - | - | - | €329.92 |
