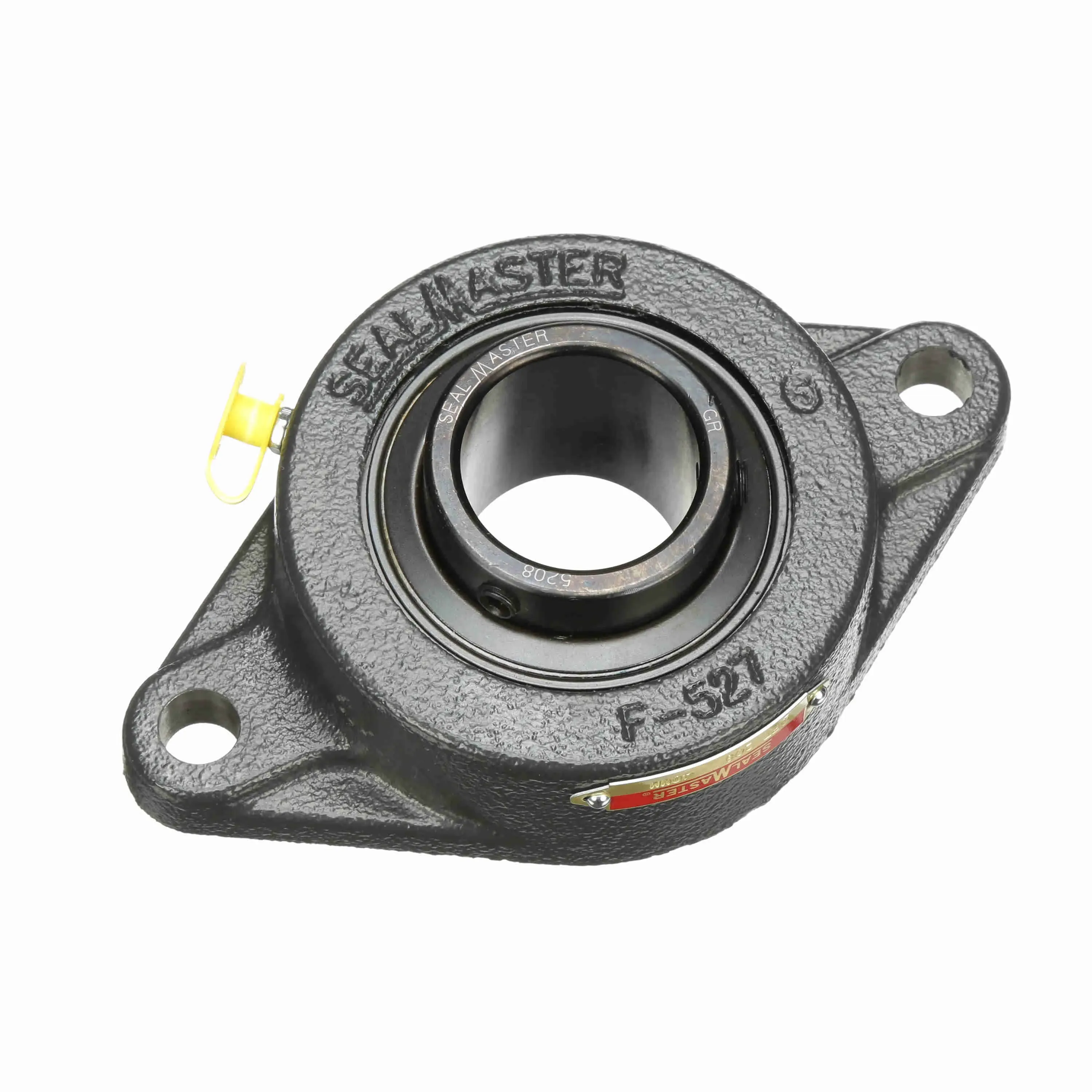

SEALMASTER SFT-208 710022 Flange-Mount Ball Bearing Unit, 40 Mm Bore

Item: BD8VLNModel: SFT-208Cross Ref: 710022

7 In Stock

Ships within 2 days via

€410.19 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Ability To Relubricate	Yes
Bearing Insert Finish	Black Oxide
Bearing Insert Material	Steel
Bearing Insert Material Grade	52100
Bearing Insert Type	Standard Duty
Bearing Type	Standard Duty
Bolt Size	1/2"
Bore Dia.	40 mm
Bore Shape	Straight
Cage Type	Land Riding Retainer
Duty Series	Standard
Dynamic Load Capacity	7340 lbs.
End Cap	No
Finish	Black Oxide
Fixed Vs. Expansion	Fixed
Foot Height	14/25"
Grade	Grade 52100
Grease Fitting Thread Size	1/4"-28
Grease Type	Goldplex-HP
Height	6.81"
Housing Base	Solid
Housing Coating	Powder Coated
Housing Color	Black
Housing Construction	One Piece
Housing Material	Cast Iron
Housing Style	Flange Block
Htc	8483.20.4040
Inner Race Heat Treat Method	Zone Hardened
Inner Ring Outside Dia.	2.083"
Inner Ring Outside Diameter	2.083"
Inner-race Heat-treat Method	Zone Hardened
Insert	5208
Length	4.38"
Length Through Bore	1.938"
Locking Device	Setscrew
Lubricant	Lithium Complex NLGI 2 Grease
Lubrication Type	Lithium Complex NLGI 2 Grease
Max. Operating Temperature	220°F
Max. Speed	4150 RPM
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Overall Height	2.016"
Overall Length	6 3/4"
Overall Width	4.13"
Pilot Configuration	No Pilot
Product Type	Sealmaster Gold-Standard
Radial Clearance	Standard
Retainer Type	Metal Land Riding
Seal Flinger	Yes
Shaft Locking Type	Set Screw
Shaft Size	40 mm
Size Code	2-19
Static Load Rating	4467 lbs.
Width	2.06"

Shipping Info:

Ship weight (kg)	1.87
Ship height (cm)	5.23
Ship length (cm)	11.13
Ship width (cm)	17.3
Country of Origin	MX

Product Variants

Model	Bore Dia.	Housing Material	Number Of Mounting Holes	Price
SFT-16 LT	-	Cast Iron	-	€177.69
SFT-14T	7/8"	Cast Iron	-	€167.27
SFT-208C	-	-	-	€296.80
SFT-210C	-	-	-	€394.97
SFT-12C	3/4"	Cast Iron	-	€112.50
SFT-208TMC CTY	-	-	-	€237.90
SFT-25 BEV DRY	-	-	-	€268.53
