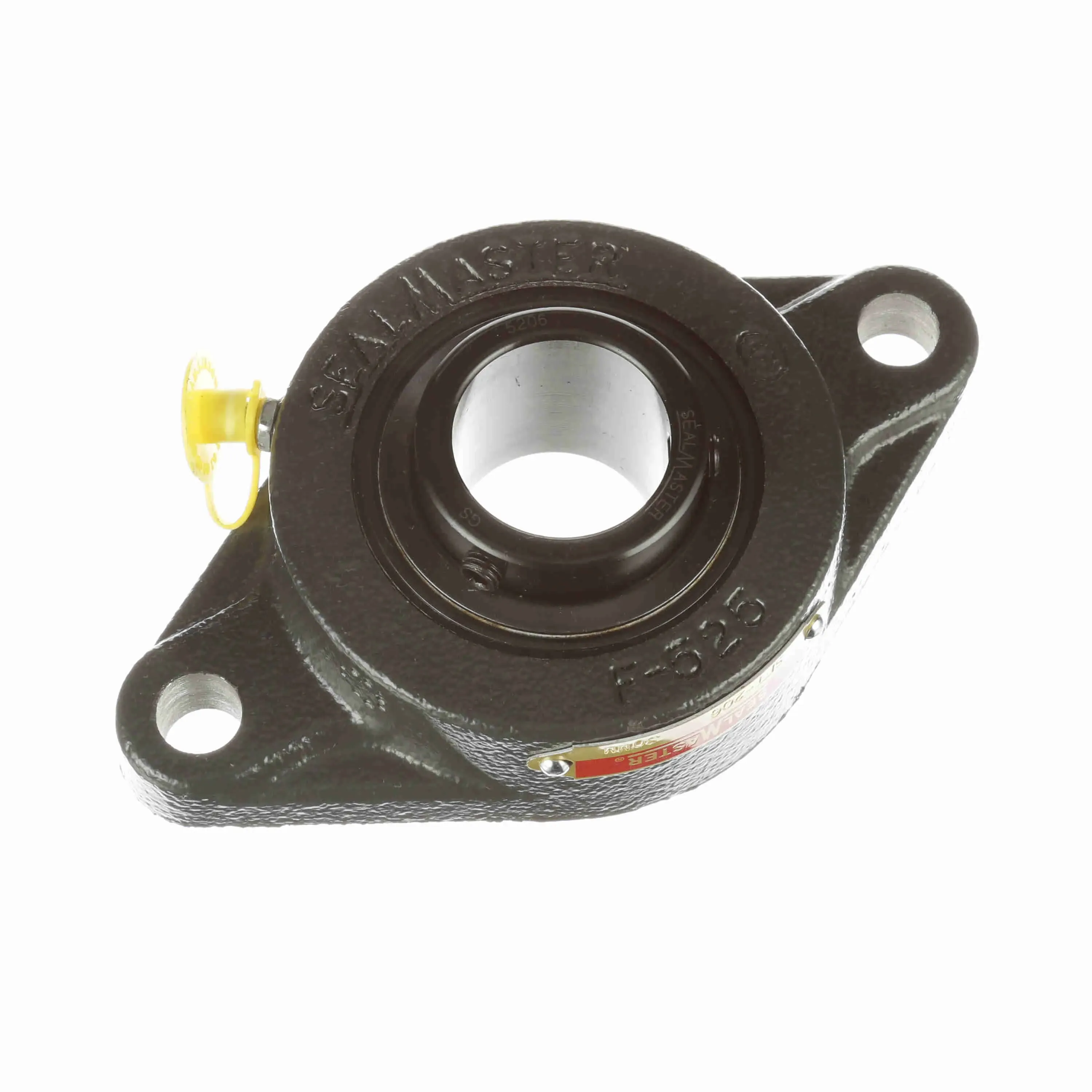

SEALMASTER SFT-206 710020 Flange Bearing, 2 Bolt, 30mm Dia, Setscrew Locking, Cast Iron Housing, Standard Felt Seal
Item: BD8HUCModel: SFT-206Cross Ref: 710020
7 In Stock
Ships within 2 days via
€320.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flange Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bearing Type | Standard Duty |
| Bolt Size | 7/16" |
| Bore Dia. | 30 mm |
| Bore Shape | Straight |
| Cage Type | Land Riding Retainer |
| Duty Series | Standard |
| Dynamic Load Capacity | 4381 lbs. |
| End Cap | No |
| Finish | Black Oxide |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.53" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/4"-28 |
| Grease Type | Goldplex-HP |
| Height | 5 3/4" |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 5206 |
| Inside Ring Outside Dia. | 1.587" |
| Length | 1.69" |
| Length Through Bore | 1 1/2" |
| Locking Device | Setscrew |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 5450 RPM |
| Misalignment Type | Static Only |
| No. Links/ft. | 0 |
| Outer Ring Land Profile | Standard |
| Overall Height | 1.563" |
| Overall Width | 3 1/4" |
| Pilot Configuration | No Pilot |
| Product Type | Sealmaster Gold-Standard |
| Radial Clearance | Standard |
| Retainer Type | Metal Land Riding |
| Seal Flinger | Yes |
| Setscrew Torque | 85 lbs.-in. |
| Shaft Locking Type | Set Screw |
| Shaft Size | 30 mm |
| Size Code | 2-13 |
| Static Load Rating | 2567 lbs. |
| Width | 3 1/2" |
Shipping Info:
| Ship weight (kg) | 0.97 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 4.29 |
| Ship width (cm) | 14.61 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Max. Operating Temp. | Housing Type | Rolling Element | Overall Width | Overall Height | Bearing Insert Material | Dynamic Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SFT-16 LT | - | 220°F | Two Bolt Flange | Ball | - | - | - | - | €177.69 | |
 |
SFT-14T | 7/8" | 220°F | Flange, Two Bolt | Ball Bearing | 2 3/4" | 1.498" | Steel | 2801 lbs. | €167.27 | |
 |
SFT-12C | 3/4" | 220°F | Flange, Two Bolt | Ball Bearing | 2.38" | 1.281" | Steel | 2611 lbs. | €112.50 | |
 |
SFT-31 BEV CRY | - | - | - | - | - | - | - | - | €235.97 | |
 |
SFT-20 | 1 1/4" | 220°F | Flange, Two Bolt | Ball Bearing | 3 3/4" | 1 3/4" | Steel | 5782 lbs. | €449.06 | |
 |
SFT-8 | 1/2" | 220°F | - | - | 2.31" | 1.281" | Steel | 2611 lbs. | €345.08 | |
 |
SFT-207 DRT | - | 220°F | Two Bolt Flange | Ball | - | - | - | - | €329.92 |
