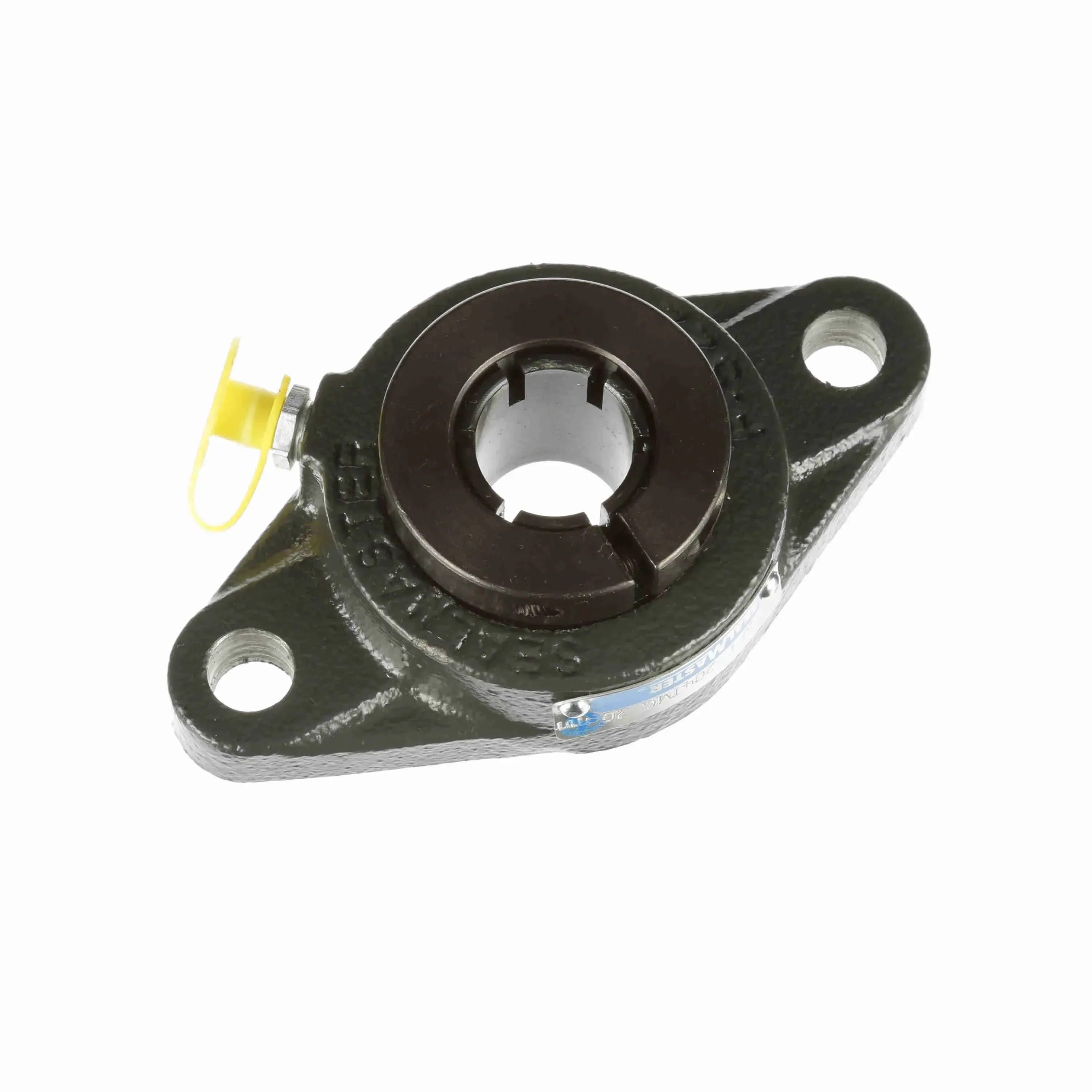

SEALMASTER SFT-204TMC 704131 Flange-Mount Ball Bearing Unit, 20 Mm Bore
Get it by Tuesday, Sep 1
€131.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 3/8" |
| Bolt Spacing | 3.531" |
| Bore Dia. | 20 mm |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 2611 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 11/25" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Two Bolt |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 5204TMC |
| Inside Ring Outside Dia. | 1.192" |
| Length Through Bore | 1 7/25" |
| Locking Collar Outside Dia. | 1 3/4" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 6450 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 1.39" |
| Overall Length | 4.41" |
| Overall Width | 2.38" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact Seal |
| Shaft Locking Type | Concentric |
| Size Code | 2-012 |
| Static Load Rating | 1444 lbs. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0907 cPS |
| Vibration Frequency Outer Ring Defect | 0.0593 cPS |
| Vibration Frequency Roller Spin | 0.0381 cPS |
Shipping Info:
| Ship weight (kg) | 0.59 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 10.01 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Max. Operating Temp. | Housing Type | Rolling Element | Overall Width | Overall Height | Housing Color | Foot Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SFT-16 LT | - | 220°F | Two Bolt Flange | Ball | - | - | - | - | €177.69 | |
 |
SFT-14T | 7/8" | 220°F | Flange, Two Bolt | Ball Bearing | 2 3/4" | 1.498" | Black | 0.53" | €167.27 | |
 |
SFT-12C | 3/4" | 220°F | Flange, Two Bolt | Ball Bearing | 2.38" | 1.281" | Black | 11/25" | €112.50 | |
 |
SFT-31 BEV CRY | - | - | - | - | - | - | - | - | €235.97 | |
 |
SFT-20 | 1 1/4" | 220°F | Flange, Two Bolt | Ball Bearing | 3 3/4" | 1 3/4" | Black | 14/25" | €449.06 | |
 |
SFT-8 | 1/2" | 220°F | - | - | 2.31" | 1.281" | Black | 11/25" | €345.08 | |
 |
SFT-207 DRT | - | 220°F | Two Bolt Flange | Ball | - | - | - | - | €329.92 |
