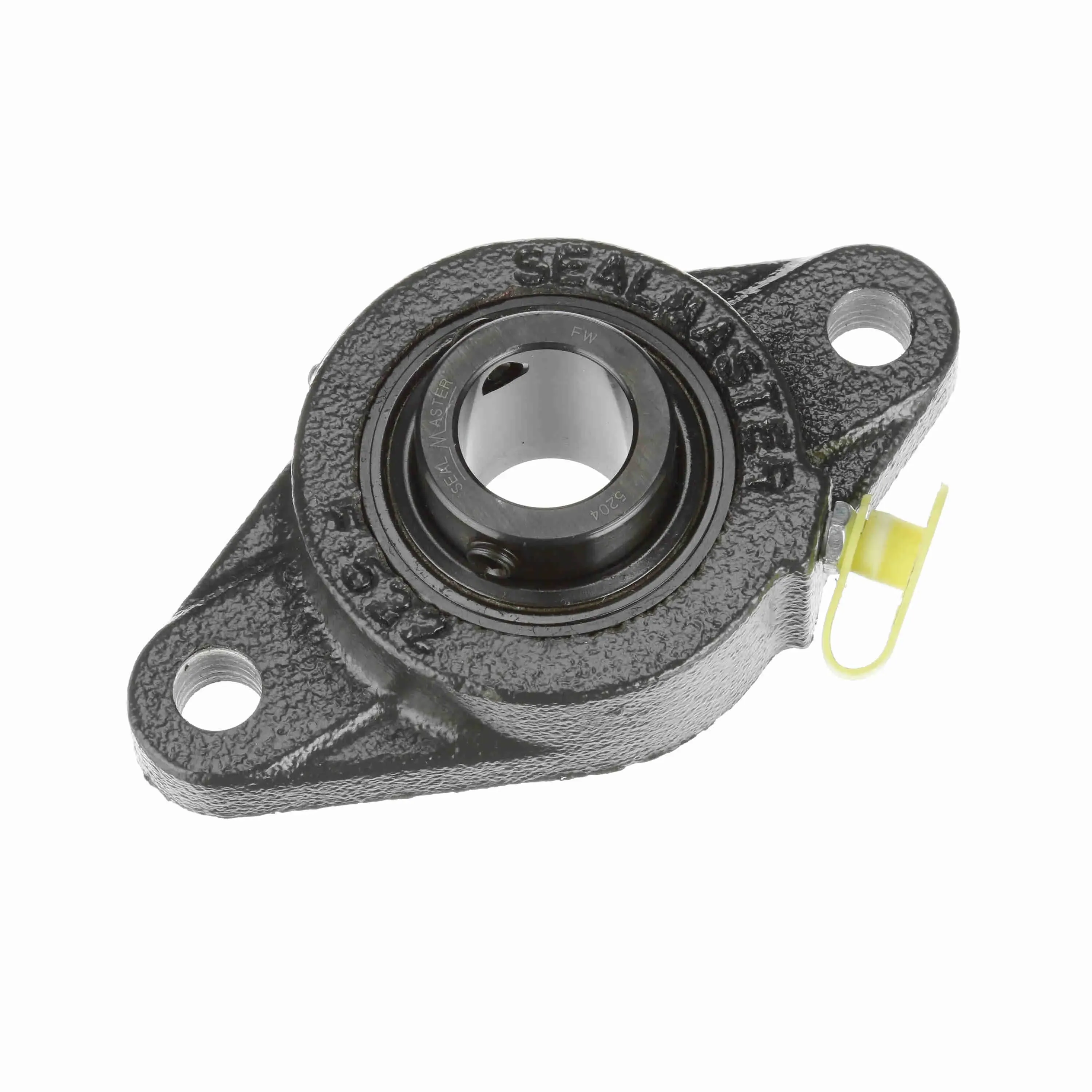

SEALMASTER SFT-204 710018 Flange Bearing, 2 Bolt, 20mm Dia, Setscrew Locking, Cast Iron Housing, Standard Felt Seal
Get it by Wednesday, Feb 25
€245.20 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bearing Type | Standard Duty |
| Bolt Spacing | 3.531" |
| Bore Dia. | 20 mm |
| Bore Shape | Straight |
| Cage Type | Land Riding Retainer |
| Duty Series | Standard |
| Dynamic Load Capacity | 2611 lbs. |
| End Cap | No |
| Finish | Black Oxide |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 11/25" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/4"-28 |
| Grease Type | Goldplex-HP |
| Height | 3.94" |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Dia. | 1.192" |
| Inner Ring Outside Diameter | 1.192" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert | 5204 |
| Length | 4" |
| Length Through Bore | 1.219" |
| Locking Device | Setscrew |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 7300 RPM |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 1.281" |
| Overall Length | 4.41" |
| Overall Width | 2.38" |
| Pilot Configuration | No Pilot |
| Product Type | Sealmaster Gold-Standard |
| Radial Clearance | Standard |
| Retainer Type | Metal Land Riding |
| Seal Flinger | Yes |
| Shaft Locking Type | Set Screw |
| Shaft Size | 20 mm |
| Size Code | 2-012 |
| Static Load Rating | 1444 lbs. |
| Width | 1 1/2" |
Shipping Info:
| Ship weight (kg) | 0.49 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 10.01 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Housing Material | Number Of Mounting Holes | Price | |
|---|---|---|---|---|---|---|
 |
SFT-32 | 2" | Cast Iron | 2 | €727.41 | |
 |
SFT-10 | 5/8" | Cast Iron | - | €279.61 | |
 |
SFT-10 DRT | - | Cast Iron | - | €816.80 | |
 |
SFT-10 HT | 5/8" | Cast Iron | - | €185.53 | |
 |
SFT-10 HTA | - | Cast Iron | - | €840.66 | |
 |
SFT-10 RM | - | - | - | €111.24 | |
 |
SFT-10 XLO | - | Cast Iron | - | €731.88 |
