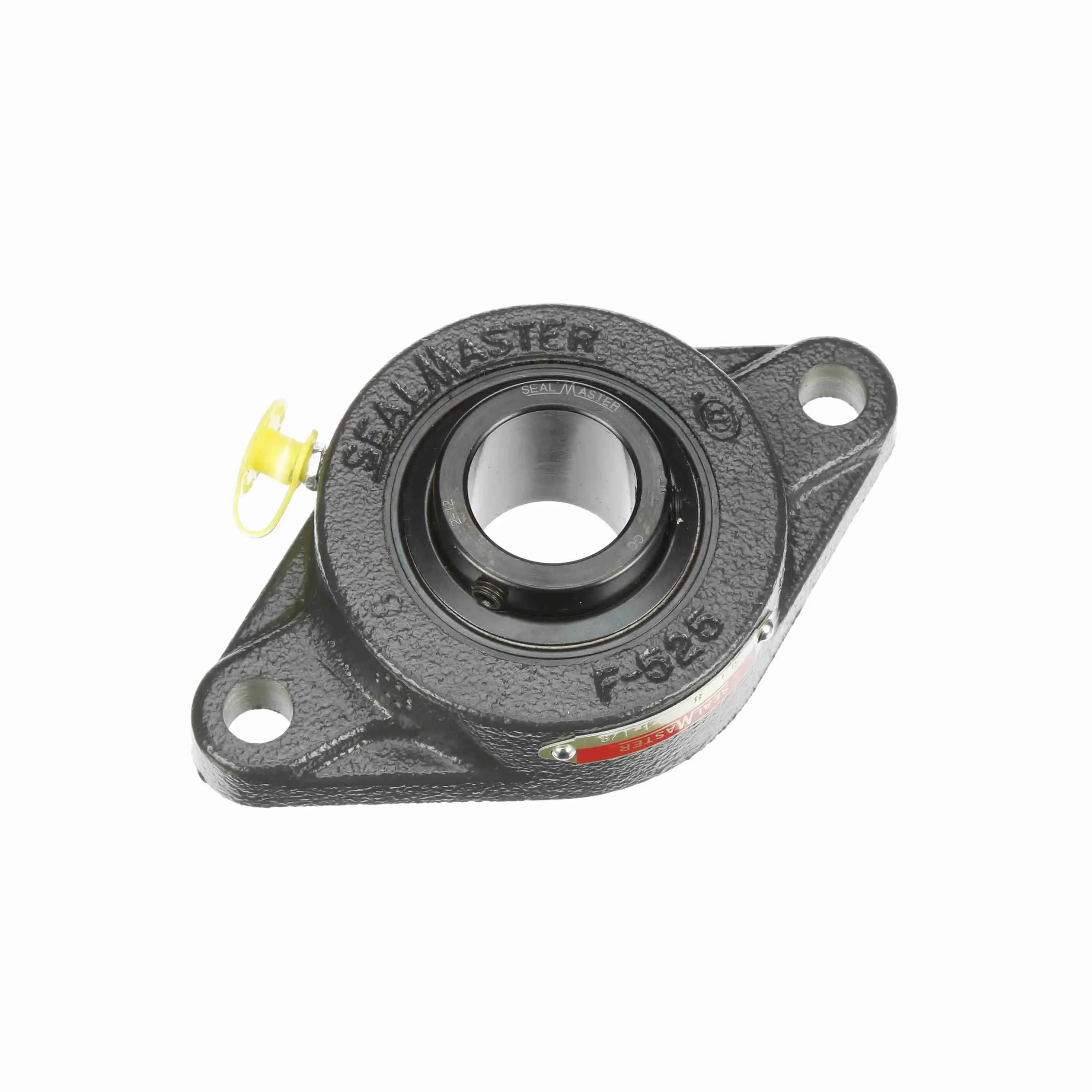

SEALMASTER SFT-18 700545 Flange Bearing, 2 Bolt, 1-1/8 Inch Bore, Cast Iron, Set Screws, 5-13/16 Inch Length
Get it by Tuesday, Feb 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€358.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Back Side To Center Width | 0.703" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | Grade 52100 |
| Bearing Type | Standard Duty |
| Bolt Size | 7/16" |
| Bolt Spacing | 4.594" |
| Bore Dia. | 1 1/8" |
| Bore Diameter | 1 1/8" |
| Bore Shape | Straight |
| Bore Type | Cylindrical |
| Cage Type | Land Riding Retainer |
| Closure | Double Sealed |
| Duty Series | Standard |
| Dynamic Load Capacity | 4381 lbf. |
| End Cap | No |
| Expansion Type | Fixed |
| Features | Available With High Temperature Bearings, Wide Inner Ring Bearing |
| Fixed Vs. Expansion | Fixed |
| Flange Thickness | 17/32" |
| Foot Height | 0.53" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/4"-28 |
| Height | 5 3/4" |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Htc | 8483.20.4040 |
| Included Bearing | UC206-18 |
| Includes | Set Screw |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Dia. | 1.587" |
| Inner Ring Outside Diameter | 1.587" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert | 2"-12 |
| Length | 3 1/2" |
| Length Through Bore | 1 1/2" |
| Locking Device | Setscrew |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 5450 RPM |
| Maximum Speed | 5450 RPM |
| Maximum Temperature | 220°F |
| Minimum Temperature | -20°F |
| Misalignment Type | Static Only |
| Mount Hole Center-to-center Height | 4 19/32" |
| Mount Hole Center-to-center Length | 4 19/32" |
| Mount Hole Size | 15/32" |
| Mounting Bolt Size | 3/8" |
| Number Of Mount Holes | 2 |
| Outer Ring Land Profile | Standard |
| Overall Height | 3 5/32" |
| Overall Width | 1 19/32" |
| Pilot Configuration | No Pilot |
| Product Type | Sealmaster Gold-Standard |
| Radial Clearance | Standard |
| Rolling Element Rows | 1 |
| Seal Material | Felt |
| Self Lubricating Bearing | No |
| Setscrew Torque | 85 lbs.-in. |
| Shaft Locking Type | Set Screws |
| Shaft Size | 1 1/8" |
| Size Code | 2-13 |
| Static Load Rating | 2567 lbs. |
| Static Radial Load Capacity | 2567 lbf. |
| Width | 1.69" |
Shipping Info:
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 4.29 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 14.61 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Housing Material | Number Of Mounting Holes | Price | |
|---|---|---|---|---|---|---|
 |
SFT-32 | 2" | Cast Iron | 2 | €727.41 | |
 |
SFT-10 | 5/8" | Cast Iron | - | €279.61 | |
 |
SFT-10 DRT | - | Cast Iron | - | €816.80 | |
 |
SFT-10 HT | 5/8" | Cast Iron | - | €185.53 | |
 |
SFT-10 HTA | - | Cast Iron | - | €840.66 | |
 |
SFT-10 RM | - | - | - | €111.24 | |
 |
SFT-10 XLO | - | Cast Iron | - | €731.88 |
