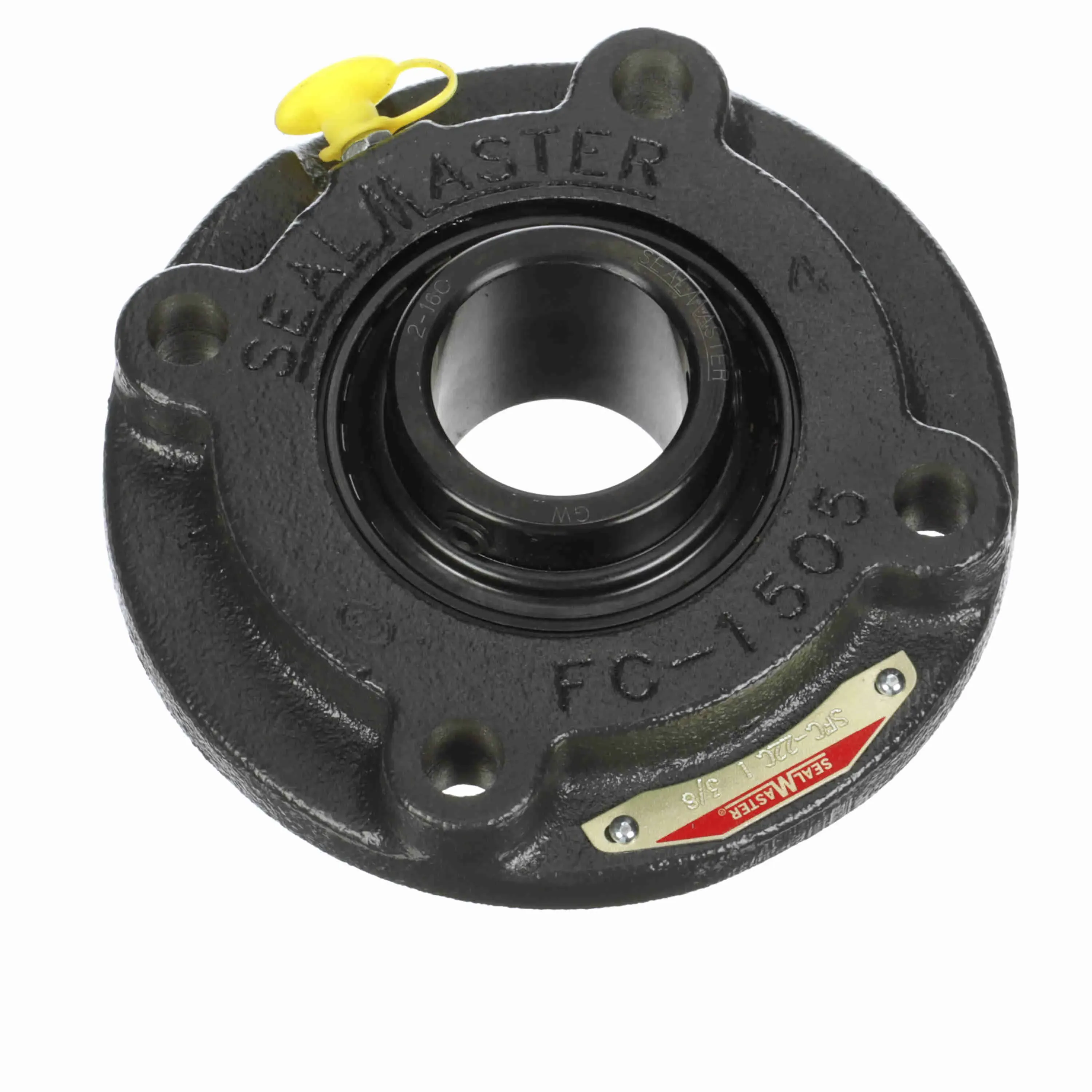

SEALMASTER SFC-22C 703496 Flange-Mount Ball Bearing Unit, 1-3/8 Inch Bore
Get it by Thursday, Dec 18
€313.89 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Circle | 4 1/8" |
| Bolt Size | 3/8" |
| Bore Dia. | 1 3/8" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 5782 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.38" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Outside Diameter | 5" |
| Housing Style | Flange Block |
| Housing Type | Flange, Piloted |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 1.859" |
| Insert | 2-16C SFB |
| Length Through Bore | 1.688" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 4650 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 1.69" |
| Overall Length | 5" |
| Overall Width | 5" |
| Pilot Configuration | Piloted |
| Pilot Depth | 0.38" |
| Pilot Diameter | 3 3/8" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact Seal |
| Shaft Locking Type | Set Screw |
| Size Code | 2-17 |
| Static Load Rating | 3493 lbs. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0905 cPS |
| Vibration Frequency Outer Ring Defect | 0.0595 cPS |
| Vibration Frequency Roller Spin | 0.0386 cPS |
Shipping Info:
| Ship weight (kg) | 1.64 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 12.7 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Housing Material | Price | |
|---|---|---|---|---|---|
 |
SFC-32R | 2" | Cast Iron | €453.22 | |
 |
SFC-24 | 1 1/2" | Cast Iron | €287.73 | |
 |
SFC-32C CR | - | - | €728.13 | |
 |
SFC-211TMC | 55 mm | Cast Iron | €383.35 | |
 |
SFC-24TC | 1 1/2" | Cast Iron | €293.67 | |
 |
SFC-19 | 1 3/16" | Cast Iron | €225.78 | |
 |
SFC-24C | 1 1/2" | Cast Iron | €287.73 |
