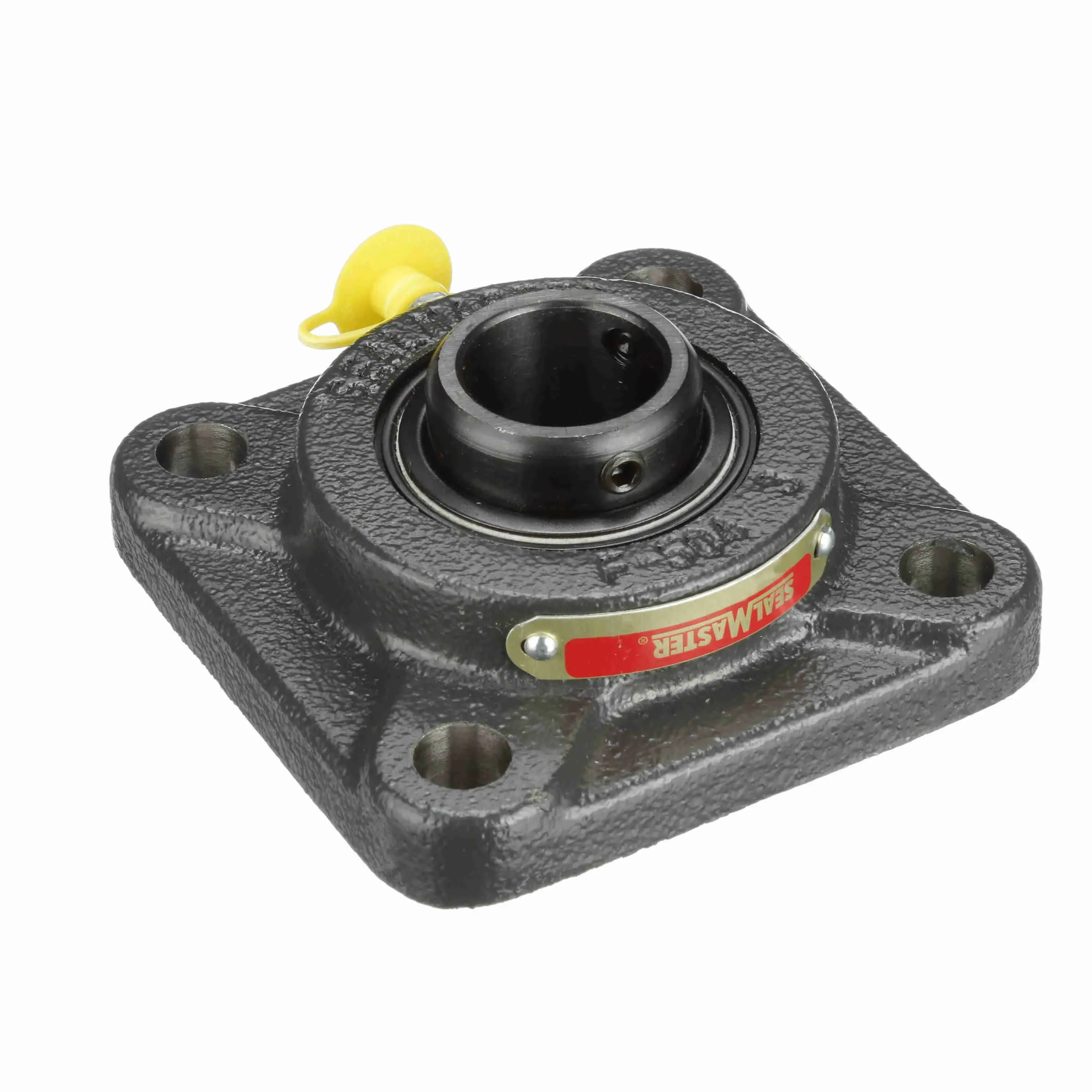

SEALMASTER SF-29 700454 Flange Bearing, 4 Bolt, 1 13/16 Inch Bore, Cast Iron, Set Screws, 5 5/8 Inch Length
Item: BD9AGEModel: SF-29Cross Ref: 44A532 / 700454
7 In Stock
Ships within 2 days via
10.00% off
€1,842.01 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bearing Material Grade | Grade 52100 |
| Bolt Size | 9/16" |
| Bolt Spacing | 4 3/8" |
| Bore Dia. | 1 13/16" |
| Bore Diameter | 1 13/16" |
| Bore Shape | Straight |
| Bore Type | Cylindrical |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Closure | Double Sealed |
| Dynamic Load Capacity | 7889 lbs. |
| End Cap | No |
| Expansion Type | Fixed |
| Fixed Vs. Expansion | Fixed |
| Flange Thickness | 9/16" |
| Foot Height | 14/25" |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Backside Inner Diameter | 4" |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Four Bolt |
| Htc | 8483.20.4040 |
| Includes | Set Screw |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.469" |
| Insert | 2-113 |
| Length Through Bore | 2.027" |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 3550 RPM |
| Maximum Speed | 3550 RPM |
| Maximum Temperature | 220°F |
| Minimum Temperature | -20°F |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Mount Hole Center-to-center Height | 4 3/8" |
| Mount Hole Center-to-center Length | 4 3/8" |
| Mounting Bolt Size | 9/16" |
| Number Of Mount Holes | 4 |
| Outer Ring Land Profile | Standard |
| Overall Height | 2.156" |
| Overall Length | 5.63" |
| Overall Width | 5.63" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Rolling Element Rows | 1 |
| Seal Material | Felt |
| Seal Type | Felt Labyrinth Seal |
| Self Lubricating Bearing | No |
| Shaft Locking Type | Set Screw |
| Size Code | 2-115 |
| Static Load Rating | 5216 lbs. |
| Static Radial Load Capacity | 5216 lbf. |
Shipping Info:
| Ship weight (kg) | 2.93 |
| Ship height (cm) | 16.51 |
| Ship length (cm) | 17.15 |
| Ship width (cm) | 6.2 |
| Country of Origin | US |
