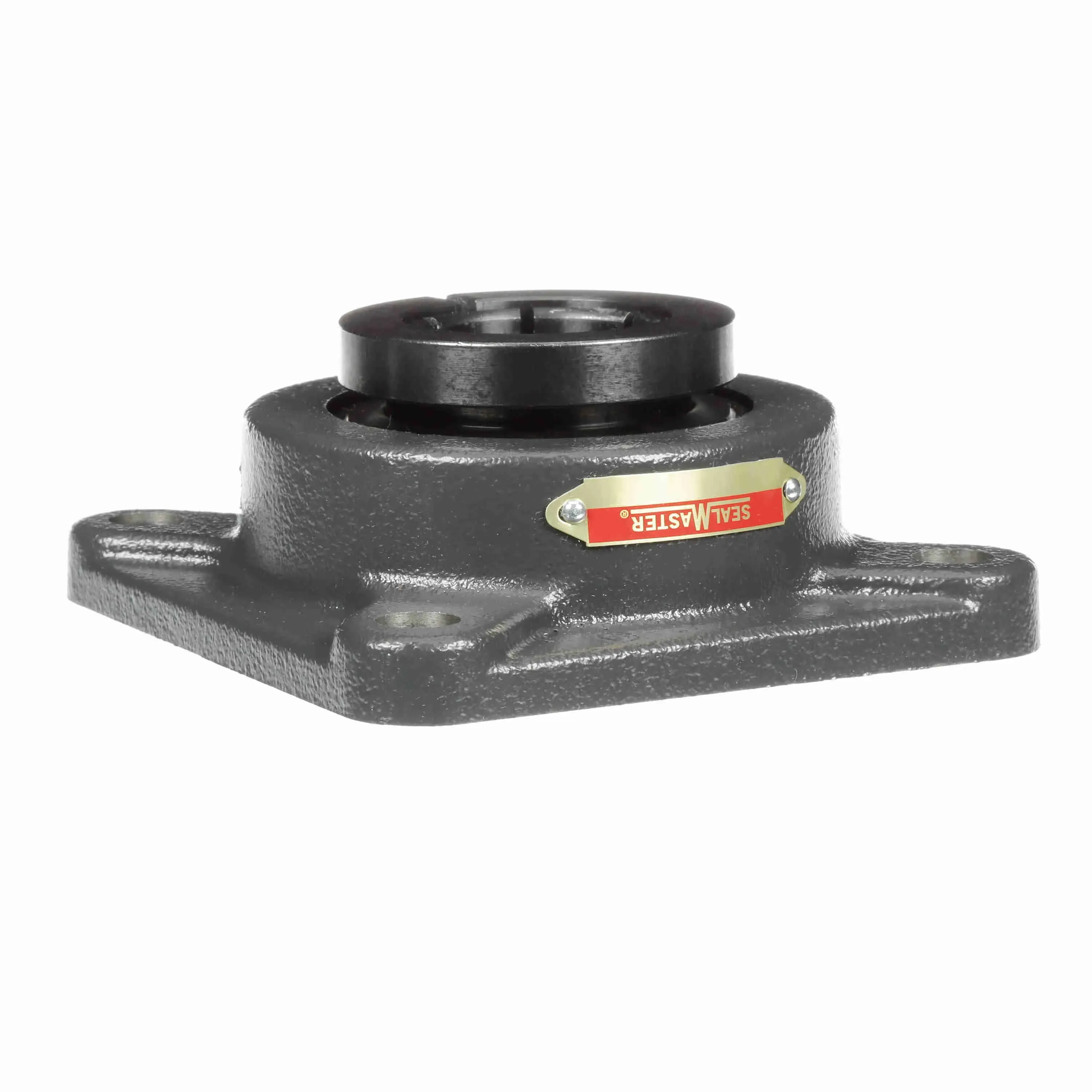

SEALMASTER SF-24T CXU 718815 Flange Bearing, 4 Bolt, 1.5 Inch Dia, Skwezloc Locking, Standard Felt Seal
Get it by Monday, Dec 22
€230.91 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 1/2" |
| Bolt Spacing | 4" |
| Bore Dia. | 1 1/2" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 7340 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 14/25" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Backside Inner Diameter | 3 1/2" |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Four Bolt |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.07" |
| Insert | 2-18T CXU |
| Length Through Bore | 2" |
| Locking Collar Outside Diameter | 2 3/4" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 5850 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | Air Handling Housing Fit, Noise Tested |
| Outer Ring Land Profile | Standard |
| Overall Height | 2 5/64" |
| Overall Length | 5.13" |
| Overall Width | 5.13" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Shaft Locking Type | Concentric |
| Size Code | 2-19 |
| Static Load Rating | 4467 lbs. |
Shipping Info:
| Ship weight (kg) | 2.42 |
| Ship height (cm) | 5.41 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 13.97 |
| Country of Origin | US |
